Bently Nevada 128229-01 | Proximitor Seismic I/O Module Core Category
Dynamic Product Introduction
Interfacing complex networks of vibration, position, and seismic sensors with safety-critical machinery protection racks requires robust terminal hardware that maintains signal purity under heavy plant conditions. The Bently Nevada 128229-01 operates as a specialized 4-channel Proximitor Seismic I/O module featuring internal terminations, designed to mount directly into the rear rack of a 3500/42M monitoring system. Unlike generic terminal blocks that can introduce line noise or loose connections under continuous thermal expansion cycles, this industrial I/O card secures transducer wiring cleanly while ensuring optimal signal conditioning for radial vibration, thrust position, and acceleration loops.
Moving beyond older legacy I/O iterations, this module delivers seamless compatibility with standard 3500 front-board monitor layers. Field maintenance logs indicate that swapping out damaged or degraded I/O cards instantly resolves erratic channel readings and restores stable communication across critical turbine and compressor monitoring assets.

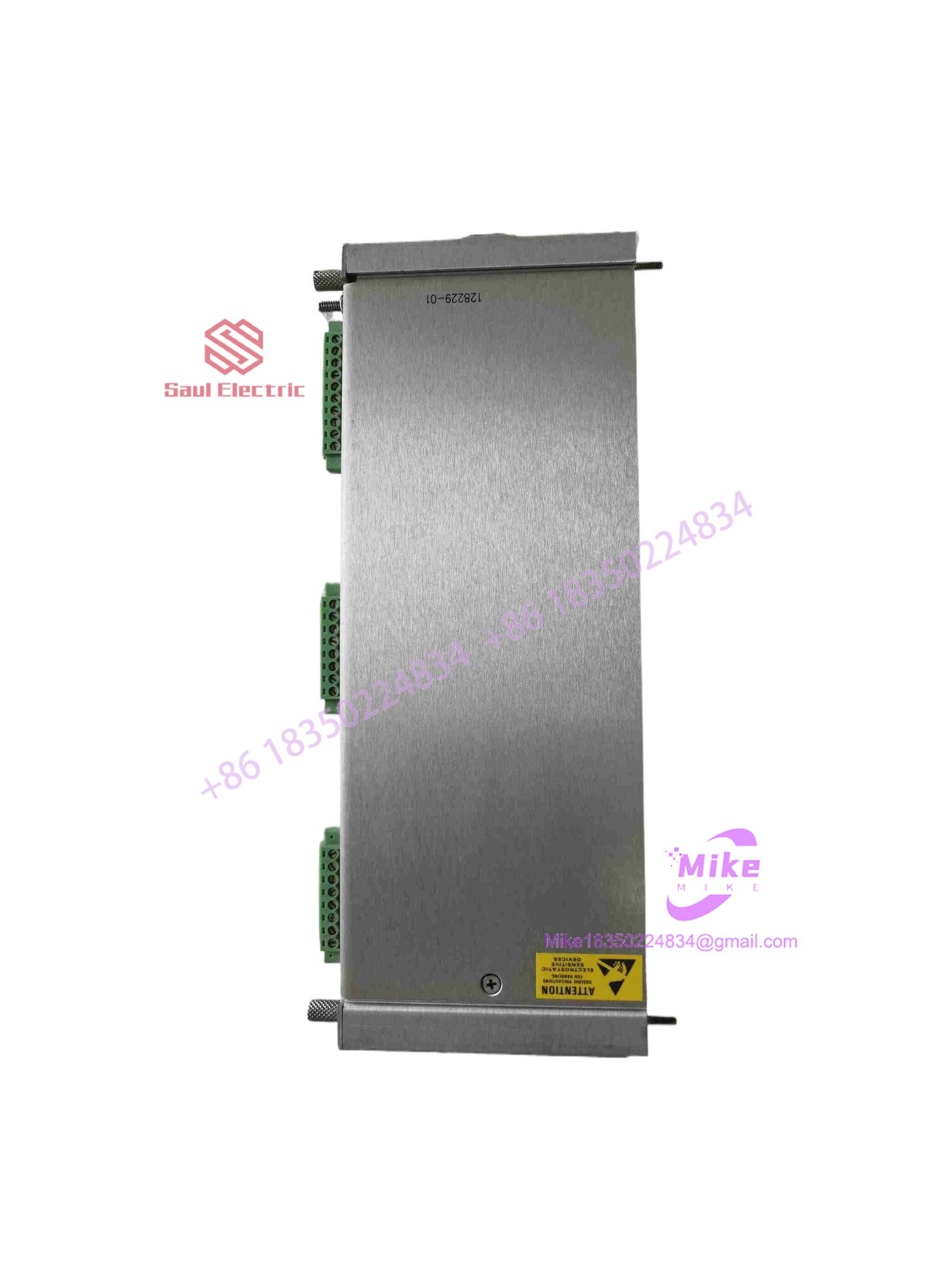

128229-01
Key Technical Specifications
- Module Architecture: Proximitor / Seismic Input/Output Module with internal terminations
- System Compatibility: Bently Nevada 3500 Series Machinery Protection System (paired with 3500/42M monitors)
- Channel Capacity: 4 independent sensor channels
- Input Signal Range: -10V DC to +10V DC
- Supported Transducers: Proximity probes, accelerometers, and velocity/seismic transducers
- Mounting Configuration: Rear rack slot profile for 3500 backplane integration
- Operating Temperature Range: -30^\circC to +65^\circC (-22^\circF to +150^\circF)
- Weight: ~0.20 to 0.39 kg (0.44 to 0.86 lbs)
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement I/O modules on active machinery protection racks requires an uncompromising verification protocol to guarantee loop continuity and signal isolation.
- Inbound Verification: Incoming modules are audited against original Bently Nevada manufacturing lots. Rear terminal blocks, connector pins, and solder traces are inspected under optical magnification for pin bending, corrosion, or thermal degradation.
- Live Simulation: The I/O module is mounted onto a dedicated 3500 test backplane matched with a calibrated 3500/42M monitor front card.
- Diagnostics: Technicians inject simulated transducer signals across all four channels, verifying voltage scaling accuracy, common-mode noise rejection, and zero insertion loss across a continuous thermal soak cycle.
- Final Prep: Once electrical logs clear baseline standards, terminal barriers are cleaned, protective covers are attached, and the module is sealed inside an anti-static moisture-barrier shield.
The Field Engineer’s Pitfall Guide
❗ Landing Field Wires Without De-energizing the Rack: Tightening terminal screws on active field loops while the 3500 rack backplane is powered can cause accidental short circuits, blowing internal module fuses or triggering false machinery trips. (I’ve seen plants experience unnecessary shutdowns because a technician skipped isolation steps.) Always drop local power before servicing wiring.
❗ Over-Torquing Terminal Block Screws: Cranking down too hard on the internal termination screws can shear fine wire strands or crack the terminal block housing, leading to intermittent open circuits during machine vibration. Always use a calibrated torque driver.
❗ Mixing Up Channel Polarities: Reversing signal and common wires during sensor termination introduces severe phase errors and common-mode noise, corrupting vibration spectrum analysis. Always double-check loop drawings prior to landing wires.
Intent-Driven FAQ
Will swapping this 128229-01 I/O module require reprogramming the 3500 rack?
No. Because the 128229-01 is a passive/conditioning hardware I/O layer that routes signals to the front-layer 3500/42M monitor card, configuration settings stored in the rack’s TTM/computer software remain intact upon replacement.
Can this I/O module be replaced while the turbomachinery is running?
Hot-swapping rear I/O modules while the associated machinery protection channels are online will result in a loss of sensor signal, triggering channel faults and potentially driving an unwanted system alarm or trip. Coordination with operations is mandatory.
What causes channels on this module to register persistent “Not OK” status?
A “Not OK” status typically points to a severed field cable, an open proximity probe power supply loop, loose terminal screws on the 128229-01 block, or an internal fault on the paired front monitor card. Checking loop resistance isolates the issue.
Is the 128229-01 compatible with external termination (ET) racks?
No. The 128229-01 model is specifically engineered with internal terminations directly on the module block. Systems utilizing external termination blocks require a different designated I/O part number variant.
What kind of warranty accompanies surplus or refurbished units?
Reputable industrial suppliers typically back tested surplus or refurbished Bently Nevada hardware with a standard 1-to-2 year replacement warranty, supported by a bench test report confirming channel signal continuity.
