Bently Nevada 133819-02 | 3500/61 RTD/TC Non-Isolated I/O Module Core Category
Dynamic Product Introduction
Monitoring critical bearing, fluid, and metal temperatures across heavy turbomachinery requires precise signal conditioning hardware that can withstand harsh industrial environments. The Bently Nevada 133819-02 operates as a specialized 6-channel RTD/TC non-isolated I/O module featuring internal terminations, designed to mount directly into the rear rack of a 3500/61 temperature monitoring system. Unlike generic signal blocks that can drift or pick up common-mode errors under thermal stress, this industrial I/O card secures sensor field wiring neatly while delivering reliable data streams to the front-layer monitor.
Moving beyond basic monitoring layouts, this module integrates seamlessly with the 3500/61 architecture, which provides dedicated recorder outputs for each of its six channels. Field maintenance records confirm that swapping out damaged or degraded temperature I/O cards instantly resolves erratic channel readings and restores stable thermal tracking across critical asset protection loops.

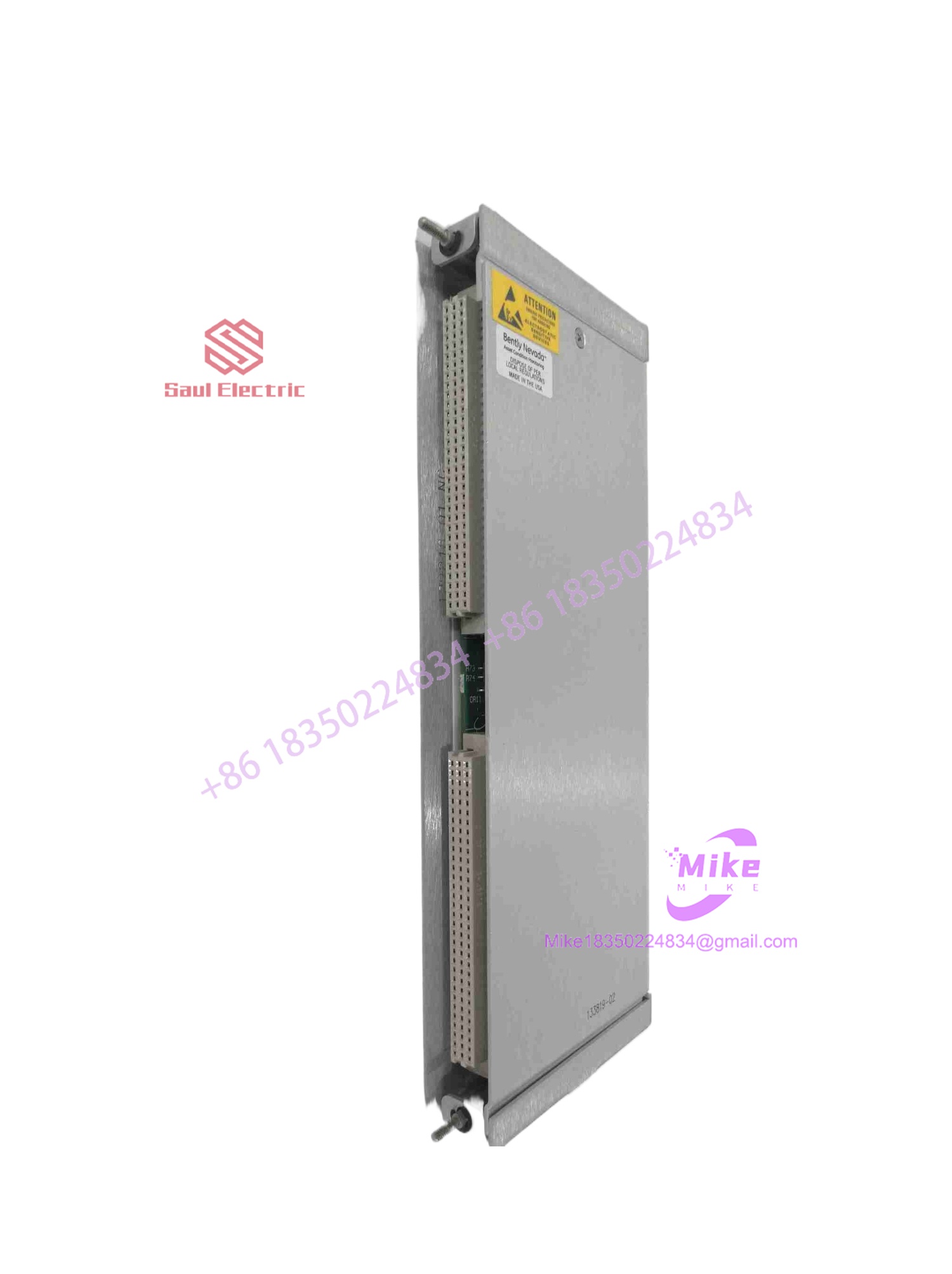

133819-02
Key Technical Specifications
- Module Architecture: RTD / Thermocouple Non-Isolated Input/Output Module (3500/61 Series)
- System Compatibility: Bently Nevada 3500 Series Machinery Protection System (paired with 3500/61 monitors)
- Channel Capacity: 6 independent temperature monitoring channels
- Supported Inputs: Resistance Temperature Detectors (RTD) and Thermocouples (TC)
- Termination Type: Internal Terminations (direct wire landing on module block)
- Isolation Class: Non-Isolated variant
- Mounting Configuration: Rear rack slot profile for 3500 backplane integration
- Weight: ~0.40 to 0.45 kg (0.88 to 1.0 lbs)
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement temperature I/O modules on active machinery protection racks requires an uncompromising verification protocol to guarantee loop continuity and temperature scaling accuracy.
- Inbound Verification: Incoming modules are audited against original Bently Nevada manufacturing lots. Rear terminal screws, cold-junction compensation pathways, and backplane connector pins are inspected under optical magnification for pin bending, corrosion, or thermal wear.
- Live Simulation: The I/O module is mounted onto a dedicated 3500 test backplane matched with a calibrated 3500/61 front monitor card.
- Diagnostics: Technicians inject simulated millivolt (TC) and resistance (RTD) signals across all six channels, verifying linearization accuracy, trip setpoint response, and zero signal drift across a continuous thermal soak cycle.
- Final Prep: Once electrical logs clear baseline standards, terminal blocks are cleaned, protective covers are attached, and the module is sealed inside an anti-static moisture-barrier shield.
The Field Engineer’s Pitfall Guide
❗ Landing Field Sensor Wires Under Power: Tightening terminal screws on active thermocouple or RTD loops while the 3500 rack backplane is powered can introduce transient spikes or ground loops, triggering false temperature alarms or machine trips. (I’ve seen plants experience unnecessary shutdowns because a technician skipped isolation steps.) Always drop local power before servicing wiring.
❗ Mixing Up RTD and Thermocouple Software Configurations: Physically wiring an RTD sensor into a channel while the 3500 rack software is configured for a Thermocouple (or vice versa) results in severe temperature reading errors and “Not OK” channel flags. Always verify configuration jumpers and software setup match the physical sensor type.
❗ Ignoring Ground Reference Rules on Non-Isolated Modules: Because the 133819-02 is a non-isolated I/O module, failing to maintain a consistent ground reference across sensor loops can introduce ground-loop currents that distort temperature measurements. Always ensure proper system grounding practices.
Intent-Driven FAQ
Will swapping this 133819-02 I/O module require reprogramming the 3500 rack?
No. Because the 133819-02 is a passive/conditioning hardware I/O layer that routes signals to the front-layer 3500/61 monitor card, configuration settings and alarm setpoints stored in the rack software remain intact upon replacement.
Can this temperature I/O module be replaced while the turbomachinery is running?
Hot-swapping rear I/O modules while associated temperature channels are online will result in a loss of sensor signal, causing channel faults and potentially driving an unwanted system alarm or trip if voting logic is affected. Close coordination with operations is mandatory.
What causes channels on this module to register persistent “Not OK” status?
A “Not OK” status typically points to a broken sensor wire, an open RTD element, loose terminal screws on the 133819-02 block, or a mismatch between the software configuration and the physical input type. Checking loop resistance isolates the issue.
Is the 133819-02 compatible with External Termination (ET) blocks?
No. The 133819-02 model is specifically engineered with internal terminations directly on the module block. Systems utilizing external termination assemblies require a different designated I/O part number variant.
What kind of warranty accompanies surplus or refurbished units?
Reputable industrial suppliers typically back tested surplus or refurbished Bently Nevada hardware with a standard 1-to-2 year replacement warranty, supported by a bench test report confirming temperature measurement health.
