Bently Nevada 133323-01 | 3500/92 Modbus RS485 I/O Module Core Category
Dynamic Product Introduction
Integrating critical machinery vibration data and rack status conditions smoothly into distributed control systems (DCS) or supervisory PLCs requires robust, deterministic communication hardware. The Bently Nevada 133323-01 operates as a specialized Modbus RS485 I/O module engineered to mount on the rear rack of a 3500/92 Communication Gateway system. Unlike generic multi-port serial cards prone to communication timeouts under heavy polling loads, this industrial interface module provides reliable data translation using standard Modbus RTU protocols.
Moving beyond older 3500/90 legacy communication architectures, this 3500/92 I/O variant incorporates a flexible, configurable Modbus register utility that streamlines mapping operations. Field service records confirm that swapping in a verified replacement communication module resolves data transmission dropouts and restores stable plant network connectivity.

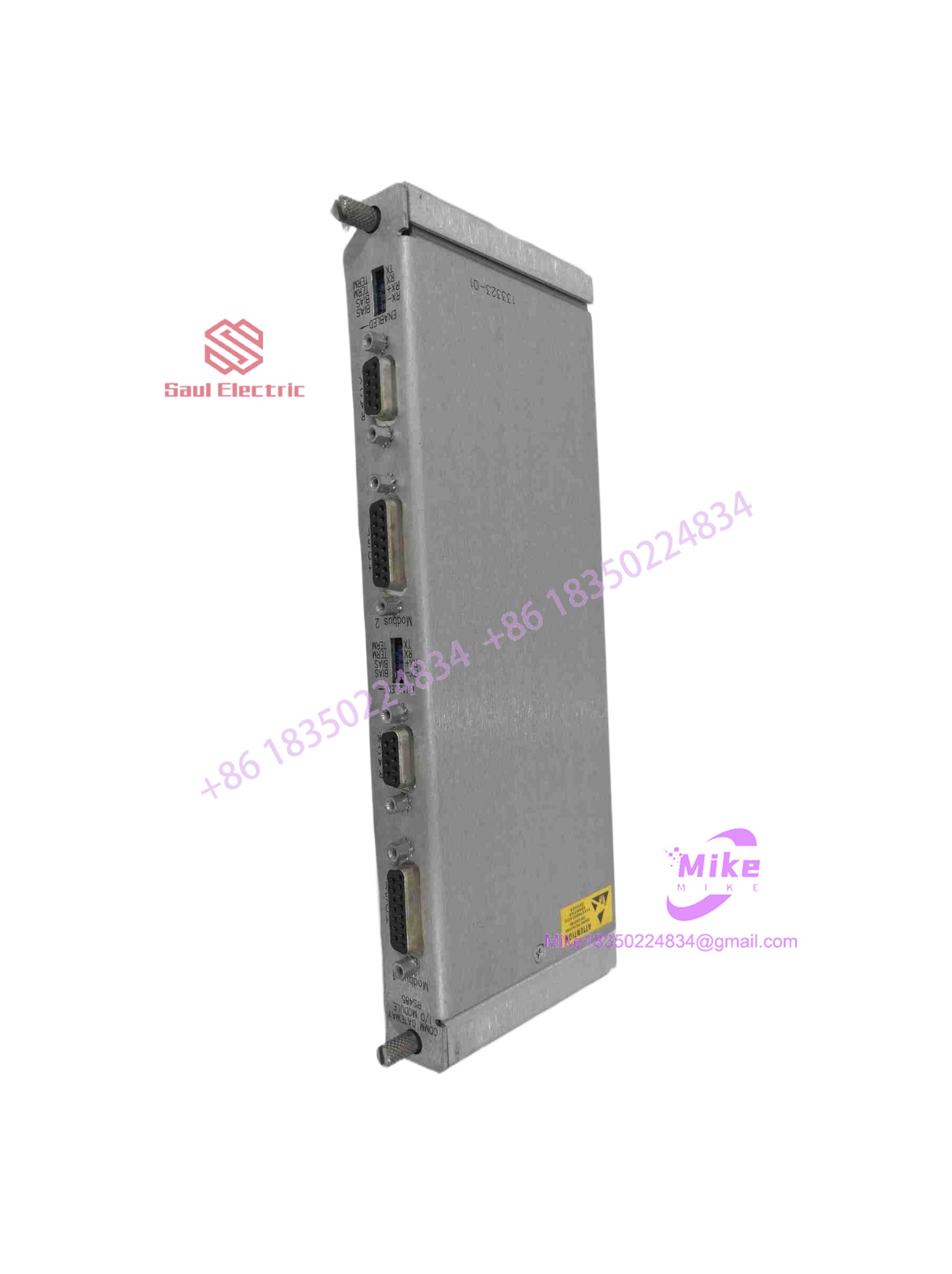

133323-01
Key Technical Specifications
- Module Architecture: Modbus RS485 Input/Output Communication Module (3500/92 Series)
- System Compatibility: Bently Nevada 3500 Series Machinery Protection Racks (paired with 3500/92 front module)
- Communication Protocols: Modbus RTU (via serial RS485 ports), proprietary Bently Nevada protocol support
- Power Consumption: ~5.6 to 7.7 Watts typical
- Mounting Configuration: Rear-rack slot profile for 3500 backplane integration
- Operating Temperature Range: 0^\circC to +65^\circC (32^\circF to 149^\circF)
- Storage Temperature Range: -40^\circC to +85^\circC (-40^\circF to +185^\circF)
- Weight: ~0.40 kg (0.88 lbs)
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement communication gateway modules on active industrial control networks requires an uncompromising bench verification protocol to ensure protocol integrity and zero packet corruption.
- Inbound Verification: Incoming modules are audited against original Bently Nevada manufacturing lots. Rear terminal blocks, communication transceiver chips, and backplane interface pins are inspected under optical magnification for pin pitting, corrosion, or thermal stress.
- Live Simulation: The I/O module is mounted onto a dedicated 3500 test backplane matched with a calibrated 3500/92 front communication gateway card.
- Diagnostics: Technicians inject multi-node Modbus polling commands across the RS485 serial ports, verifying register map response accuracy, baud rate stability, and error-free frame transmission across a 24-hour thermal soak cycle.
- Final Prep: Once communication logs clear baseline standards, terminal blocks are cleaned, protective covers are attached, and the unit is sealed inside an anti-static moisture-barrier shield.
The Field Engineer’s Pitfall Guide
❗ Hot-Wiring RS485 Communication Lines Under Power: Landing serial data cables onto active terminal blocks while the rack is energized can introduce voltage surges or ground loops that damage internal transceiver chips. (I’ve seen plants blow communication ports simply because technicians skipped isolating loop power.) Always drop local power before landing wires.
❗ Improper Biasing and Terminal Termination on Loops: Failing to install proper line termination resistors at the extreme ends of long cable runs causes signal reflections, data packet corruption, and random communication dropouts. Always verify network impedance and polarization settings.
❗ Incorrect Baud Rate or Node Address Configuration: Mismatching serial communication speeds or conflicting device address IDs between the 3500/92 gateway and the host DCS master will cause complete polling failure. Always cross-reference software configuration maps prior to commissioning.
Intent-Driven FAQ
Will swapping this 133323-01 I/O module require reprogramming the Modbus register map?
Because configuration mapping parameters are stored primarily in the front-layer 3500/92 gateway module or system software rather than the passive rear I/O card, direct hardware replacement typically retains communication logic, though verifying register readouts is recommended.
Can this communication I/O module be replaced while the system is running?
Hot-swapping communication gateway I/O cards on an active rack will temporarily interrupt data telemetry feeding the plant control system (DCS/PLC). While machinery protection functions on front monitor cards continue running locally, supervisory data tracking will drop out during the swap.
What causes the Modbus communication link to fail intermittently?
Intermittent link failures usually point to loose terminal screw connections, degraded cable shielding, excessive electrical noise from nearby variable frequency drives, or incorrect bus polarization. Checking loop continuity isolates the root cause.
Is the 133323-01 compatible with Ethernet TCP/IP networks directly?
No. The 133323-01 module is dedicated strictly to serial Modbus communications. Ethernet TCP/IP connectivity on the 3500/92 platform is handled via separate front-board RJ45 connection ports.
What kind of warranty accompanies surplus or refurbished units?
Reputable industrial suppliers typically back tested surplus or refurbished Bently Nevada communication modules with a standard 1-to-2 year replacement warranty, supported by an independent bench test report confirming serial data throughput health.
