Description
The 3500/40M 176449-01 is a Proximitor® displacement and vibration monitoring module produced by Bently Nevada, a part of the 3500 series monitoring system. Here is a detailed introduction to this product:
Product Overview
- Brand and Model: Bently Nevada, Model 3500/40M 176449-01.
- Product Type: Proximitor® displacement and vibration monitoring module.
- Design Purpose: Used for monitoring mechanical displacement and vibration in industrial equipment to prevent equipment failure and ensure production safety.

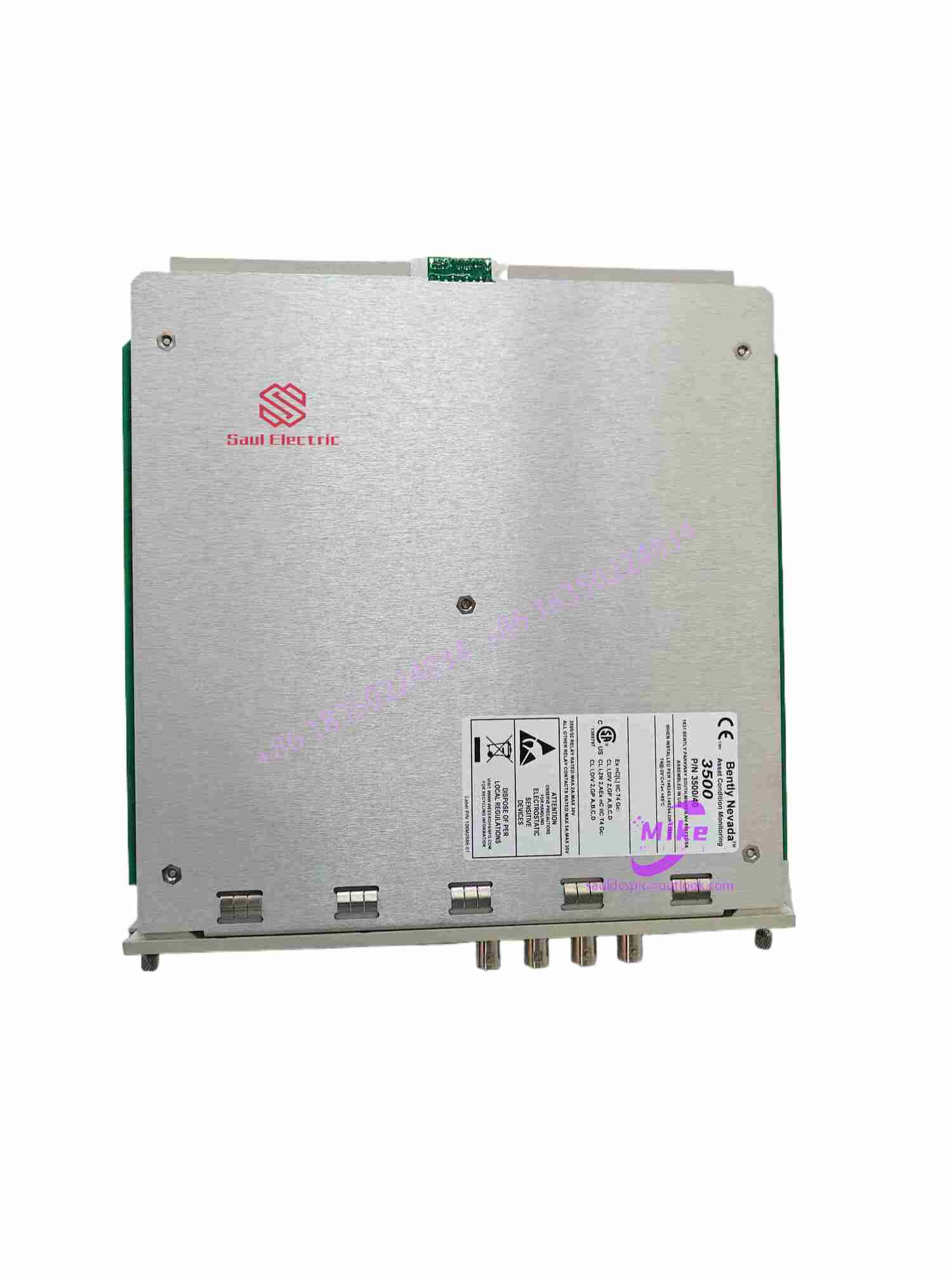

Bently nevada 3500/40m proximitor monitor pwa 176449-01
Product Features
- High-Precision Monitoring:
- Utilizes advanced sensor technology to provide high-precision monitoring of mechanical displacement and vibration.
- Suitable for monitoring critical equipment such as steam turbines, generators, compressors, and pumps.
- Multi-Parameter Monitoring:
- Capable of monitoring multiple parameters, including radial vibration, axial displacement, eccentricity, and differential expansion.
- Provides comprehensive assessment of equipment health status through multi-dimensional monitoring.
- Advanced Diagnostic Functions:
- Offers real-time monitoring and trend analysis of equipment operating status.
- Provides detailed fault diagnosis information to help operators and maintenance personnel promptly identify and address potential issues.
- Flexible Configuration:
- Supports user-defined alarm thresholds and logic to meet different application requirements.
- Allows for flexible configuration of input signals and processing methods to adapt to various monitoring scenarios.
- High Reliability and Stability:
- Adopts high-quality electronic components and rigorous manufacturing processes to ensure high reliability and stability.
- Designed to operate in harsh industrial environments with strong anti-interference capabilities.
- Modular Design:
- Features a modular design for easy maintenance and expansion.
- Supports hot-swapping of modules to minimize downtime during maintenance.
- Compatibility and Integration:
- Seamlessly integrates with the 3500 monitoring framework and supports integration with software platforms such as System 1® for comprehensive diagnostics.
- Provides multiple signal output options (e.g., 4-20mA analog, relay alarms) for compatibility with mainstream control systems.
Technical Specifications
- Model: 3500/40M 176449-01.
- Brand: Bently Nevada.
- Place of Origin: United States.
- Input Channels: 4-channel input for monitoring displacement, vibration, and other parameters.
- Output Options: Supports various signal output options for compatibility with different control systems.
- Accuracy: High measurement accuracy with full-scale ±0.33% accuracy and a maximum of ±1%.
- Operating Environment: Designed to operate in harsh industrial environments with strong anti-interference capabilities.
Application Scenarios
- Power Industry: Monitoring displacement and vibration in steam turbines and generators to ensure safe and stable operation.
- Petrochemical and Metallurgical Industries: Monitoring axial displacement and vibration in compressors and pumps to prevent equipment failure.
- Other Industrial Fields: Monitoring vibration and displacement in fans, gearboxes, and other rotating machinery for protection purposes.
