Bently Nevada 125840-01 | 3500 System High-Voltage AC PIM Quantified Spec

Description

Bently Nevada 125840-01 | 3500 System High-Voltage AC PIM Quantified Spec

Dynamic Product Introduction

Securing reliable high-voltage AC power distribution inside a 3500 machinery protection rack requires robust physical input handling to protect sensitive monitoring modules from grid spikes and transients. The Bently Nevada 125840-01 High-Voltage AC Power Input Module (PIM) meets this requirement by functioning as the foundational rear-rack interface for the 3500/15 power architecture.

Outperforming generic terminal blocks through integrated high-voltage fusing and dedicated transient filtering, this input module ensures clean power entry under harsh industrial conditions. Reliability engineers depend on its secure rear-chassis integration to maintain stable, uninterrupted power delivery to primary and redundant rack power supplies.

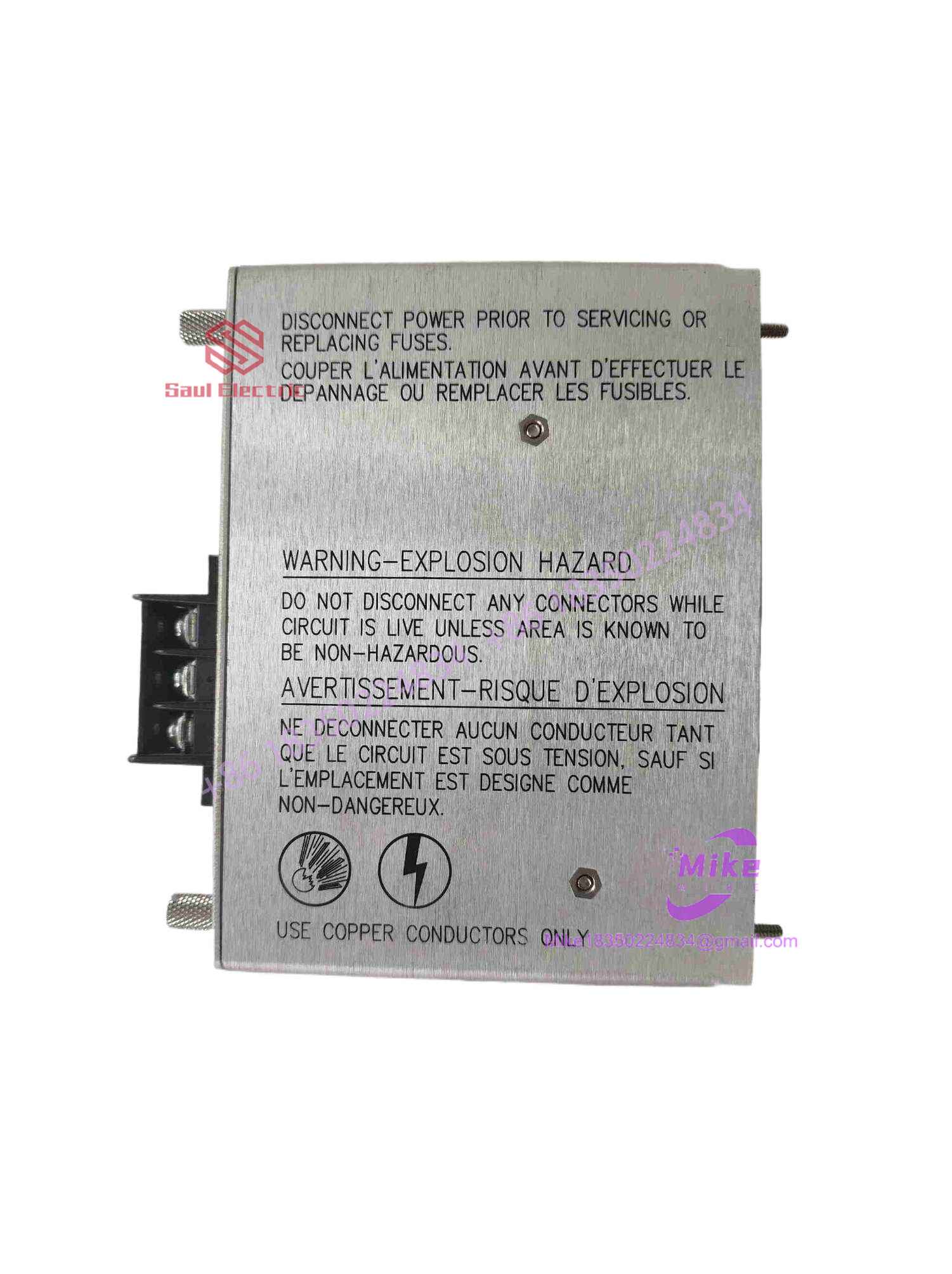

3500/15 125840-01

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Deploying power input modules into safety-critical machinery protection loops requires stringent verification protocols to ensure complete electrical safety:

• Inbound Verification: Incoming PIM units undergo microscopic inspection of rear terminal block screw integrity, fuse holder continuity, and isolation barrier clearances.
• Live Simulation: Modules are installed into a fully wired 3500 backplane test rig coupled with programmable AC line supplies.
• Diagnostics: Technicians execute high-voltage dielectric withstand tests and load checks over a thermal cycle, verifying proper line-to-neutral fusing behavior and clean power handoff to the front 3500/15 supply module.
• Final Prep: Terminal blocks are fitted with protective safety covers, and units are sealed in heavy-duty anti-static barrier packaging.

The Field Engineer’s Pitfall Guide

❗ AC vs. DC PIM Intermixing: Installing an AC Power Input Module (like the 125840-01) onto a rack wired for High-Voltage or Low-Voltage DC power configurations will cause immediate power failure or severe hardware damage when DC rails are applied to an AC-filtered input stage. (I’ve seen maintenance teams blow internal input components because a spare PIM was grabbed from stores without checking the voltage suffix label.)

❗ Overvoltage Fuse Tripping: Subjecting the module to unmitigated grid surges above rated thresholds will instantly open the internal PIM fuses; failing to identify the root cause of the surge before hot-swapping fuses will lead to repeat trips.

❗ Rear Chassis Misalignment: Forgetting to fully tighten the captive fasteners securing the 125840-01 to the 3500 backplane frame can cause intermittent high-resistance AC line contact under heavy plant vibration.

Intent-Driven FAQ

What is the exact function of the Bently Nevada 125840-01 module?

The 125840-01 is a High-Voltage AC Power Input Module (PIM) that mounts to the rear of the 3500 rack to accept, fuse, and route incoming high-voltage AC mains power to the front 3500/15 power supply module.

Can this AC PIM be used with a DC power supply module?

No, the 125840-01 is engineered specifically for High-Voltage AC power configurations and must be paired with a compatible AC-configured 3500/15 power supply.

Are these 125840-01 PIM units supplied factory-sealed or as surplus stock?

Inventory batches feature a mix of verified factory-sealed surplus (unused) and fully bench-tested secondary stock, with complete traceability documented on every order.

What happens if an overvoltage event occurs on the 125840-01 input?

The module is engineered with built-in input protection fuses that will safely open (blow) during an overvoltage event to isolate and protect the internal rack power supply circuitry.
