Reliance 805405-1R Replacement | 15A Field Power Module Availability
Architect’s Product Breakdown
The Reliance Electric 805405-1R acts as a rugged, panel-mounted single-phase field power module designed primarily for heavy industrial drive architectures and the AutoMax control ecosystem. Its core responsibility is supplying controlled excitation power to DC motor fields or high-capacity inductive loads requiring stable DC current under varying line conditions. The unit handles wide-range AC inputs from 120 up to 460 VAC, stepping them down via internal semi-controlled bridge structures to deliver up to 15 amps of continuous DC output.
Physical integration demands strict layout adherence regarding cabinet ventilation and clearance, as power semiconductor dissipation generates localized heat within the enclosure. Line reactors or optional isolation transformers are commonly deployed upstream to mitigate line transients and protect the internal non-reversing (S2) SCR bridge networks. Maintenance personnel must verify incoming phase voltages and check snubber network integrity prior to energizing to prevent premature component stress.

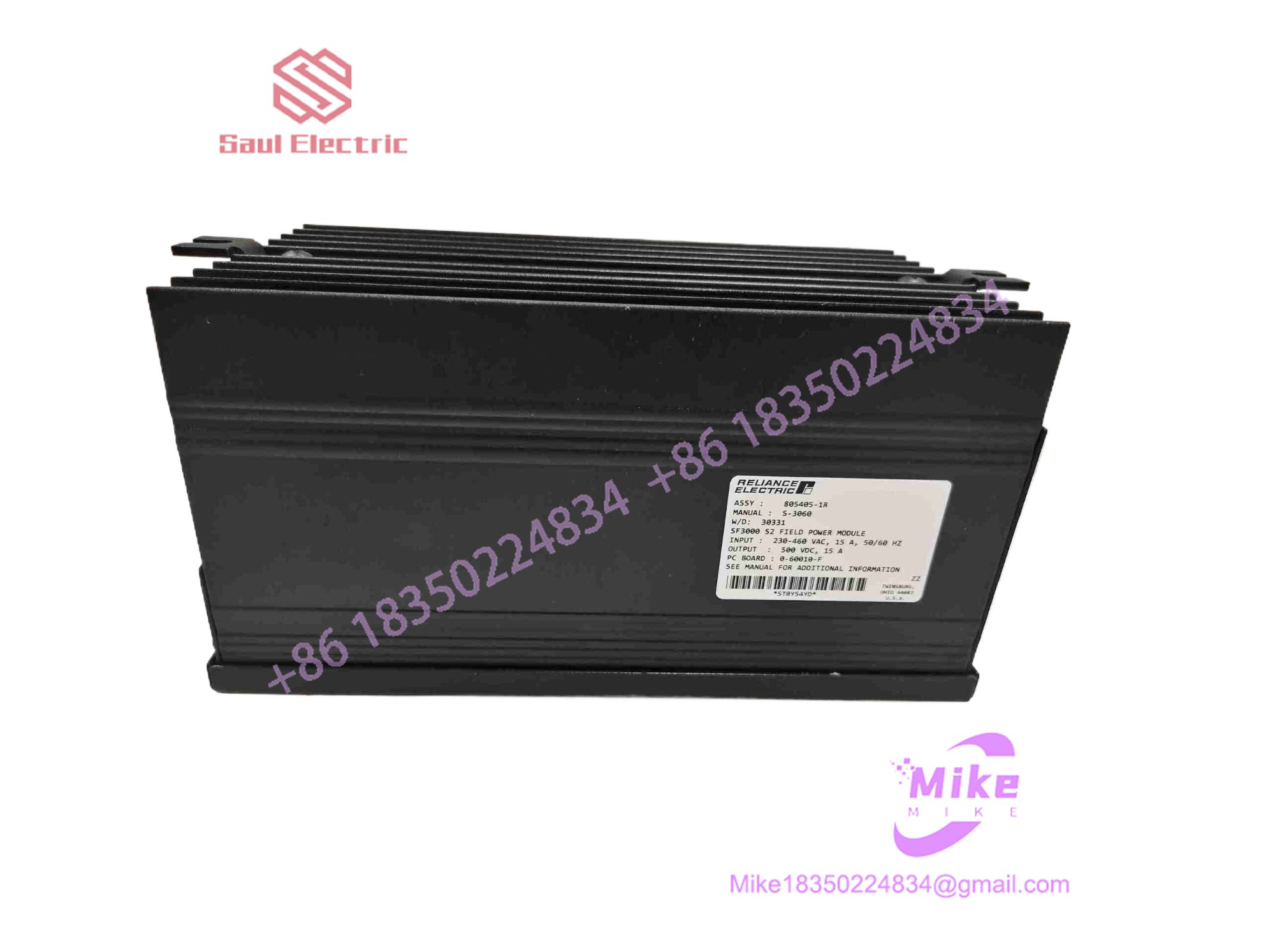

805405-1R
Key Technical Specifications
| Parameter | Specification Data |
| Module Type | Single-Phase Field Power Module (SF3000 Series) |
| AC Input Voltage Range | 120 to 460 VAC, single-phase |
| Maximum AC Input Current | 15.5 Amps |
| DC Output Current Rating | Up to 15 Amps continuous |
| Bridge Configuration | Non-reversing (S2) bridge type |
| Mounting Style | Panel-mounted industrial chassis assembly |
| Operating Temperature | 0^\circC to +55^\circC standard industrial rating |
| Storage Temperature | -40^\circC to +85^\circC |
| Relative Humidity | 5% to 95% non-condensing |
Field Engineer’s Pitfall Guide
- Line Transient Overvoltage Spikes: Failing to install recommended transient suppression or an isolation transformer on fluctuating plant grids will punch through the SCR gates, causing immediate module failure.
- Inadequate Heat Dissipation Clearance: Mounting this high-current power module too close to heat-generating drives without maintaining proper vertical spacing will trip internal thermal limits or degrade semiconductor life spans.
- Unverified Field Resistance Loads: I have seen technicians blow internal protective fuses instantly upon startup because they connected the module to a low-resistance field load without verifying current matching parameters. Always check cold-resistance values of field windings prior to commissioning.
QA & Testing SOP (Transparency)
- Visual & Origin Inspection: Verification of OEM nameplate stamps, terminal block screw torque integrity, and component soldering/trace conditions.
- Bench Test Environment: Mounting to a controlled test fixture coupled with a variable AC supply and a resistive/inductive load bank.
- Dynamic Load & Phase Testing: Verification of firing circuits, phase-angle control response, and output DC regulation under stepped load conditions from 0 to 15 Amps.
- Packaging: Heavy-duty anti-static and shock-absorbing structural foam enclosures designed to protect heavy hardware assemblies during transit.
Technical FAQ
- Can the 805405-1R handle reversing field applications? No, this specific model utilizes a non-reversing (S2) bridge configuration designed strictly for unidirectional field supply applications.
- Is an external isolation transformer mandatory for operation? While an isolation transformer is optional depending on local line conditions and grounding schemes, it is heavily recommended to protect against severe line transients.
- Does this module store configuration parameters or firmware? No, the 805405-1R is a hardware-driven power conversion module containing no programmable memory or software firmware layers.
- What causes the unit to drop output current under load? Output sag or dropouts typically point to an unstable AC supply voltage dip, a failing SCR gate trigger circuit, or an overloaded output exceeding the 15A rating.
