Allen-Bradley 2706-D21J2 | DTAM Micro Operator Terminal Panel
Product Introduction
When a machine operator needs to tweak a timer preset or check an alarm code on an older control panel, lugging out a laptop running ancient programming software is a massive waste of time. The Allen-Bradley 2706-D21J2 is not a modern color touchscreen; it is a rugged, purpose-built DTAM Micro operator terminal designed to mount directly onto enclosure doors and interface seamlessly with legacy SLC and MicroLogix systems.
Built into a compact, chemical-resistant plastic enclosure, this unit delivers straightforward text-based monitoring and data entry via a tactile tactile-feedback keypad. It handles typical industrial panel environments—withstanding ambient temperatures from 0^\circC to +50^\circC—while drawing power directly from the communication loop or an auxiliary supply. If you are maintaining legacy automation lines and need a dependable drop-in display replacement, this interface keeps your older processors serviceable without costly rewiring.

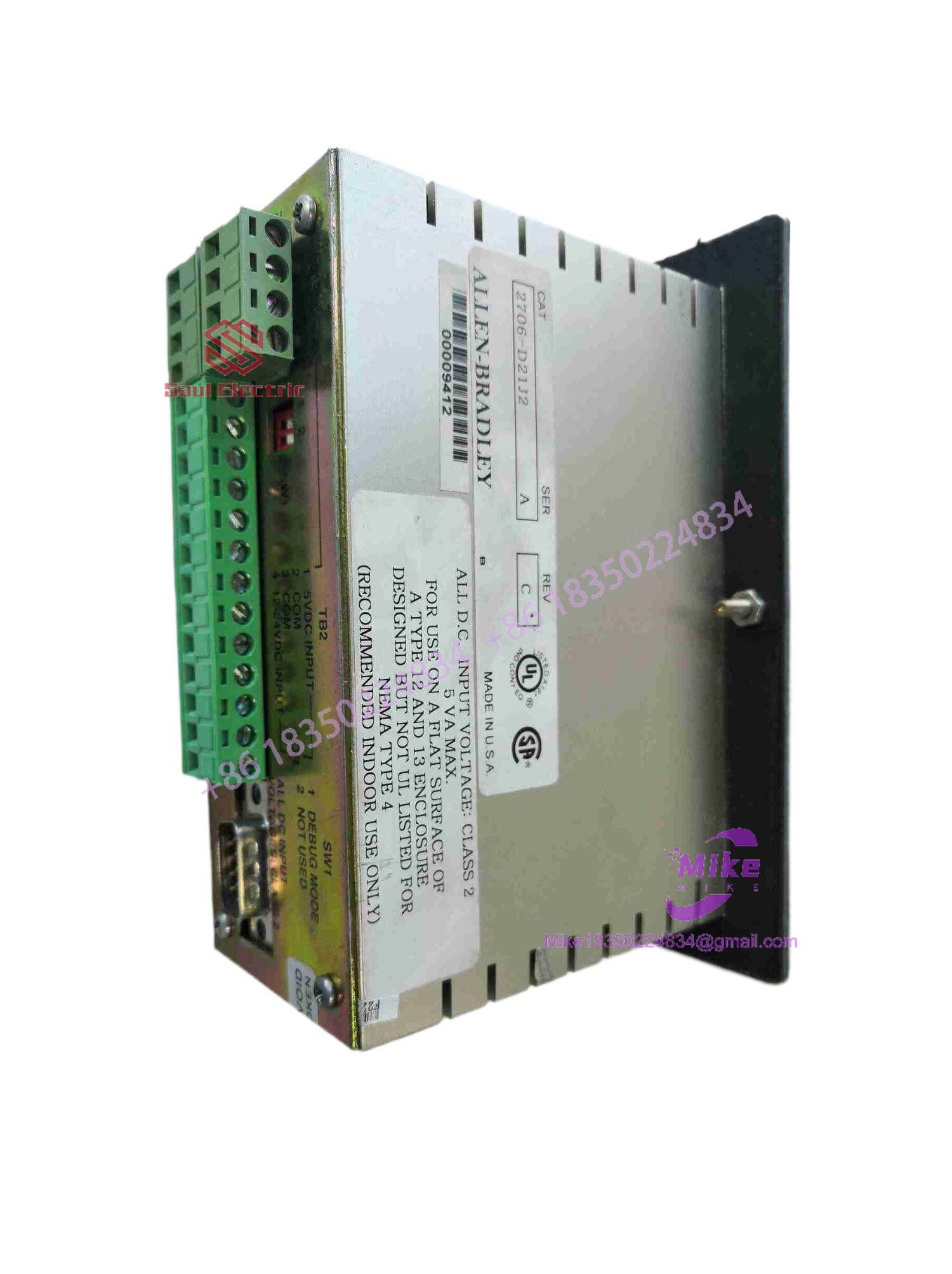

2706-D21J2
Key Technical Specifications
| Parameter | Specification Metric |
| Device Category | Operator Interface / DTAM Micro |
| Display Type | Vacuum Fluorescent or LCD Text Display (Model dependent) |
| Input Method | Tactile membrane keypad with function keys |
| Communication Protocol | DH-485 / RS-232 interface |
| Enclosure Rating | NEMA 12/4X panel mount (when properly gasketed) |
| Operating Power | DC powered via communication port or external supply |
| Mounting Style | Panel cutout with rear mounting clips |
| Operating Temperature | 0^\circC to +50^\circC |
Application Scenarios & Pain Points
- Legacy Packaging Line HMI Upgrades: An older snack-packaging machine running an SLC 500 suffered a failed display panel, halting operator adjustments. Dropping in the 2706-D21J2 restored local recipe and timer entry instantly without rewriting control code or changing enclosure cutouts.
- Water Treatment Pump Control Enclosures: Outdoor and damp plant environments expose panel doors to moisture and vibration. The DTAM Micro’s sealed membrane keypad resists environmental wear, maintaining reliable parameter checks where fragile touchscreens fail.
- Conveyor Speed Adjustment Stations: Operators need quick access to line speed variables without navigating deep menu trees. This terminal provides direct register mapping for instant, single-keystroke adjustments.
QA & Live Testing SOP (Trust Signal)
We don’t just wipe down old surplus hardware and stick it on a shelf; we verify functionality before it ships. Our testing protocol for the 2706-D21J2 includes:
- Physical & Cosmetic Inspection: Checked for membrane keypad elasticity, display lens clarity, and zero corrosion on communication port pins.
- Bench Power & Comm Link Test: Connected to a live SLC / DH-485 test rack to verify that the unit powers up cleanly, establishes communication handshakes, and polls data registers without packet drops.
- Keypad Responsiveness Check: Every single tactile key is manually actuated to ensure crisp electrical contact and zero stuck buttons.
- Protective Packaging: Wrapped in anti-static bubble wrap and boxed with dense foam padding to prevent impact damage during transit.
Field Engineer’s Pitfall Guide
- ❗ Communication Protocol Mismatch: Do not assume all DTAM units use the same port wiring; ensure your interface cable matches the specific DH-485 or RS-232 pinout configuration required by this exact catalog suffix.
- ❗ Gasket Compression Errors: When mounting the unit into a NEMA enclosure cutout, avoid overtightening the rear retaining clips. Uneven torque warps the plastic bezel and compromises the environmental seal against moisture ingress.
- ❗ Configuration Register Overwrites: Always back up your processor’s data table mapping before swapping terminals. If the new unit’s configured node address or register pointers differ from the old display, you will get communication timeout errors.
Intent-Driven FAQ
Is the Allen-Bradley 2706-D21J2 a direct drop-in replacement for failed legacy DTAM units?
Yes. As long as the catalog suffix matches your system requirements, it fits the exact physical cutout and communicates with the same register structure as your original Bulletin 2706 hardware.
Does this terminal require an external power supply?
It depends on your network architecture. Many configurations derive low-voltage power directly through the communication cable network, while others require a separate auxiliary DC power connection. Check your specific wiring diagram.
What causes a “No Comm” error message on the display screen?
This typically indicates an incorrect node address setting, a mismatched baud rate, a loose communication cable, or a broken DH-485 bias resistor in the network loop. Verify your network dip switches and cable continuity.
Can I program this terminal using modern software like FactoryTalk View?
No. The 2706-D21J2 is a legacy hardware platform configured using older, dedicated DOS or legacy software tools specific to the DTAM Micro product line.
What kind of warranty covers this surplus operator terminal?
Every unit is backed by our comprehensive replacement guarantee, supported by pre-shipment bench testing to ensure reliable operation out of the box.
