Woodward 8200-1302 | 505D Digital Governor Turbine Controller
Architect’s Product Breakdown
The Woodward 8200-1302 acts as an integrated, field-configurable digital governor designed for prime mover and steam turbine management in harsh industrial and maritime environments. Part of the modern 505D line, this unit merges the control logic processor and the graphical operator control panel (HMI) into a single, cohesive front-end enclosure. It accepts speed, pressure, or flow inputs to modulate valve actuators precisely, while its built-in display allows operators to run live tuning adjustments, review alarm logs, and modify control blocks directly from the panel without requiring an external programming terminal.
Engineering deployment of the 8200-1302 requires strict attention to hazardous area ratings and power distribution. Built specifically to satisfy marine certifications (such as IACS UR E10) and ATEX compliance mandates, it handles volatile offshore and heavy industrial conditions seamlessly. When retrofitting older mechanical governors or legacy 505/9907-series hardware, technicians must map field wiring terminals carefully and verify that the 18–32 VDC low-voltage power supply architecture is stable and properly grounded to prevent analog signal distortion on the 4–20 mA loops.

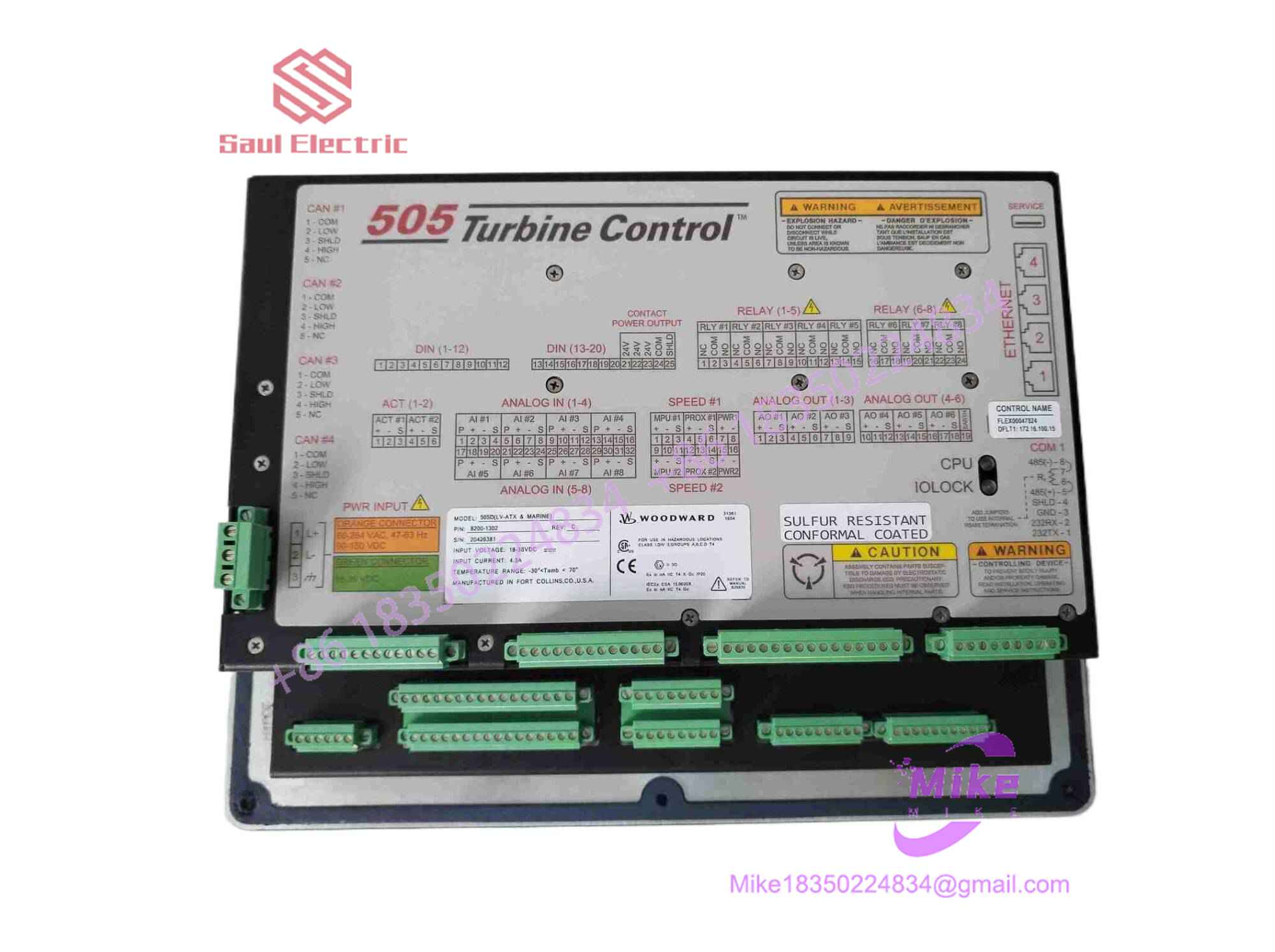

8200-1302
4. Key Technical Specifications
| Core Parameter | Technical Specification |
| Input Power Requirements | Low Voltage DC (18 to 32 VDC) |
| Compliance Standards | CE, UL/cUL, ATEX Hazardous Locations, IACS UR E10 (Commercial Marine) |
| Operator Interface | Integrated Graphical Display Panel with Tactile Keypad |
| Analog Inputs | Configurable 4–20 mA channels (with internal loop power support) |
| EMC Immunity | Designed to EN 61000-6-2 industrial immunity standards |
| Primary Control Loops | Speed, load, cascade, auxiliary pressure/flow PID control blocks |
| Enclosure Type | Panel-mount ruggedized industrial casing with sealed front HMI |
| Operating Temperature | -20°C to +70°C industrial rating |
Field Engineer’s Pitfall Guide
- Warning: Marine Grounding and Shielding Loops. Failing to properly tie shield drain wires to the designated chassis ground studs can introduce radio frequency interference (RFI), leading to erratic speed pickup readings. I once debugged an erratic turbine trip issue on an offshore platform where the speed sensor cable shield was grounded at both ends, creating a ground loop that injected noise straight into the magnetic pickup inputs.
- Warning: Undersized DC Power Supplies. Ensure the 18–32 VDC power source can handle the initial inrush current during power-up sequences. Dropping below 18 VDC during transient loads will force a processor reset and drop the turbine trip solenoid.
- Warning: Configuration File Backup Failures. Never commission a newly replaced 8200-1302 without downloading and saving a verified copy of the site-specific configuration file to your PC via the service port. Relying on default factory settings will misalign critical valve calibration curves and speed setpoints.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Examined under magnification for authentic Woodward holograms, uncompromised front-panel sealing gaskets, and pristine rear terminal connector blocks.
- Live Test Bench Rack Validation: Powered up on an industrial test rig utilizing regulated 18–32 VDC power supplies to check internal microprocessor boot routines and self-diagnostic logs.
- Signal & HMI Simulation: Stimulated with simulated magnetic pickup (MPU) frequency inputs and 4–20 mA loop signals to verify PID loop tracking, relay output switching, and front-panel graphical display responsiveness.
- Environmental Packaging: Sealed inside heavy-duty anti-static barrier bags and packed within industrial-grade shock-absorbing foam to prevent impact damage to the display and housing during shipping.
Technical FAQ
Is the 8200-1302 a direct drop-in replacement for older AC-powered 505 models?
No. The 8200-1302 is designed specifically for low-voltage DC (18–32 VDC) operation and features Marine/ATEX certifications. If you are replacing an older high-voltage AC-powered variant (such as legacy 9907-series units), you must verify that your cabinet power distribution has been converted to support DC power.
Can I configure the 8200-1302 entirely from the front panel interface?
Yes. The integrated graphical operator panel and keypad allow authorized engineers to perform initial configurations, tune PID loops, and adjust operating parameters directly on-site without needing an external computer.
Is application configuration data lost during a total power loss?
No. All user-defined configuration settings, tuning constants, and logic parameters are stored in non-volatile flash memory onboard the controller and remain fully intact through power interruptions.
Does this unit carry specific certifications for marine environments?
Yes. The 8200-1302 model is explicitly engineered to satisfy IACS UR E10 standards for commercial marine applications alongside ATEX compliance for hazardous locations.
