Woodward 5437-523 | Industrial Turbine Control Module
Product Introduction
When a heavy industrial gas turbine, steam turbine, or large diesel generator experiences erratic fuel control or governor instability, plant reliability depends on immediate hardware replacement with guaranteed component compatibility. The Woodward 5437-523 is not an off-the-shelf commercial logic board; it is a specialized industrial control module engineered specifically for Woodward’s demanding prime mover management architectures. It acts as the computational and signal-conditioning core translating critical sensor telemetry into precise actuator commands.
Engineered with robust surface-mount circuitry designed to withstand harsh mechanical vibration and electrical noise inherent in power generation environments, this board maintains tight loop stability under fluctuating load profiles. It handles continuous ambient panel operating thresholds—withstanding standard industrial temperature tiers up to 50^\circC—while providing reliable internal diagnostics. If you are maintaining legacy turbine control panels or stocking critical spares for plant turnaround, this unit drops straight into your existing rack framework.

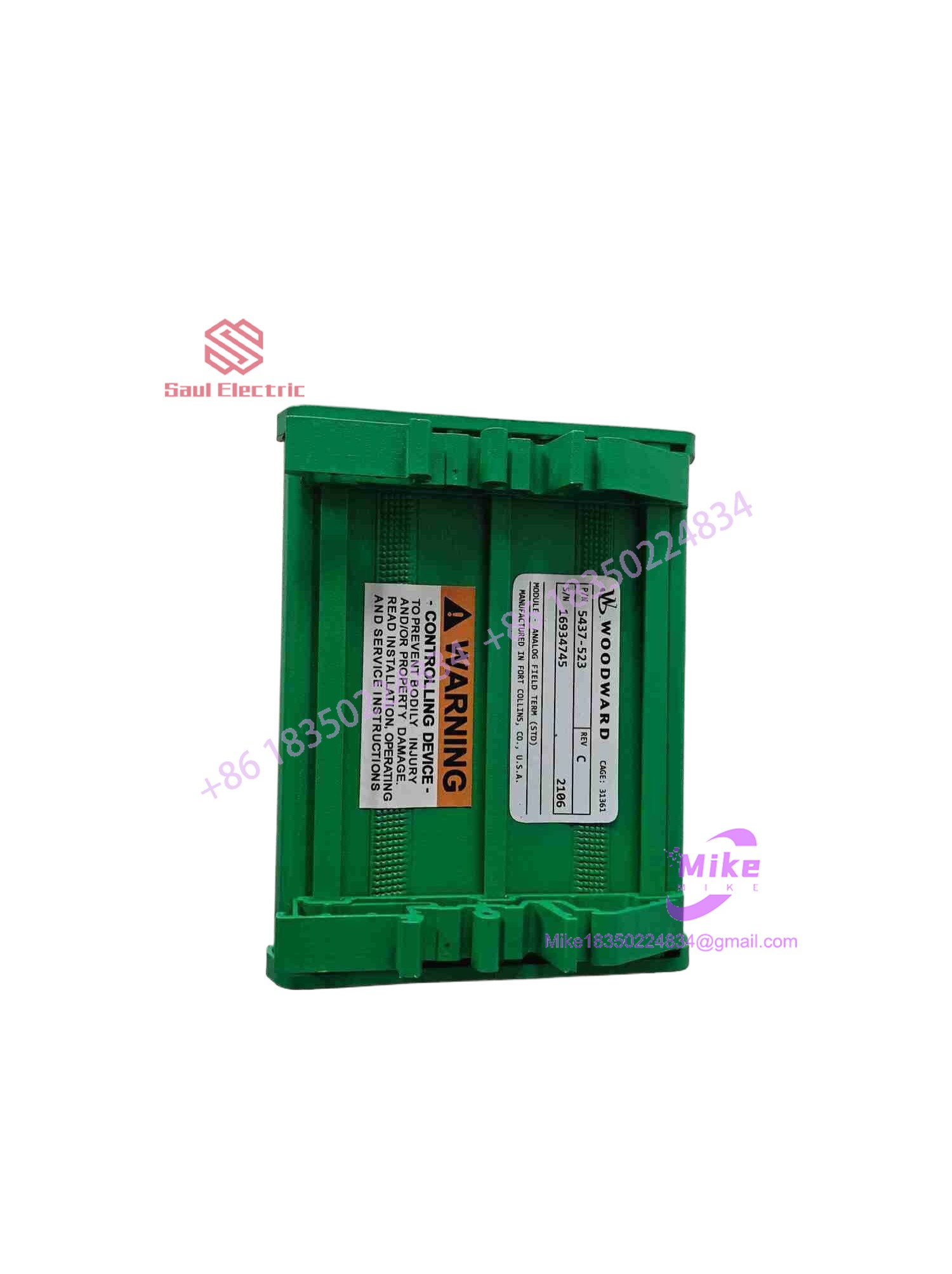

5437-523
Key Technical Specifications
| Parameter | Specification Metric |
| Device Category | Prime Mover Electronic Control / Governor Module |
| System Compatibility | Woodward Industrial Turbine & Engine Control Racks |
| Input Channels | Configurable analog/digital sensor and feedback inputs |
| Output Regulation | Precise actuator/valve drive and signal control loops |
| Diagnostic Features | Onboard status LEDs and test verification points |
| Enclosure Type | Modular circuit card designed for rack chassis installation |
| Operating Temperature | 0^\circC to +50^\circC standard industrial environment |
| Power Requirements | Powered via standard rack backplane DC supply rails |
Application Scenarios & Pain Points
- Power Generation Gas/Steam Turbines: Utility and industrial co-generation plants rely on exact speed and load distribution. The 5437-523 processes high-speed magnetic pickup (MPU) and valve position feedback to eliminate hunting and speed droop oscillations.
- Pipeline Compressor Stations: Natural gas compressor drivers require continuous, uninterrupted modulation of fuel gas control valves under variable pipeline pressures. This control module ensures steady-state operation and fast transient response.
- Marine Propulsion Engine Governors: Large marine diesel and turbine mainframes demand ruggedized control hardware capable of absorbing continuous hull vibration while maintaining precise shaft speed regulation.
QA & Live Testing SOP (Trust Signal)
We don’t warehouse precision turbine controls without verifying their internal logic and signal path integrity; every 5437-523 unit goes through our rigorous bench protocol:
- Visual & Microscopic Audit: Inspected under optical magnification for trace integrity, solder joint stability, and complete absence of environmental contamination on edge connectors.
- Dynamic Rack Power-Up: Slotted into an authorized Woodward test rig to verify clean DC power rail handshakes, microprocessor boot sequences, and internal watchdog timer health.
- Signal Calibration & Loop Simulation: Tested using precision function generators to simulate speed pickup inputs and actuator feedback loops, confirming accurate gain response and zero signal drift.
- Protective Packaging: Sealed inside heavy-duty anti-static shielding bags and suspended securely within high-density structural foam to prevent transit vibration damage.
Field Engineer’s Pitfall Guide
- ❗ Electrostatic Discharge (ESD) Sensitivity: Always wear a properly grounded wrist strap when handling this board; direct contact with sensitive CMOS components can cause hidden internal degradation.
- ❗ Trim Potentiometer Settings: If your specific revision features onboard calibration trim pots, record their exact physical positions before making any adjustments during commissioning to avoid destabilizing governor response loops.
- ❗ Shielding and Grounding: Ensure that all control signal cable shields are grounded properly at a single star point; floating or multi-point grounded shields will introduce electrical noise into sensitive analog input channels.
Intent-Driven FAQ
Is the Woodward 5437-523 a direct plug-and-play replacement?
Yes. Provided the part number, hardware revision, and software/jumpers match your existing installed unit, it is designed to slide directly into your control rack without mechanical modification.
Does this module require field calibration after installation?
While pre-tested and calibrated to factory baselines, fine-tuning of deadband, gain, or reset parameters may be required through your system configuration interface depending on your specific prime mover dynamics.
What causes a sudden controller shutdown or fault trip?
A trip condition usually points to an external safety loop interlock, a failed speed sensor (MPU) input, an internal power supply rail sag, or a tripped watchdog circuit on the board.
Can this unit handle high-vibration generator environments?
Yes. The board is built with industrial-grade components and conformal coating designed to withstand standard prime mover vibration levels when securely locked into its chassis slot.
What kind of warranty covers this surplus control module?
Every unit is backed by our comprehensive replacement guarantee, supported by multi-point pre-shipment bench testing to ensure absolute electrical stability out of the box.
