Description
TRICONEX 4211 is a new-generation Triple Modular Redundant (TMR) safety control module specifically designed for high-risk industrial sectors such as petrochemicals, nuclear power, and natural gas. Its modular design offers several significant advantages:
1. High Reliability and Fault Tolerance
- Triple Modular Redundancy Technology: TRICONEX 4211 employs three independent and parallel processing channels. This design ensures that even if one channel fails, the system can continue to operate normally using the other two channels, providing exceptional system reliability and fault tolerance.
- Automatic Fault Diagnosis and Isolation: The module incorporates built-in automatic fault diagnosis capabilities, enabling real-time monitoring and isolation of faulty channels to prevent fault propagation and impact on the entire system. Additionally, the system supports hot-swapping, allowing faulty modules to be replaced without system shutdown, further enhancing system availability.

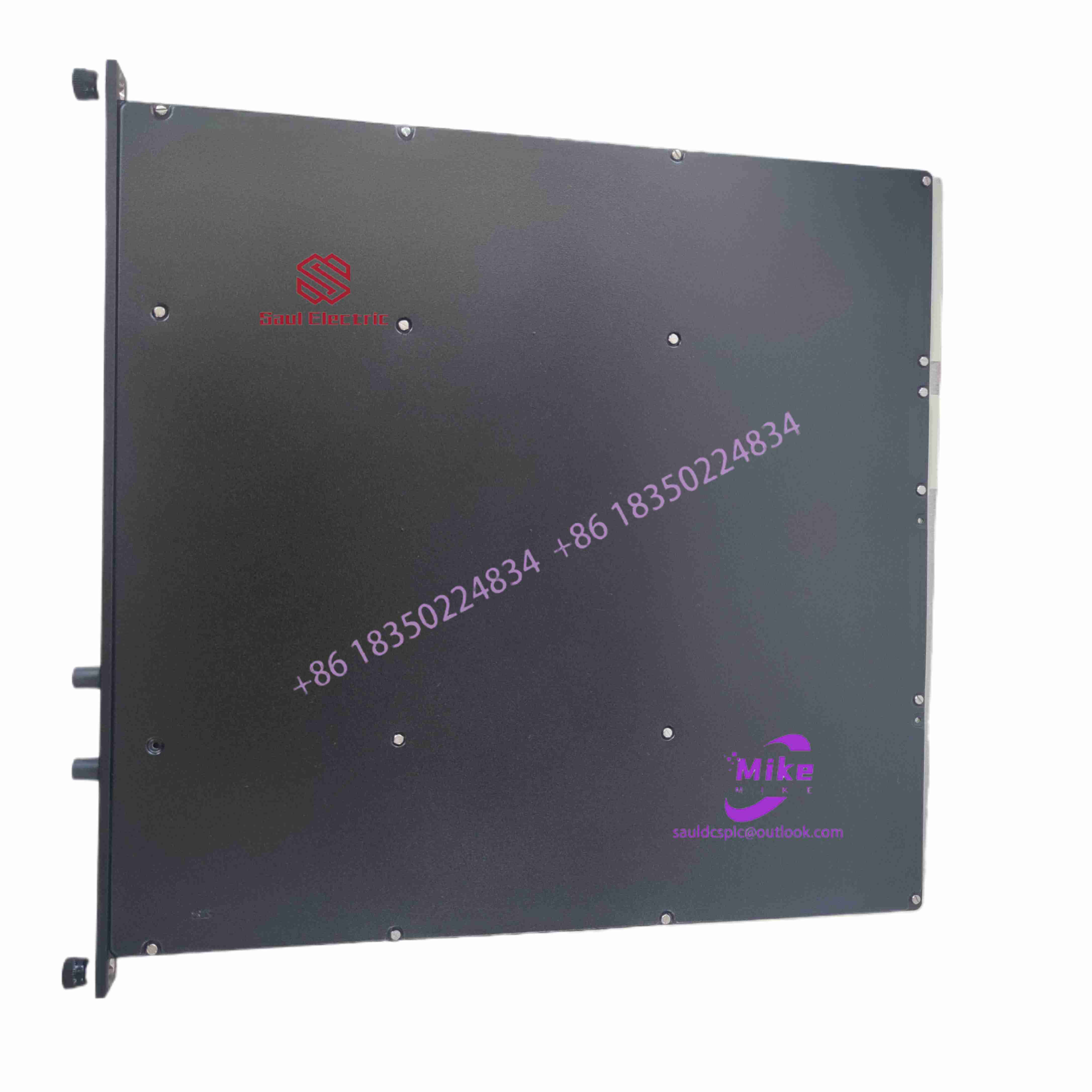

TRICONEX 4210 (TMR) Safety Control Module
2. Flexible Scalability and High Customization
- Modular Design Philosophy: TRICONEX 4211 adopts a modular design approach, enabling users to select different input/output modules based on actual needs for highly customized solutions. This design simplifies system configuration processes while improving system flexibility and scalability.
- Support for Multiple Communication Protocols: The module supports various communication protocols and interface standards, such as Ethernet and RS-485, facilitating seamless integration with other industrial equipment or systems. Furthermore, it offers a wide range of I/O point counts and types to meet diverse application requirements.
3. Easy Maintenance and Upgrades
- Simplified Maintenance Procedures: Due to its modular design, when a module in TRICONEX 4211 fails, users can restore normal system operation by simply replacing the faulty module without the need for system-wide shutdown and inspection. This design significantly streamlines maintenance procedures, reducing maintenance costs and downtime.
- Remote Monitoring and Diagnostics Support: The module supports remote monitoring and diagnostic functions, allowing users to access system status information, perform fault troubleshooting, and conduct repair operations remotely via the network. This capability enhances system maintainability and response speed, minimizing the need for on-site maintenance.
4. High Performance and Rapid Response
- High-Speed Processing Capabilities: TRICONEX 4211 boasts high-speed processing capabilities, with a single-channel scan cycle of ≤50ms (under full-channel load). This meets the demands of applications requiring high real-time performance. Additionally, the module supports high-speed Sequence of Events (SOE) recording with a precision of 1ms, enabling precise identification of fault occurrence times.
- Strong Anti-Interference Capabilities: The module features a full-metal enclosure for electromagnetic interference shielding, making it suitable for harsh industrial environments with strong vibrations and high corrosion levels. Moreover, it incorporates safety functions such as lightning protection and overcurrent protection to ensure stable system operation under various extreme conditions.
