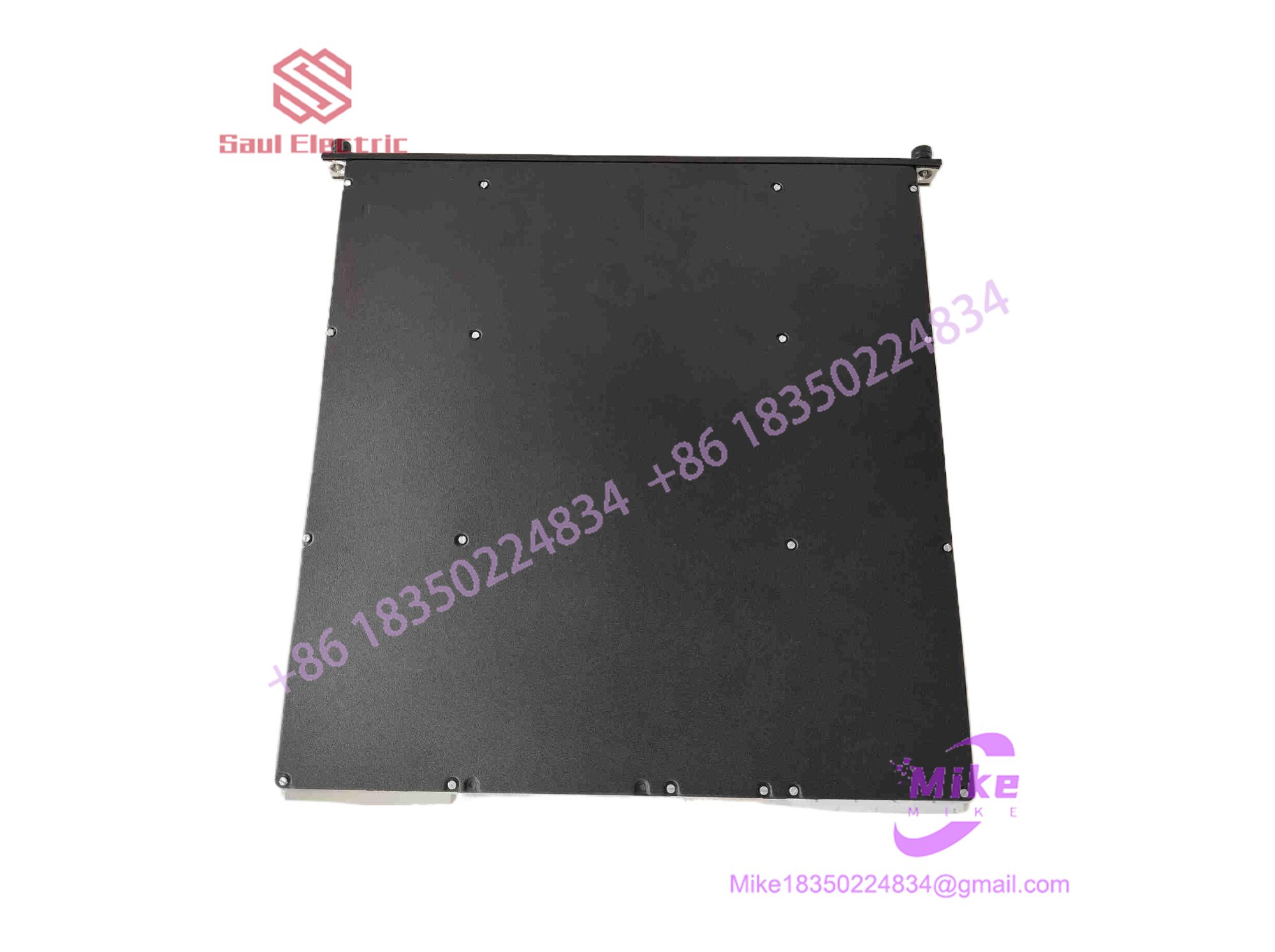

Triconex 3511 | Analog Input Module 32-Channel 0-20mA TMR
Product Introduction
When a critical safety loop demands high-density analog acquisition without sacrificing fault-tolerant integrity, running out of chassis slots can stall a migration project. The Triconex 3511 is not a standard commercial PLC input card; it is a high-density, 32-channel analog acquisition node engineered specifically for safety instrumented systems (SIS). It acts as the frontline perceptual bridge between field transmitters and the triple-redundant safety mainframe.
Operating behind a continuous scanning architecture, this module processes 32 differential input points while voting across its internal legs using mid-value selection algorithms. It handles harsh industrial operating conditions—withstanding ambient temperatures from 0^\circC to +60^\circC—while maintaining high common-mode rejection against electrical noise. If you are expanding safety instrumentation capacity or maintaining legacy architecture, this module slides straight into your existing Tricon backplane framework.
3511
Key Technical Specifications
| Parameter | Specification Metric |
| Module Type | Analog Input (AI) |
| Input Channels | 32 differential channels, DC coupled |
| Current Input Range | 0 to 20 mA (with external 250-ohm shunt) |
| Calibrated Accuracy | < \pm 0.15\% of full scale range (FSR) from 0^\circC to 60^\circC |
| Common-Mode Range | -12 V to +12 V peak |
| Common-Mode Rejection | -80 dB (DC to 100 Hz, typical) |
| Input Update Rate | 55 ms |
| Input Resistance | 30 M\Omega (DC, minimum) |
| Operating Temperature | 0^\circC to +60^\circC |
| Backplane Power Draw | Powered via +5 VDC Tricon rack bus |
Application Scenarios & Pain Points
- Refinery Hydrocracker Pressure Arrays: Monitoring multi-zone reactor pressures requires dense input tracking without channel crowding. The 3511 provides 32 high-integrity channels in a single slot, reducing overall footprint while maintaining TMR voting safety.
- Offshore Production Separator Skids: Long signal cable runs from remote platform skids frequently pick up high-frequency electrical induction from nearby VFD drives. The module’s -80 dB common-mode rejection filters out line noise, preventing erratic analog fluctuation.
- Chemical Plant Distillation Column Monitoring: Precise temperature and level inputs are vital to prevent dangerous column flooding. The module’s mid-value selection algorithm ensures that transient sensor noise on a single leg never triggers a spurious plant shutdown.
QA & Live Testing SOP (Trust Signal)
We don’t ship surplus safety hardware straight from warehouse shelves without testing its measurement integrity; every 3511 module undergoes an intensive QA protocol:
- Visual & Optical Authentication: Inspected under magnification for pin cleanliness, conformal coating continuity, and complete absence of component-level thermal wear or corrosion.
- Dynamic Live-Rack Testing: Mounted into an operational Tricon TMR test chassis. We inject calibrated current ramps across all 32 differential channels to verify exact analog-to-digital conversion and register mapping.
- Voting & Diagnostic Check: Verified across all processor legs to ensure the internal microprocessors resolve mid-value selection routines accurately without triggering channel fault LEDs.
- Protective Packaging: Sealed inside heavy-duty anti-static barrier bags and packed with high-density structural foam to prevent transit vibration damage.
Field Engineer’s Pitfall Guide
- ❗ External Termination Panel (ETP) Wiring: Never attempt to wire field loops directly to the module card edge; the 3511 requires a correctly matched external termination panel (ETP) and dedicated interposing cable assembly.
- ❗ Shunt Resistor Tolerance: When scaling for current loops (0-20 mA), ensure high-precision 250-ohm shunt resistors are utilized on the termination panel; drifting resistor tolerances will instantly throw off calibration accuracy.
- ❗ Chassis Keying Mechanics: Do not force the module into a mismatched slot address. The backplane features mechanical keying pins designed to prevent physical insertion into non-compatible digital or output card slots.
Intent-Driven FAQ
Can I hot-swap the Triconex 3511 without causing a process shutdown?
Yes. Because the Tricon system operates on Triple Modular Redundancy (TMR), a single healthy module can be pulled and replaced live while the remaining redundant paths maintain continuous safety system availability—though your mileage may vary depending on local plant operating policies.
Is this unit an authentic OEM part or a refurbished clone?
This listing is for verified original hardware featuring factory conformal coating and genuine microprocessors, ensuring full mechanical and logical drop-in compatibility with your Tricon rack.
What causes a “Fault” LED to illuminate on the front faceplate?
A lit fault indicator typically points to an individual channel discrepancy, an open input loop, or a configuration mismatch in TriStation 1131. Note that a single channel fault flags the module’s diagnostic register without crashing the entire assembly.
Does this module provide loop power to field transmitters?
No. The 3511 measures incoming current loops sourced by external power supplies or active field transmitters; it does not supply active excitation voltage out to the field devices.
What kind of warranty covers this surplus analog module?
Every unit is backed by our comprehensive replacement guarantee, supported by multi-point pre-shipment bench testing to ensure operational readiness out of the box.
