Modicon AS-B808-016 | 115VAC 16-Channel Discrete Input Module

Description

Modicon AS-B808-016 | 115VAC 16-Channel Discrete Input Module

Product Introduction

When an aging Modicon 984 processor rack drops critical digital sensor inputs because of a failing I/O card, hunting down legacy hardware becomes an emergency. The Modicon AS-B808-016 is not a generic terminal block; it is an engineered 16-channel discrete AC input module built explicitly to handle standard 115VAC field signals within heavy industrial environments. Designed to slide cleanly into legacy Modicon 800-series drop racks or backplanes, this unit handles the critical task of stepping down high-voltage field device states while providing heavy galvanic isolation to protect core processor logic.

Operating at the front line of industrial control cabinets, the module suppresses electrical noise induced by long field wire runs—though your mileage may vary depending on cabinet ambient temperatures and overall line frequency stability. It keeps legacy control loops running reliably without forcing a massive, capital-intensive control system migration.

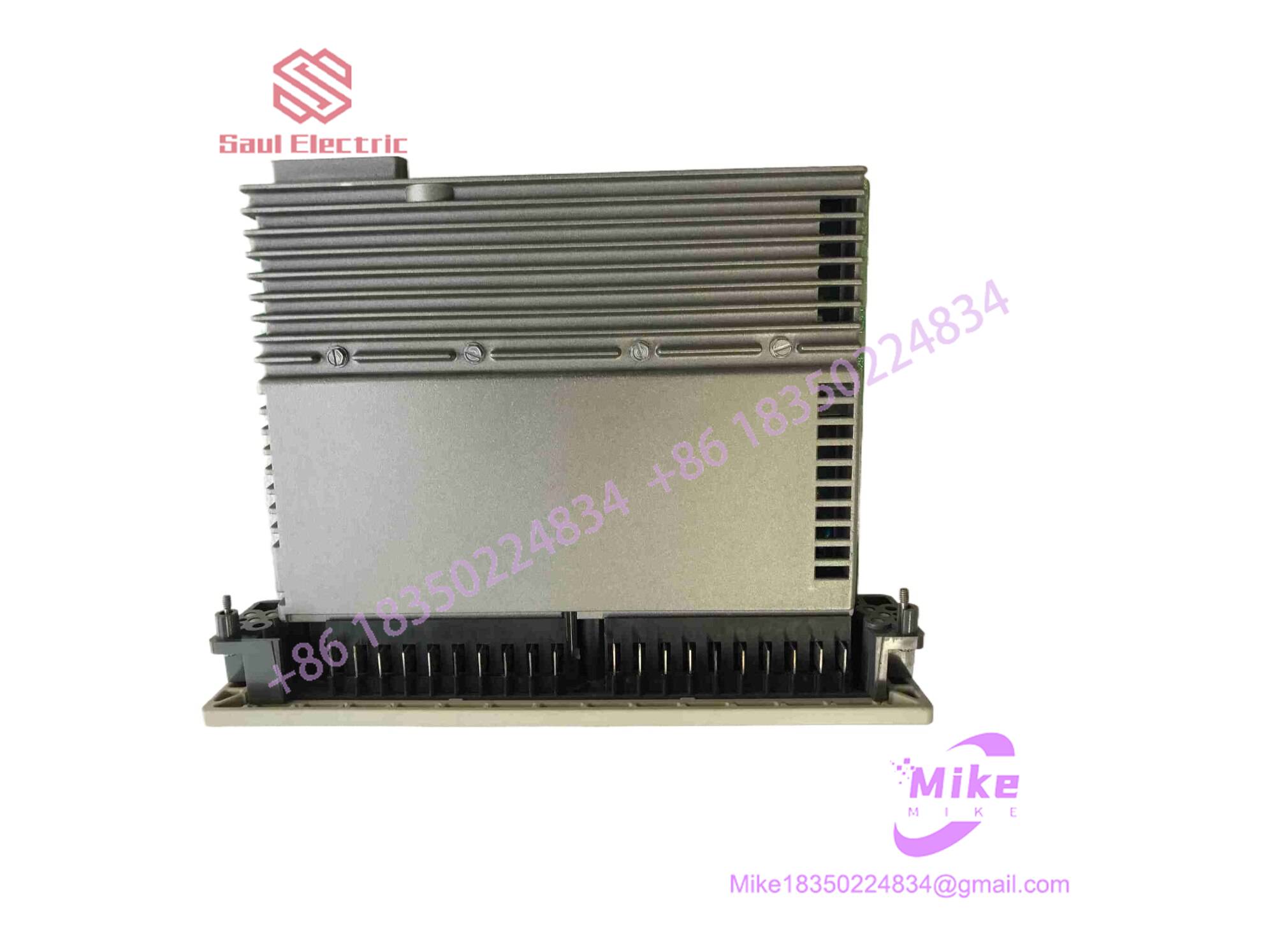

AS-B808-016

Key Technical Specifications

Application Scenarios & Pain Points

• Heavy Manufacturing Press Line Upgrades: An automotive stamping facility in Michigan kept experiencing erratic limit-switch readings on their legacy 984 system due to high-voltage inductive spikes until swapping in a verified Modicon AS-B808-016 module, which cleaned up the discrete input thresholds.
• Municipal Water Treatment Pump Stations:
  • Without AS-B808-016: Aging input cards suffered from degraded optical couplers, causing intermittent bit-flipping on critical 115VAC valve feedback circuits.
  • With AS-: High-grade optical isolation locks input states firmly, eliminating false PLC triggers during heavy motor starts.
• Harsh Industrial Enclosures: Housed inside a heavily vibrating local control panel, the module’s robust board retainer clips and secure edge connectors maintain solid backplane contact.

QA & Live Testing SOP (Trust Signal)

Legacy I/O hardware demands rigorous electrical validation to ensure optical couplers and logic gates are fully operational. Every Modicon AS- unit processed through our facility undergoes a strict evaluation protocol:

1. Visual & Optical Inspection: Inspected under magnification for component thermal wear, electrolytic capacitor health, and pristine backplane connector gold fingers.
2. Bench Power-Up & Rack Verification: Inserted into a Modicon 800-series test chassis to verify power bus stability and communication handshakes with the backplane controller.
3. Multi-Channel AC Voltage Injection: Utilized an isolated variable AC source to apply precise 115VAC thresholds across all 16 input channels, verifying that front-panel LEDs and internal register states trigger cleanly within specification limits.
4. Protective Packaging: Sealed in heavy anti-static shielding bags and packed in custom cut-foam containers to prevent transit shock.

Field Engineer’s Pitfall Guide

• ❗ High-Voltage AC Field Wiring: Never mix 115VAC input wiring with low-voltage 24VDC control circuits or analog loops inside the same wire duct. Inductive cross-talk can cause ghost inputs.
• ❗ Backplane Insertion Force: When sliding the module into a live drop rack, ensure proper alignment before pressing firmly. Forcing an angled card can bend backplane pins, causing permanent communication faults.
• ❗ Common Return Terminations: Verify that your field device commons match the module’s grouping configuration to prevent ground-potential loops across isolated channel banks.

Intent-Driven FAQ

Is the Modicon AS- compatible with both Modicon 984 and Compact controllers?

Yes, the AS- is part of the standardized Modicon 800 Series I/O family, designed to drop directly into compatible 800 series mounting racks and drop enclosures.

Are these units supplied as New Surplus or refurbished working pulls?

We maintain inventory in both factory-sealed New Surplus (NSMP) packaging and thoroughly bench-tested, certified working pulls backed by an extensive operational warranty.

What causes an input channel LED to stay illuminated when the field switch is open?

This is typically caused by induced AC voltage leakage from long parallel wire runs picking up stray capacitance or electromagnetic interference, which can be mitigated by installing an appropriate loading resistor across the input terminals.

Does the module require an external power supply for the input circuits?

No, the 115VAC input voltage is supplied directly by your field switching devices, while internal logic power is drawn straight from the Modicon rack backplane.
