Rexroth DKCXX.3-040-7 Series | 40A / 700V DC Bus Digital Servo Drives

Description

Rexroth DKCXX.3-040-7 Series | 40A / 700V DC Bus Digital Servo Drives

Dynamic Product Introduction

When referencing industrial part numbers like DKCXX.3-040-7, the “XX” typically acts as a wildcard or family designator (such as DKC01, DKC02, or DKC03) indicating a specific hardware sub-generation or communication variant within the Rexroth EcoDrive 03 line. Honestly, identifying the exact sub-model suffix—including your specific firmware module card (-FW) and interface type—is critical before sourcing a replacement to ensure complete hardware and protocol compatibility (—though verifying your exact DC bus voltage class, continuous current draw, and encoder feedback type beforehand is essential). Compared to generic industrial drives, authentic Rexroth EcoDrive units maintain exact tuning parameters, motor compatibility, and safety integration across your legacy production lines.

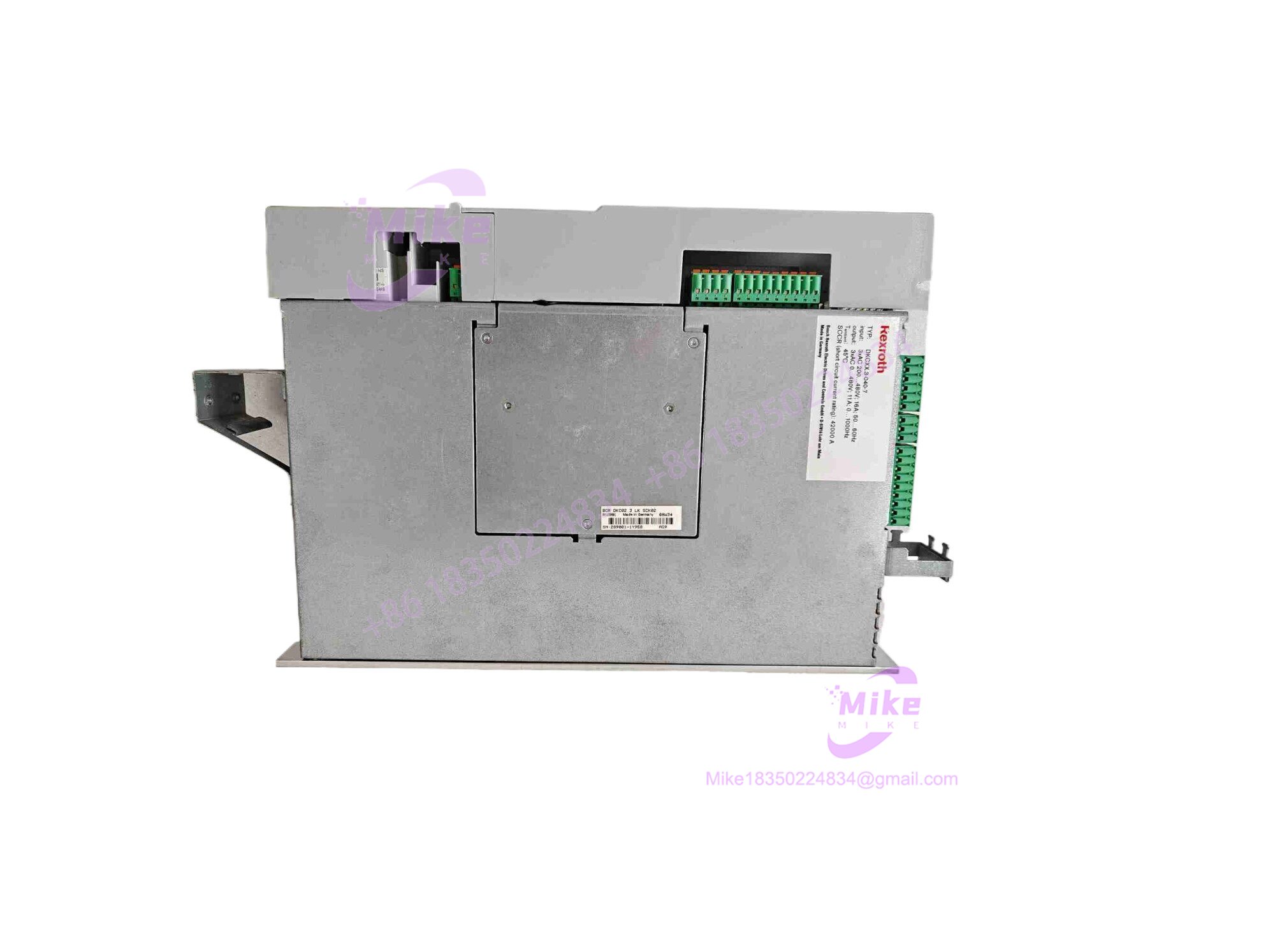

DKCXX.3-040-7

Key Technical Specifications (Series Baseline)

Global Sourcing & Live-Test SOP (Transparency Core)

Acquiring secondary-market legacy Indramat servo controllers requires exhaustive verification to ensure internal DC bus filter capacitors, power IGBT switching modules, and control logic boards remain uncompromised. For every inbound Rexroth EcoDrive unit, our audit team logs serial numbers against global traceability ledgers, inspects power and control terminal blocks for thermal discoloration, and checks internal printed circuit boards for electrostatic vulnerability.

Once cleared, the drive is mounted onto a dedicated Rexroth simulation test bench paired with an appropriate matching servomotor. Technicians apply nominal DC bus and control power, verify pre-charge circuit operation, test PWM switching stages across all output phases under simulated loads, and confirm communication and firmware responsiveness. The unit is then cleaned, fitted with anti-static protection, and securely packaged for deployment.

The Field Engineer’s Pitfall Guide

❗ Wildcard Confusion (“XX”): Never install a drive based solely on a family series prefix; always match the exact digits following “DKC” (e.g., DKC01.3 vs. DKC03.3) to prevent backplane or interface incompatibility.

❗ DC Bus Voltage Class Mismatch: Ensure you are replacing a 700V-class drive (-7-) with an identical voltage rating; installing a 700V unit onto a lower-voltage system or vice versa will cause catastrophic failure.

❗ Firmware Card Omission: EcoDrive units rely on plug-in firmware modules; swapping a base unit without transferring the correct software card will result in initialization and configuration faults.

Intent-Driven FAQ

• What does “XX” signify in the model designation DKCXX.3-040-7?

  “XX” is a wildcard placeholder representing the specific hardware generation and variant code (such as 01, 03, etc.) within the EcoDrive 03 product family.

• Are all DKC units with “-040-7” interchangeable?

  Not necessarily. While they share the same 40-amp current rating and 700V DC bus class, you must verify the exact prefix digits and firmware card type to ensure proper communication protocol match.

• What type of warranty covers verified surplus Rexroth drives?

  All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.

• Can I transfer my existing firmware card into a replacement DKC base unit?

  Yes, provided the base hardware generation matches, transferring the original firmware module card preserves your specific application configuration.

• How do I verify if a replacement unit has been bench-tested?

  Look for serialized QA certification labels, clean connector pins, and complete test documentation included with the hardware package.
