Bosch Rexroth CSH01.1C-PB-ENS-NNN-MEM-S2-S-NN-FW | Advanced Control Section
Dynamic Product Introduction
Precision motion control and multi-axis industrial automation systems demand high-speed processing architecture, deterministic fieldbus integration, and strict safety oversight. When an IndraDrive controller card suffers from component degradation or communication faults, replacing it with a verified Bosch Rexroth CSH01.1C control section restores absolute performance and system stability.
Engineered for advanced drive operations, the CSH01 series handles real-time closed-loop calculations, motor encoder feedback, and high-speed PROFIBUS-DP command execution without latency. Deploying a fresh CSH01.1C unit ensures clean signal translation, seamless backplane handshakes, and uninterrupted execution across automated machinery.

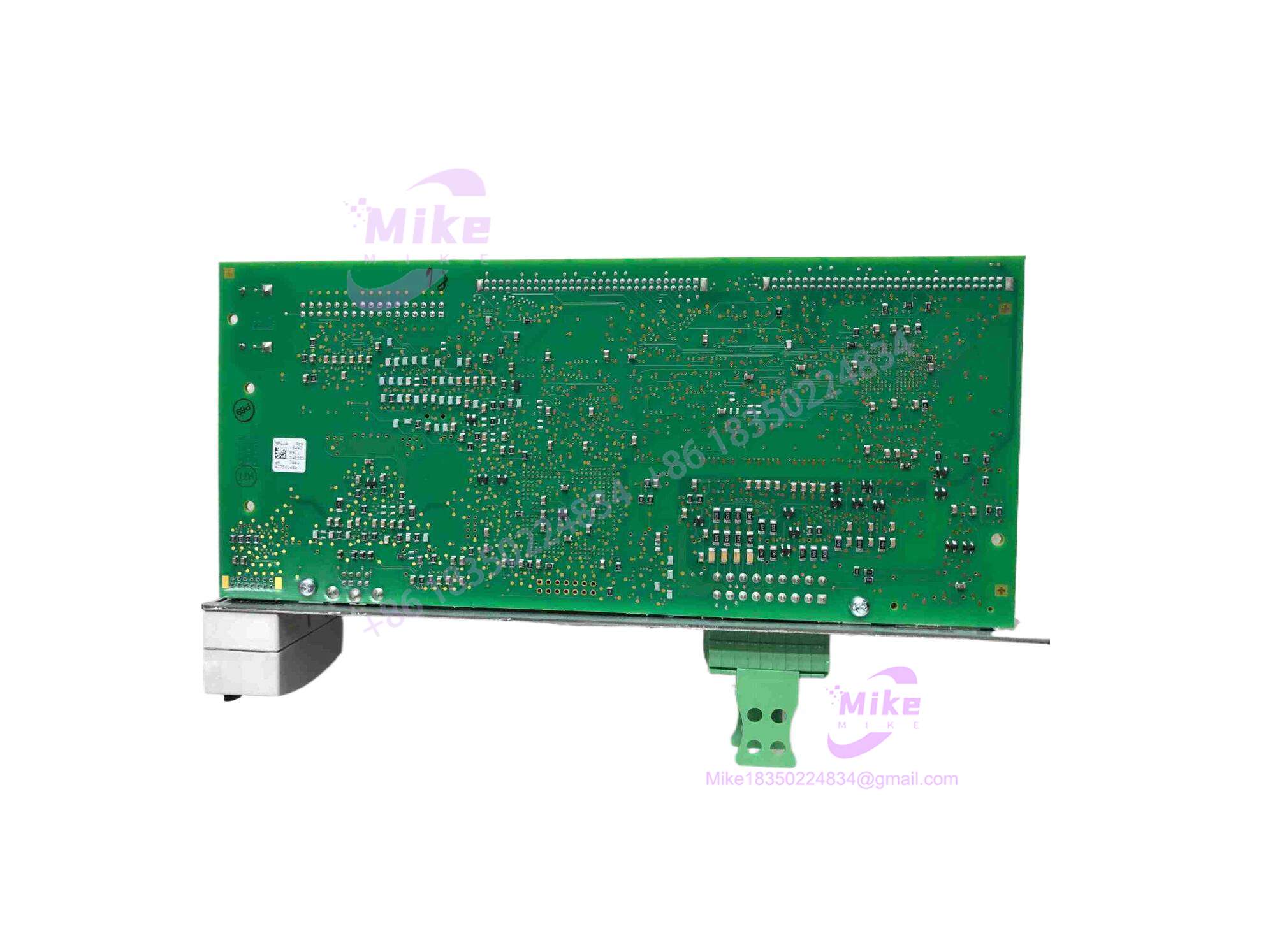

CSH01 .1C-PB-ENS-NNN-MEM-S2-S-NN-FW
Key Technical Specifications
| Core Parameter | Technical Specification |
| Product Model | CSH01.1C-PB-ENS-NNN-MEM-S2-S-NN-FW |
| Manufacturer | Bosch Rexroth / Indramat |
| System Compatibility | Rexroth IndraDrive modular power sections |
| Communication Profile | PROFIBUS-DP interface |
| Encoder Evaluation (ENS) | D-Sub, 15-pin, female connector interface |
| Encoder Emulation (MEM) | MEM module slot supporting pulse outputs up to 1 MHz |
| Safety Functionality | Integrated Safe Motion hardware layer option |
| Analog Inputs / Outputs | Differential input (\pm10V) and diagnostic output (0–5V) |
| Power Consumption | 7.5 W basic circuit power draw |
| Operating Environment | Standard industrial enclosure and cabinet thresholds |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring legacy or surplus industrial motion control hardware through secondary markets requires an exhaustive verification workflow to guarantee backplane pin integrity and firmware stability.
- Inbound Verification: Incoming CSH01 control cards undergo high-magnification optical inspection of multi-pin backplane connectors, internal memory blocks, and laser-etched traceability ID plates against factory records.
- Live Simulation: Technicians mount the control section onto a compatible Rexroth IndraDrive test rack energized by regulated DC supply rails to confirm power-up handshakes and boot-loader initialization.
- Diagnostics: Engineers execute full-scale communication traffic sweeps over the PROFIBUS network port, verify encoder feedback processing loops, and run a 24-hour thermal soak chamber test under load.
- Final Prep: Hardware units receive comprehensive firmware revision logging, protective port capping, and vacuum sealing inside heavy-gauge moisture-barrier ESD shielding bags.
The Field Engineer’s Pitfall Guide
❗ Firmware and Parameter Version Mismatches: Swapping a control card without backing up or verifying the specific application firmware package (FW) and parameter set can result in drive initialization faults or incorrect axis scaling. Always pull a clean project archive via IndraWorks prior to unseating a module.
❗ Inrush Current Considerations: During initial power-up sequence execution, the control section can draw a transient inrush current of up to 4A; ensuring upstream auxiliary 24V power rails are properly sized prevents unexpected voltage sags.
❗ Backplane Insertion Force: Forcing the control section module onto the power unit without precise alignment can bend delicate internal connector pins. Always guide the housing smoothly along the mechanical tracks before tightening retention screws.
Intent-Driven FAQ
Will swapping this control section erase my drive parameters or motion logic?
Drive configuration parameters, scaling factors, and motion logic files are typically stored on memory media (such as an embedded Rexroth programming card or uploaded via software). Ensuring your memory module is preserved or your backup file is ready will facilitate a seamless swap.
Are these units original factory parts or surplus stock?
Sourced inventory pools span both original factory-sealed packaging and fully certified, tested surplus hardware. Every single unit undergoes rigorous bench-level validation under simulated load conditions prior to dispatch.
What communication protocol does this specific part number utilize?
The -PB- designation in the part string denotes native PROFIBUS-DP communication support for higher-level PLC integration.
What software tool is used to configure and monitor this controller?
Bosch Rexroth’s IndraWorks engineering software suite is standard for parameterization, tuning, and firmware management of IndraDrive systems.
What kind of warranty accompanies a replacement control section?
All supplied units carry a comprehensive 1-year operational warranty covering internal processor health, communication port stability, and hardware interface integrity.
Are you installing this control section into an active production drive rack or keeping it on hand as a critical system hot-spare?
