Bosch Rexroth Indramat DKC10.3-018-3-MGP-01VRS | EcoDrive Servo Controller

Description

Bosch Rexroth Indramat DKC10.3-018-3-MGP-01VRS | EcoDrive Servo Controller

Dynamic Product Introduction

Upgrading or maintaining legacy automation equipment requires exact part-number matching to ensure seamless integration with existing motion networks and motor feedback loops. Honestly, the Bosch Rexroth Indramat DKC10.3-018-3-MGP-01VRS solves this challenge directly by delivering 18 amps of continuous drive capacity within the reliable EcoDrive 03 framework, featuring the built-in MGP communication interface and 01VRS firmware. This unit handles rapid positioning cycles and multi-axis coordination reliably without drift or communication dropouts (—though verifying your exact DC bus voltage class, motor winding code, and fiber/cable connections beforehand is essential). Compared to generic third-party drives, an authentic Rexroth DKC10.3 unit preserves your original machine tuning parameters and regulatory certifications.

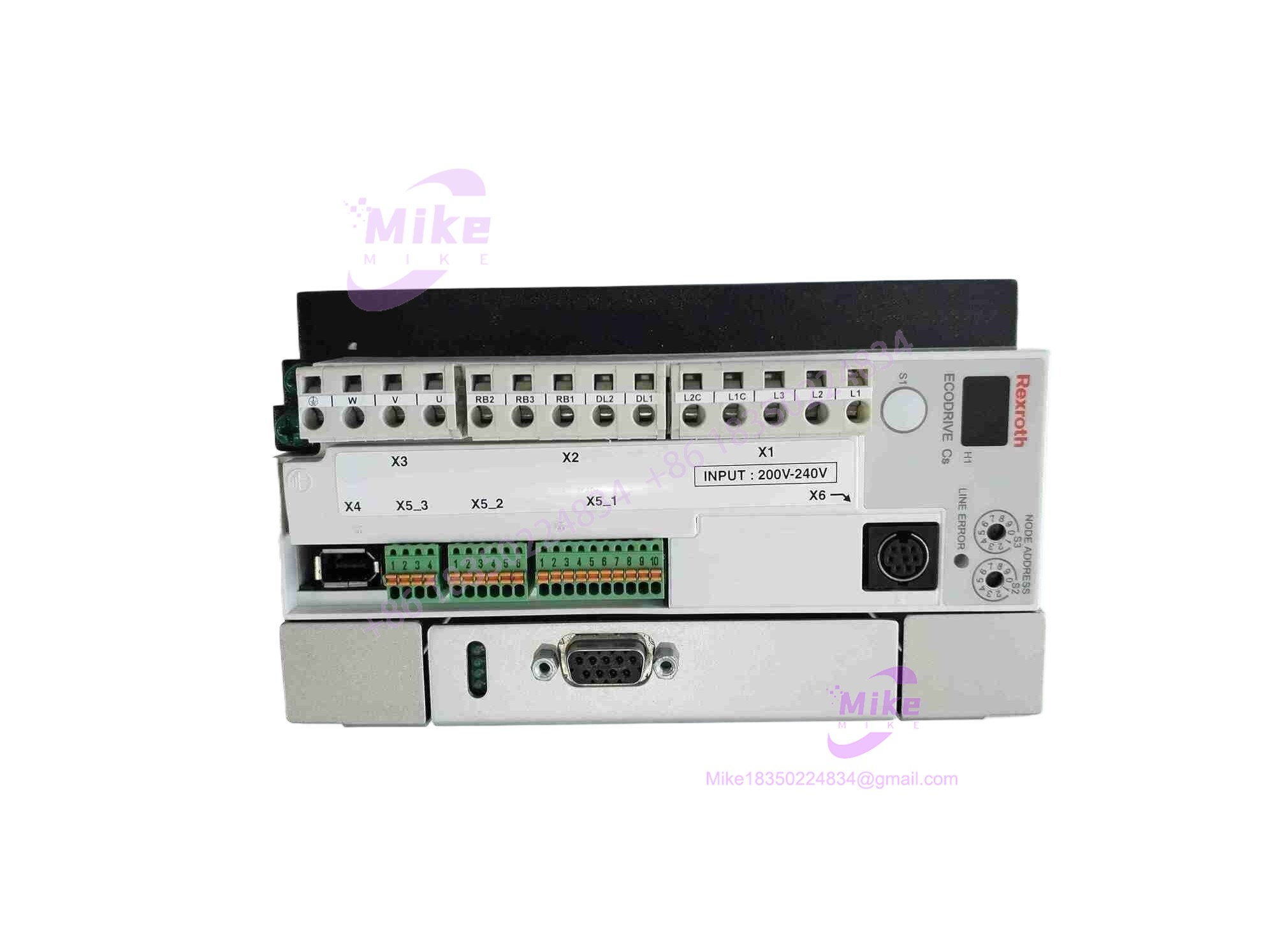

DKC10.3-018-3-MGP-01VRS

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Acquiring secondary-market legacy Indramat servo controllers requires exhaustive testing to ensure internal DC bus filter capacitors, power IGBT switching modules, and control logic boards remain uncompromised. For every inbound Bosch Rexroth DKC10.3-018-3-MGP-01VRS unit, our audit team logs serial numbers against global traceability ledgers, inspects power and control terminal blocks for thermal discoloration, and checks internal printed circuit boards for electrostatic vulnerability.

Once cleared, the drive is mounted onto a dedicated Rexroth EcoDrive simulation test bench paired with an appropriate matching servomotor. Technicians apply nominal DC bus and control power, verify pre-charge circuit operation, test PWM switching stages across all output phases under simulated loads, and confirm communication and firmware (01VRS) responsiveness. The unit is then cleaned, fitted with anti-static protection, and securely packaged for deployment.

The Field Engineer’s Pitfall Guide

❗ DC Bus Voltage Class Mismatch: Ensure you are replacing a 300V-class drive (-3-) with an identical voltage rating; installing a 300V unit onto a 700V high-bus system will cause catastrophic hardware failure.

❗ Firmware and Parameter Versioning: Swapping units requires verifying that the software configuration matches your control system parameters; always back up parameters or verify compatibility before commissioning.

❗ Feedback Shielding and Grounding: Inadequate shielding on resolver or encoder feedback cables can introduce high-frequency electrical noise, triggering drive overcurrent or position tracking faults.

Intent-Driven FAQ

• What do the “-3-” and “-MGP-” designations mean in the model number?

  The “-3-” denotes the 300V DC bus voltage class, while “-MGP-” specifies the onboard communication and interface hardware package.

• Can I replace this drive with a different firmware version like 03VRS?

  It is strongly recommended to match the exact firmware release (-01VRS) or verify backward/forward compatibility with your control architecture to avoid configuration errors.

• What type of warranty covers verified surplus Rexroth drives?

  All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.

• Are EcoDrive 03 units compatible with standard Indramat MKD motors?

  Yes, the DKC10.3 series is engineered to drive standard Rexroth MKD and MHD synchronous servo motors designed for 300V bus systems.

• How do I verify if a replacement unit has been bench-tested?

  Look for serialized QA certification labels, clean connector pins, and complete test documentation included with the hardware package.
