Bosch Rexroth Indramat DKC03.3-040-7-FW | Digital Servo Drive

Description

Bosch Rexroth Indramat DKC03.3-040-7-FW | Digital Servo Drive

Dynamic Product Introduction

Upgrading or maintaining precision multi-axis machinery requires dependable servo controllers that combine compact panel footprints with high-speed dynamic performance. Honestly, the Bosch Rexroth Indramat DKC03.3-040-7-FW solves this challenge directly by delivering 40 amps of continuous drive capacity within the mature EcoDrive 03 architecture. This unit handles rapid velocity adjustments, tight positioning loops, and multi-axis synchronization reliably without calibration drift (—though verifying your exact firmware module card, mains supply voltage, and motor feedback cable shielding beforehand is critical). Compared to standard legacy drives, the Rexroth DKC03.3 series ensures excellent noise immunity, flexible software configuration, and robust reliability across demanding industrial environments.

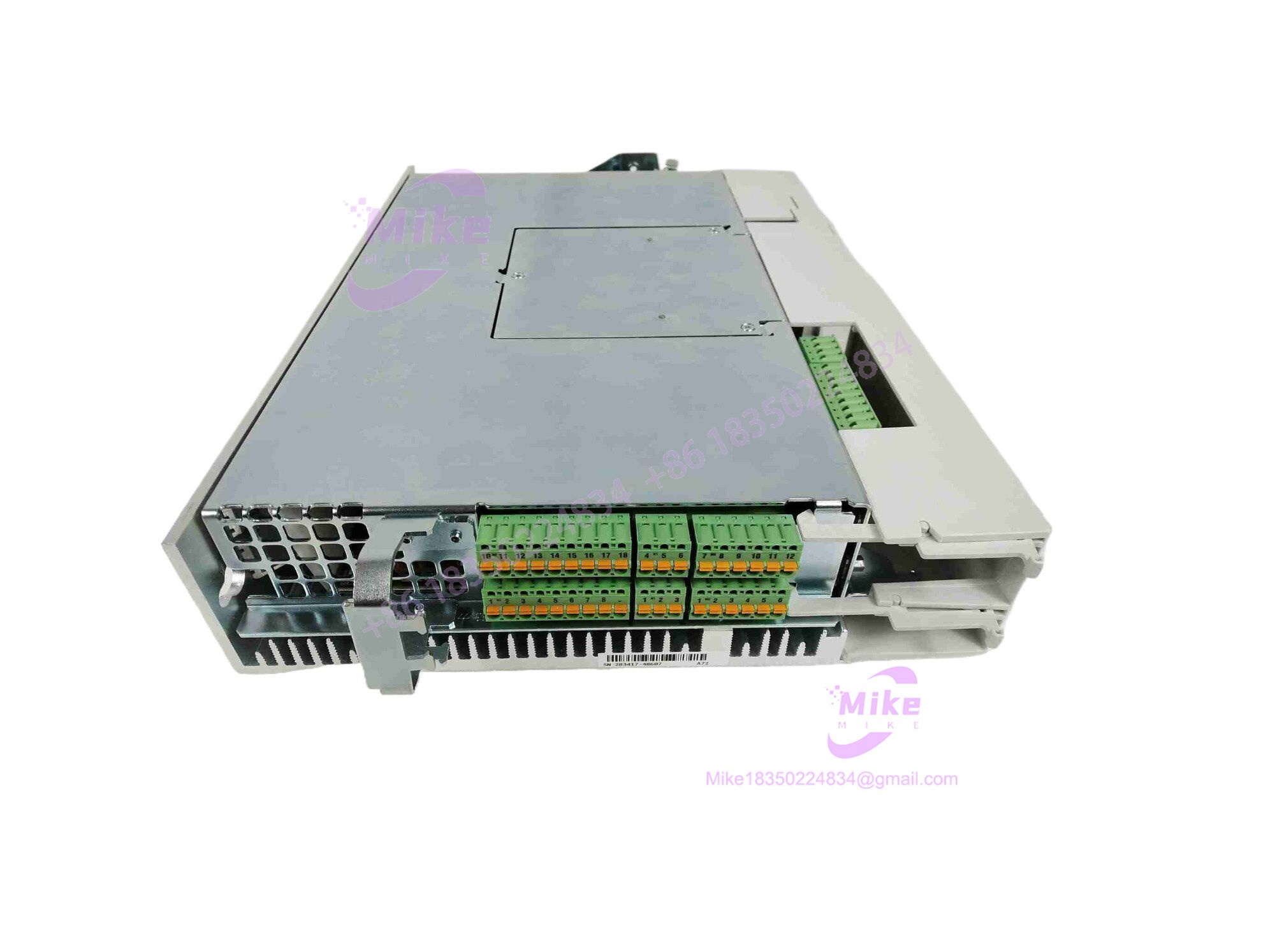

DKC03.3-040-7-FW

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Acquiring secondary-market legacy Indramat servo controllers requires rigorous testing to ensure internal DC bus filter capacitors, power IGBT switching modules, and control logic boards remain uncompromised. For every inbound Bosch Rexroth DKC03.3-040-7-FW unit, our audit team logs serial numbers against global traceability ledgers, inspects power and control terminal blocks for thermal discoloration, and checks internal printed circuit boards for electrostatic vulnerability.

Once cleared, the drive is mounted onto a dedicated Rexroth EcoDrive simulation test bench paired with an appropriate matching servomotor. Technicians apply nominal DC bus and control power, verify pre-charge circuit operation, test PWM switching stages across all output phases under simulated loads, and confirm communication and firmware responsiveness. The unit is then cleaned, fitted with anti-static protection, and securely packaged for deployment.

The Field Engineer’s Pitfall Guide

❗ DC Bus Pre-Charge Failures: Applying main power abruptly without allowing internal pre-charge circuits to settle—or operating without proper line conditioning—can damage internal bridge rectifiers and capacitors.

❗ Firmware Card Compatibility: The “-FW” designation indicates that the drive requires a valid firmware module card; swapping base units without transferring or matching the correct software card will result in initialization faults.

❗ Feedback Grounding Errors: Inadequate shielding on resolver or encoder feedback cables can introduce high-frequency electrical noise, triggering drive overcurrent or position tracking errors.

Intent-Driven FAQ

• What does the “-FW” suffix signify on the DKC03.3-040-7-FW?

  It indicates that the drive utilizes a plug-in firmware module card, which determines the specific control software and communication protocol (e.g., SERCOS, Analog, or Fieldbus) loaded into the unit.

• Can I replace a DKC base unit without the original firmware card?

  No, the firmware module card contains the essential operational software and configuration parameters required for the drive to function with your specific motor and control setup.

• What type of warranty covers verified surplus Rexroth drives?

  All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.

• Are EcoDrive 03 units compatible with standard Indramat MKD motors?

  Yes, the .3 series is engineered to drive standard Rexroth MKD and MHD synchronous servo motors seamlessly.

• How do I verify if a replacement unit has been bench-tested?

  Look for serialized QA certification labels, clean connector pins, and complete test documentation included with the hardware package.
