Bosch Rexroth MSK030B-0900-NN-M1-UG0-NNNN | Synchronous Servo Motor, Category ID
Architect’s Product Breakdown
The MSK030B-0900-NN-M1-UG0-NNNN servo motor operates as a high-performance rotary actuator within multi-axis motion control architectures. Driven by Rexroth IndraDrive controllers, it delivers precise speed regulation and rapid acceleration profiles required by packaging machinery, automated assembly cells, and material handling systems. Its low rotor inertia and high torque density optimize dynamic performance during complex contouring maneuvers.
Integrating this unit into existing systems requires verifying drive firmware compatibility and matching feedback connector pinouts. Upgrading legacy Indramat motor lines with this modern MSK model increases thermal efficiency and improves overall motion system reliability without requiring structural mechanical redesigns.
Engineering teams must account for cabinet thermal limits and proper motor grounding. Unshielded feedback cables or failure to maintain adequate convective airflow around the motor housing can lead to premature thermal tripping or electromagnetic interference across control loops.

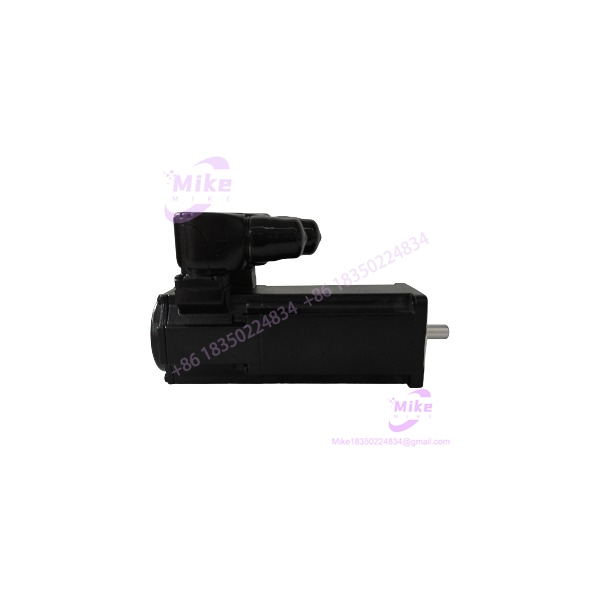

MSK030B-0900-NN-M1-UG0-NNNN
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Bosch Rexroth (Indramat) |
| Model Number | MSK030B-0900-NN-M1-UG0-NNNN |
| Motor Family | MSK Synchronous Servo Motor |
| Size / Length | Frame Size 030, Length B |
| Winding Code | 0900 |
| Cooling Type | Natural convection (Natural cooling) |
| Feedback Type | Optical encoder, multi-turn absolute |
| Shaft Design | Plain shaft (without keyway) |
| Holding Brake | Without integrated holding brake |
| Protection Category | IP65 |
Field Engineer’s Pitfall Guide
- Feedback Connector Mismatches: Forcing the circular signal connector without aligning the keyways can bend delicate internal pins, resulting in absolute encoder communication loss and drive faults. I once watched an installation crew spend a half-day debugging a phantom drive error that traced back to a misaligned feedback plug pin bent during initial assembly.
- Ignoring Shaft Seal Limitations: Operating a plain-shaft model without an optional shaft seal in an oily or wet manufacturing environment allows cutting fluids to migrate past the front bearing, destroying the internal rotor assembly.
- Unshielded Cable Runs: Failing to ground the motor power cable shield 360 degrees at the drive chassis clamp introduces high-frequency noise that disrupts nearby analog instrumentation loops.
QA & Testing SOP
- Visual & Origin Inspection: Verify OEM factory seals, check the housing and plain shaft for shipping damage, and inspect connector pin integrity against production documents.
- Live Test Environment: Couple the motor to a certified IndraDrive test stand to verify smooth commutation and velocity profile tracking under load.
- Diagnostics & Handshake Tests: Execute feedback calibration routines, verify absolute multi-turn position registers, and check winding insulation resistance with a megohmmeter.
- Preservation & Packaging: Apply protective shaft caps, seal the unit in anti-static moisture-barrier bags, and crate inside heavy-duty industrial foam packaging.
Technical FAQ
Does the MSK030B-0900-NN-M1-UG0-NNNN include an integrated holding brake?
No. The “-NN-” designation in the model string indicates that this specific configuration is supplied without an internal holding brake.
Can I run this motor with third-party servo drives?
No. MSK motors rely on proprietary digital encoder communication protocols that require a compatible Bosch Rexroth IndraDrive controller for proper commutation and operation.
Is this motor suitable for washdown environments?
It features an IP65 protection rating, protecting it against dust and water jets, but it is not designed for high-pressure sanitary washdown applications without auxiliary protective shielding.
What programming tool is used to configure the connected drive parameters?
Drive configuration and tuning are performed using the standard Bosch Rexroth engineering software environment (such as IndraWorks DS or drive-based firmware tools).
