ProSoft MVI56E-MCMR | Industrial Automation Serial Network Unit
Architect’s Product Breakdown
The ProSoft Technology MVI56E-MCMR model functions as an advanced, high-performance communication gateway engineered to integrate Modbus serial instrumentation, drives, and analyzers directly into Allen-Bradley ControlLogix automation architectures. Within industrial control layouts, this specific hardware model offloads heavy serial polling routines from the main controller, handling asynchronous data transfers across the backplane to ensure deterministic loop performance.
Integrating this communication model into an existing control cabinet requires careful verification of backplane power consumption, slot addressing, and physical serial layer wiring. Because industrial environments present severe electromagnetic interference challenges, system architects must ensure that all RS-232, RS-422, or RS-485 serial cables are properly shielded and grounded at one end to prevent packet corruption and data timeouts. Furthermore, the inclusion of an onboard Ethernet port streamlines configuration changes and diagnostic monitoring without requiring a direct physical connection to legacy serial ports.

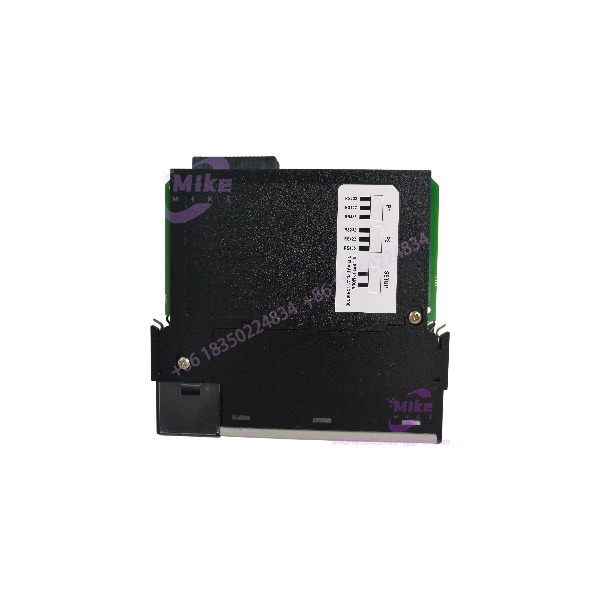

MVI56E-MCMR
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | ProSoft Technology |
| Model Designation | MVI56E-MCMR |
| System Compatibility | Rockwell Automation ControlLogix Chassis (1756 Backplane) |
| Backplane Current Load | 800 mA at 5 V DC; 3 mA at 24 V DC |
| Communication Ports | 2 x Configurable Serial Ports (RS-232, RS-422, RS-485); 1 x RJ45 Ethernet Port for Configuration/Diagnostics |
| Protocols Supported | Modbus RTU, Modbus ASCII (Master and/or Slave configurations) |
| Data Memory | Up to 10,000 internal database registers |
| Ambient Operating Temperature | 0°C to 60°C |
| Enclosure Rating | IP20 Open-style industrial module |
Field Engineer’s Pitfall Guide
- WARNING: Backplane Slot Power Limitations. Never insert this module into a heavily populated chassis without verifying available 5V DC backplane capacity. Overloading a rack power supply will cause intermittent module reboots and fault out the main controller.
- WARNING: Serial Port Transceiver Damage. Double-check physical layer configuration jumpers or software settings before landing field wiring. Connecting high-voltage differential lines to an improperly configured port will burn out internal transceivers.
- WARNING: Ethernet Port Ground Loops. Ensure that diagnostic laptops connected to the onboard Ethernet port are properly isolated if connected to external plant power grids during live troubleshooting.
QA & Testing SOP
- Visual & Origin Verification: Inspect the molded circuit board housing for physical defects, verify OEM serial tracking labels, and check backplane connection pins for oxidation or bending.
- Chassis Seating Test: Mount the MVI56E-MCMR model into an isolated ControlLogix test rack and power up the backplane to verify normal LED status initialization.
- Port Loopback & Communication Test: Connect a serial loopback harness to both application ports and ping the Ethernet configuration port to verify error-free packet transmission and register mapping.
- Packaging: Seal in heavy-duty anti-static shielding material and pack with dense anti-static foam inside a rigid outer carton.
Technical FAQ
Can this enhanced module act as both a Modbus Master and a Modbus Slave simultaneously?
Yes. Each of the dual application ports on this communication model can be independently configured to operate as either a Modbus Master or a Modbus Slave.
What distinguishes the MVI56E-MCMR model from standard legacy MVI56 units?
The E-Series designation indicates an upgraded hardware platform featuring an onboard Ethernet port for rapid configuration, web-based diagnostics, and expanded internal database register capacity.
Does this module require ladder logic programming for basic operation?
Yes, ladder logic or Add-On Instructions (AOIs) are required within the ControlLogix processor program to transfer data blocks between the module memory registers and processor tags.
Can this module be hot-swapped in a live industrial control rack?
Hot-swapping is generally not recommended unless explicit plant live-maintenance policies, chassis power supplies, and processor fault-handling routines support unseating active backplane modules.
