Saia Burgess PCD3.W610 | Analog Output Module Key Spec Data
Architect’s Product Breakdown
The Saia Burgess PCD3.W610 operates as a high-performance analog output module within modular programmable logic controller architectures, bridging internal controller logic with field control devices. In continuous process and automation environments where precise positioning or speed regulation is required across valves and variable frequency drives, maintaining high signal fidelity and fast conversion times is essential. This specific hardware model provides 4 independent output channels featuring 12-bit resolution, accommodating both voltage and current loop configurations to match diverse actuator requirements.
Deploying or replacing this analog module model requires strict attention to shielding practices, power supply separation, and terminal configuration. When performing maintenance swaps, engineers must ensure that field actuator commons are properly isolated and that output selections match the software configuration in the PG5 control suite. Omitting proper cable shielding or running analog signal wires parallel to high-voltage power lines can introduce electromagnetic interference, resulting in unstable actuator positioning.

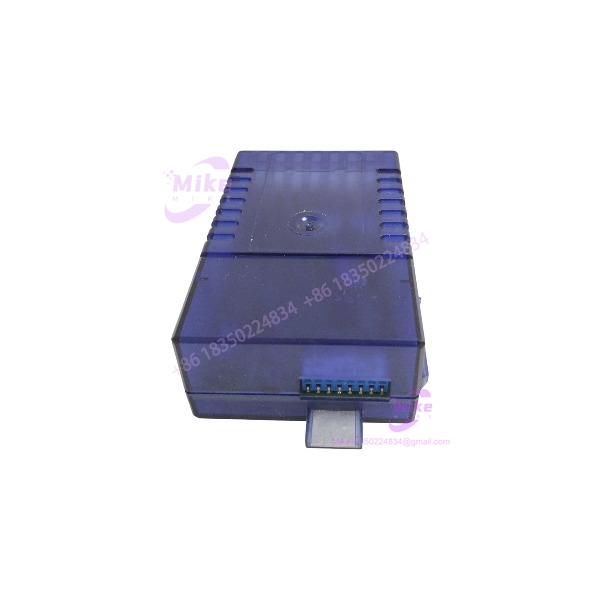

PCD3.W610
Key Technical Specifications
- Manufacturer: Saia Burgess Controls (Honeywell)
- Product Category: Analog Output Module
- Part Number / Catalog No.: PCD3.W610
- Number of Channels: 4 analog output channels
- Resolution: 12-bit digital-to-analog conversion
- Output Signal Ranges: Software/Jumper selectable for 0 to 10 V, -10 to +10 V, and 0 to 20 mA
- Termination Type: Removable plug-in spring or screw terminal blocks (accommodating up to 1.5 mm^2 wire)
- Operating Temperature Range: 0°C to +55°C (standard industrial threshold)
- Relative Humidity Limit: 10% to 85% (non-condensing)
- Mounting Type: DIN Rail / PCD3 Modular System Rack
- Weight: Approximately 100 g
Field Engineer’s Pitfall Guide (Unique Value)
- Hot-Swapping Under Power: Never insert or remove the PCD3.W610 module while the rack power supply or field circuits are energized. Doing so can arc backplane pins and corrupt local I/O communications.
- Ignoring Cable Shield Grounding: Failing to properly ground the shielding drain wire of analog signal cables at one end will introduce common-mode noise, causing jitter or drift in actuator response.
- Mismatched Software and Hardware Configuration: When swapping this module model, verify that the channel software configuration in the PG5 suite matches the physical wiring configuration (e.g., current vs. voltage mode) to prevent drive or valve control saturation.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo physical inspection to confirm clean PCB traces, secure housing latches, and authentic OEM labeling.
- Live Test Bench Environment: Modules are inserted into a validation PCD3 test rack powered by regulated supplies to evaluate backplane communication stability.
- Signal Calibration & Linearity Testing: Technicians measure output voltage and current across all 4 channels under active test loads to verify conversion accuracy and channel linearity.
- Anti-Static Packaging: Post-testing units are wrapped in static-dissipative shielding material and packed with protective cushioning foam to prevent transit damage.
Technical FAQ
Can I hot-swap the PCD3.W610 module while the PLC rack is powered?
No. I/O modules and terminal blocks must only be inserted or removed when both the PCD controller rack and external power supplies are completely disconnected.
Does this module support both voltage and current outputs?
Yes. The PCD3.W610 supports multiple output signal configurations including 0 to 10 V, -10 to +10 V, and 0 to 20 mA depending on the specific application setup.
What causes an output channel to lock at zero or maximum rail during runtime?
A locked output typically points to an open load condition on current loops, a short circuit on voltage outputs, or an unhandled communication fault between the CPU and the I/O backplane.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed modules typically carry a 12-month operational warranty covering material and manufacturing defects under standard industrial environments.
