RPSTECH DMP10.24-20 | Redundant Power Module Core Category

Description

RPSTECH DMP10.24-20 | Redundant Power Module Core Category

Dynamic Product Introduction

Scaling up automation panels invariably demands higher amperage stability across crowded I/O racks without blowing thermal limits. Integrating the RPSTECH DMP10.24-20 addresses this exact constraint by doubling the current delivery capacity of standard distribution blocks while retaining active redundancy switching. Unlike smaller 10A variants that can saturate quickly under heavy solenoid or actuator loads, this unit provides a reliable current buffer for demanding process environments.

In field deployments, maintaining stable voltage rails during simultaneous startup sequences eliminates nuisance controller resets. The DMP10.24-20 pairs heavy-duty rectification stages with an optimized thermal footprint, preventing hot spots inside tightly packed control enclosures.

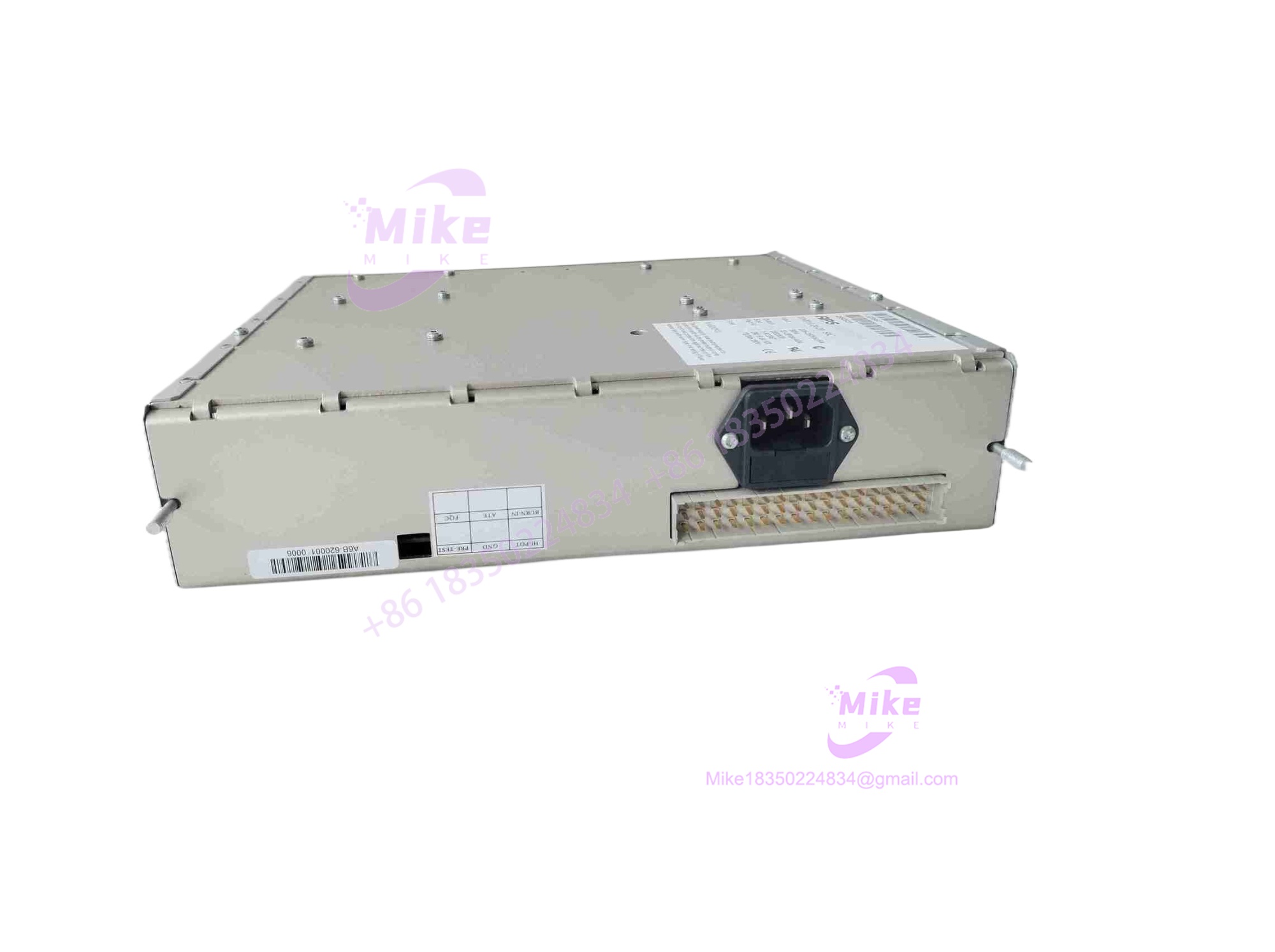

DMP10.24-20

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

High-amperage replacement hardware requires rigorous verification before installation to prevent catastrophic bus faults. Our fulfillment workflow follows a strict validation pipeline:

• Inbound Verification: Incoming DMP10.24-20 units undergo visual anti-counterfeit checks, verifying laser-etched serial numbers and matching shipping paperwork against original factory export logs.
• Live Simulation: Technicians mount the hardware onto a high-load test rig simulating full 20A continuous draw.
• Diagnostics: Fluke digital multimeters and high-resolution scopes measure ripple voltage and verify transient response times. The unit undergoes a full 24-hour thermal burn-in run at maximum load to test transformer and diode stability.
• Final Prep: Technicians document the exact hardware revision, apply ESD-safe protective wrapping, and seal the unit in moisture-barrier packaging.

The Field Engineer’s Pitfall Guide

❗ Underestimating Thermal De-rating Requirements: Pushing the DMP10.24-20 near its 20A ceiling inside a poorly ventilated enclosure will trigger internal thermal protection. I’ve seen technicians lose critical loops because they ignored cabinet ambient temperature curves and left zero clearance space above the unit.

❗ Inadequate Cable Gauge Selection: Replacing a lower-amperage module with this 20A variant requires upgrading the primary feed wiring. Using legacy thin-gauge wire will cause severe voltage drop and potential insulation breakdown.

❗ Unbalanced Dual-Feed Load Sharing: When wiring dual input channels, failing to verify equal impedance on both feeds causes one branch to shoulder the entire load, negating true redundancy.

Intent-Driven FAQ

Will swapping the DMP10.24-20 affect my existing logic or PLC configuration?

No. Because this unit functions purely on the power distribution layer, swapping it out does not alter non-volatile controller logic or software tags, provided power is safely isolated first.

Can I use the .24-20 as a direct drop-in replacement for the smaller 10A model?

Physically and functionally yes, provided your cabinet has the extra physical clearance and your upstream supply cables are rated for the higher 20A load capability.

What kind of warranty comes with surplus or replacement units?

Verified units include a standard 365-day operational warranty covering any internal electronic failures or manufacturing defects.

How do I verify that the internal redundancy circuits are functioning properly?

You can perform a live diagnostic check by selectively isolating each input feed while monitoring output voltage stability via the front diagnostic terminals or an external multimeter.

Is the .24-20 suitable for hot-swap replacement operations?

While the internal architecture supports redundant switching, standard plant safety rules require turning off primary input power to prevent terminal arcing and protect sensitive downstream electronics.
