ProSoft 5204-DFNT-PDPMV1 | EtherNet/IP to PROFIBUS DP-V1 Gateway
Product Introduction
When a modern plant migration or machinery upgrade requires connecting Rockwell Automation EtherNet/IP controllers with legacy PROFIBUS DP-V1 remote I/O drops, writing custom ladder logic message instructions creates severe network overhead and configuration bottlenecks. The ProSoft 5204-DFNT-PDPMV1 is not a generic office network bridge; it is a dedicated standalone protocol gateway built on the robust ProLinx communication platform. It acts as an intelligent translator to map cyclic and acyclic data cleanly between isolated industrial networks.
Built into a compact modular housing format designed for standard industrial deployment, this unit handles complex multi-protocol routing without taxing the host automation controller. It operates reliably under harsh ambient conditions—withstanding standard industrial panel temperatures up to 50^\circC—while maintaining stable data synchronization. If you are integrating PROFIBUS drives into an EtherNet/IP control architecture, this gateway drops right into your communication loop.

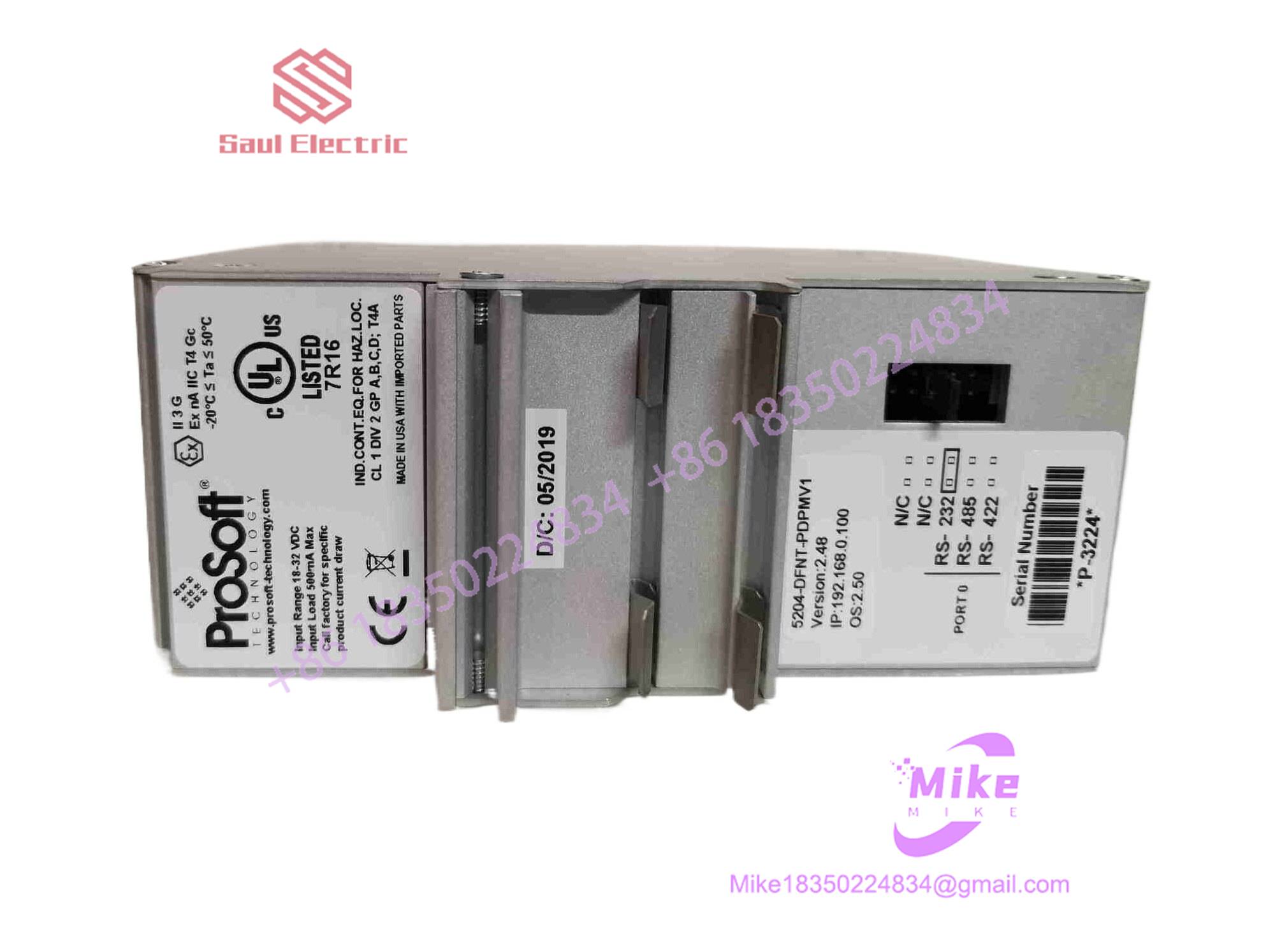

5204-DFNT-PDPMV1
Key Technical Specifications
| Parameter | Specification Metric |
| Device Category | Standalone Protocol Gateway Module |
| Product Series | ProSoft ProLinx Communication Family |
| Primary Network Port | EtherNet/IP (RJ45 10/100 Base-TX Ethernet) |
| Fieldbus Port | PROFIBUS DP-V1 Master interface (DB-9 Female connector) |
| Supported Protocols | EtherNet/IP (Adapter/Scanner), PROFIBUS DP-V1 Master (cyclic & acyclic data) |
| Enclosure / Mounting | Industrial modular packaging for backplate or DIN rail installation |
| Diagnostic Indicators | Front-panel LED status array for power, network activity, and PROFIBUS health |
| Operating Temperature | 0^\circC to +50^\circC standard industrial range |
Application Scenarios & Pain Points
- Rockwell ControlLogix to PROFIBUS Integration: Plant expansions frequently merge Allen-Bradley PLC architectures with existing European machinery utilizing PROFIBUS DP drives and sensors. The 5204-DFNT-PDPMV1 handles DP-V1 cyclic/acyclic communication smoothly without requiring hardware replacement.
- Automotive Manufacturing Conveyor Skids: Body shop material handling systems often combine Ethernet-based supervisory controllers with distributed PROFIBUS motor control centers. This gateway ensures deterministic data exchange across both networks.
- Packaging Machinery Retrofits: Upgrading an older machine control system while keeping legacy PROFIBUS field devices intact saves significant capital cost and downtime via standalone protocol conversion.
QA & Live Testing SOP (Trust Signal)
We don’t warehouse legacy communication gateways without verifying port and translation integrity; every 5204-DFNT-PDPMV1 unit goes through our rigorous bench protocol:
- Visual & Port Audit: Inspected under magnification for pin stability on the RJ45 Ethernet receptacle, DB-9 PROFIBUS port health, and complete absence of housing stress or internal component wear.
- Dynamic Network Loop Verification: Connected to a live communication test rig to verify that the EtherNet/IP implicit/explicit messaging handshakes correctly and that data packets map cleanly across the PROFIBUS DP-V1 master channels.
- Protocol Translation Stress Test: Subjected to continuous polling simulations to ensure zero packet drop, buffer overflow, or register mismatch during high-traffic execution.
- Protective Packaging: Sealed inside heavy-duty anti-static barrier bags and packed with high-density structural foam to prevent transit vibration damage.
Field Engineer’s Pitfall Guide
- ❗ PROFIBUS Termination and Baud Rate: Verify that your PROFIBUS cable trunk features active terminating resistors at both physical ends and that your baud rate matches the connected slave devices precisely.
- ❗ EtherNet/IP IP Addressing Overlaps: Always configure your network subnet masks and IP assignments offline to avoid duplicate IP conflicts on the plant Ethernet backbone.
- ❗ Power Supply Voltage Stability: Fluctuating 24VDC auxiliary power rails can cause intermittent gateway reboots, dropping network connections and triggering system-wide communication alarms.
Intent-Driven FAQ
Is the ProSoft 5204-DFNT-PDPMV1 capable of handling DP-V1 acyclic messaging?
Yes. The module supports both cyclic I/O data exchanges and acyclic parameter read/write commands (DP-V1), allowing seamless configuration of intelligent field devices from an EtherNet/IP controller.
Does this gateway require specialized software for configuration?
Yes, ProLinx modules typically utilize ProSoft Configuration Builder (PCB) software alongside a serial configuration cable to map internal database registers between EtherNet/IP and PROFIBUS networks.
What causes a persistent network fault LED on startup?
A lit fault indicator usually indicates an incorrect IP address conflict on the Ethernet port, an unassigned database data map, or a configuration mismatch with a connected PROFIBUS slave node.
Can the PROFIBUS port operate as a Slave instead of a Master?
The 5204-DFNT-PDPMV1 is specifically optimized as a PROFIBUS DP-V1 Master to control downstream slave devices. If your architecture requires a slave configuration, alternative ProLinx part number variants should be evaluated.
What kind of warranty covers this surplus communication gateway?
Every unit is backed by our comprehensive replacement guarantee, supported by multi-point pre-shipment bench testing to verify hardware communication stability.
