Lam Research 810-017034-005 | Semiconductor Controller Board

Description

Lam Research 810-017034-005 | Semiconductor Controller Board

Dynamic Product Introduction

Maintaining maximum wafer output in high-volume semiconductor fabs requires deterministic timing and noise-free signal routing across the tool’s card cage. The Lam Research 810-017034-005 is an OEM printed circuit board assembly engineered to manage low-level real-time communications, sensor telemetry, and actuator routines inside Lam plasma etch and thin-film deposition chambers.

Designed to slot directly into standard VME/rack card cages, the 810-017034-005 features high-reliability surface-mount logic ICs, non-volatile memory modules for storing calibration profiles, and heavy-duty backplane edge connectors. Its rigid substrate construction isolates sensitive digital control lines from high-frequency RF interference generated by nearby plasma impedance matching networks. For fab maintenance teams and refurbished equipment specialists restoring legacy Lam tool platforms, sourcing a bench-verified 810-017034-005 card ensures rapid system recovery and reliable process repeatability.

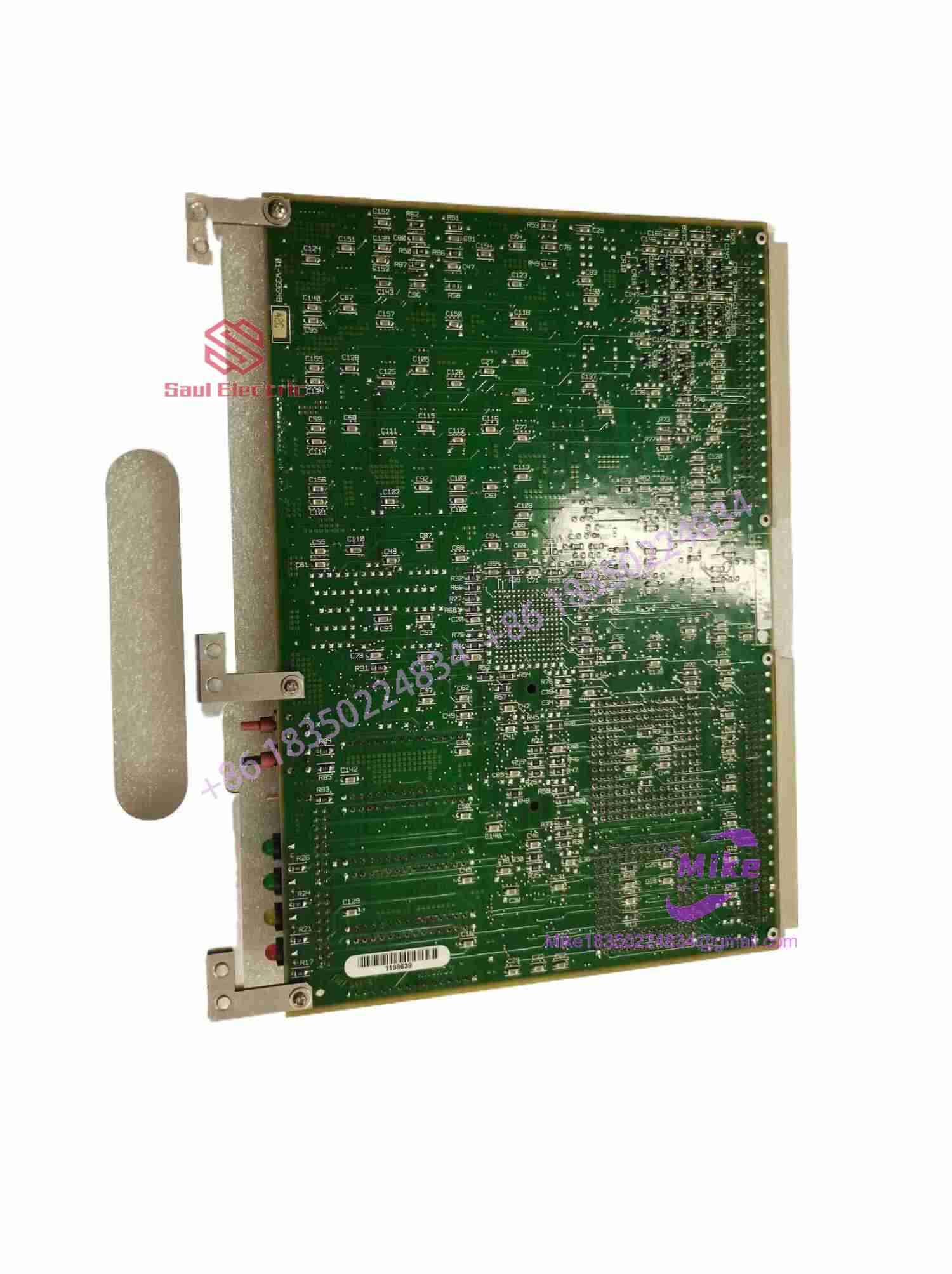

810-017034-005

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

To ensure fail-safe integration into precision fab equipment, every pre-owned or stock Lam 810-017034-005 board undergoes a rigorous quality validation workflow prior to dispatch:

Inbound Verification & Physical Audit

• Traceability Review: Checking OEM silk-screening, assembly dash code (810-017034-005), artwork revision level, and barcode serial tags against Lam engineering standards.
• Microscopic Inspection: High-magnification optical audit under 30x magnification to examine solder joints, socketed chips, traces, and backplane connector pins for bends, oxidation, or thermal fatigue.

Live Bench Simulation

• Power & Bus Impedance Check: Measuring resistance across primary DC power rails prior to energizing to verify zero short-circuit conditions.
• Backplane Bus Simulation: Inserting the card into a test backplane to confirm clean boot initialization, address decoding, and stable communication across bus logic lines.

Diagnostic & Thermal Audit

• NVRAM & Memory Check: Verifying data integrity across socketed memory ICs and testing read/write cycles on onboard RAM/registers.
• Thermal Stress Monitoring: Running continuous bus cycles under nominal ambient temperatures while inspecting heat signatures via infrared thermography to rule out latent component breakdown.

Final Prep & Cleanroom Packaging

• Chemical Decontamination: Precision ultrasonic bath cleaning using cleanroom-grade isopropyl alcohol (IPA) to eliminate particulate matter and ionic residues.
• ESD Cleanroom Sealing: Vacuum-sealed in anti-static shielding bags with active desiccant and secured inside ESD-safe foam packaging for international air transport.

The Field Engineer’s Pitfall Guide

❗ Handling Without Grounded ESD Protection

Semiconductor control cards house static-sensitive CPLDs, microcontrollers, and logic ICs. Touching board contacts or socketed chips without an ESD-grounded wrist strap can induce latent gate breakdown, leading to intermittent tool lockups weeks after installation.

❗ Inserting Under Power (Hot-Plugging)

Unless explicitly permitted in your tool platform’s service manual, never insert or remove the 810-017034-005 while the card cage backplane power supply is energized. Voltage transients during pin insertion can ruin onboard line drivers and backplane transceivers.

❗ Mismatched Dash Numbers or EPROM Revisions

Ensure the -005 dash number and onboard firmware/EPROM stickers match your original hardware configuration. Installing mismatched revisions can trigger system software load errors during the tool’s boot-up diagnostic sequence.

Intent-Driven FAQ

Which specific Lam Research systems utilize the 810-017034-005 PCB?

This board assembly is primarily used in Lam Research semiconductor tool card cages, including 2300 Series, Alliance, and legacy Rainbow platform architectures. Always cross-reference your tool’s parts manual.

Can the socketed memory chips on the board be transferred from my old card?

Yes. If your original 810-017034-005 card suffered a power regulator failure but its firmware chips remain intact, socketed EPROMs/NVRAMs can typically be transferred to the replacement board using proper IC extractor tools and ESD precautions.

What should I check if the tool fails to recognize the board upon boot?

Confirm that the card is fully seated and locked into the backplane connectors, verify that power rail voltages (+5V, ±12V) are within tolerance, and check that bus address jumpers match the original board configuration.

How is the board protected against contamination during shipping?

All boards are cleaned, sealed in vacuum-tight ESD shielding bags with active desiccant packs, and cushioned in custom static-dissipative foam containers built to survive international transit.

What warranty is included with certified replacement boards?

Fully tested surplus and replacement Lam 810-017034-005 cards include a standard 12-month operational warranty covering power regulation, bus communications, and component performance under standard fab operating conditions.
