FANUC A17B-3900-0124 Replacement | 32MB FROM / 2MB SRAM Module

Description

FANUC A17B-3900-0124 Replacement | 32MB FROM / 2MB SRAM Module

Architect’s Product Breakdown

The A17B-3900-0124 serves as a vital non-volatile and volatile storage subsystem inside modern FANUC robot controllers. Designed to plug directly into the main CPU board architecture, it holds the core system software (FROM) required to boot the controller alongside user-defined TP programs, system variables, and offsets protected by SRAM. When storage capacity is bottlenecked or memory chips degrade from age, this module acts as the direct hardware swap solution to restore full data retention capabilities.

Deploying or replacing this memory module requires strict adherence to static control and systematic data backups. Because all robot mastering data, application parameters, and custom logic reside in the memory space managed or hosted by this card, failing to pull a complete FROM/SRAM image prior to extraction results in catastrophic data loss. Technicians must also verify backup battery health on the controller rack to ensure the new module’s SRAM space retains data cleanly through power cycles.

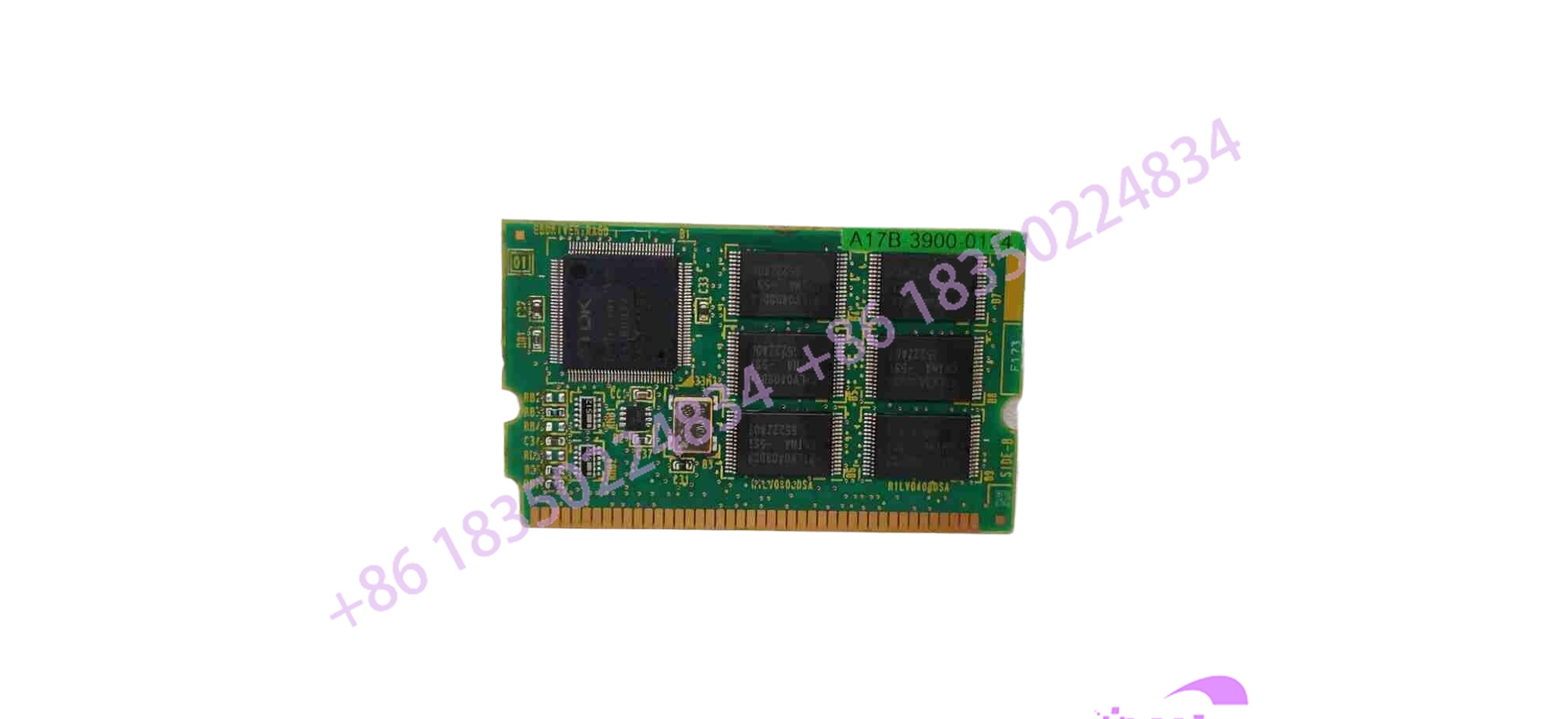

A17B-3900-0124

Key Technical Specifications

Field Engineer’s Pitfall Guide

• Static Discharge and Chip Vulnerability: Warning: The integrated circuit components on this memory board are exceptionally sensitive to electrostatic discharge. Always use a grounded ESD wrist strap and handle the PCB by its outer edges; touching the exposed connector pins or surface-mount leads instantly corrupts or ruins the module.
• Forgetting a Full Image Backup: Do not swap this card blindly. I have seen maintenance teams lock up an entire robotic cell because they pulled a failing memory module without performing an external device backup (PCMCIA/USB image save), losing unique mastering and application variables permanently.
• Ignoring Battery Voltage Stability: Installing a fresh memory card while the controller’s SRAM backup battery is exhausted or failing will cause immediate data dropouts upon the next power-down. Always measure battery voltage rails before commissioning a replacement module.

QA & Testing SOP (Transparency)

• Visual & Origin Verification: Incoming boards are inspected under magnification for physical substrate cracks, bent interface pins, and genuine OEM manufacturer labeling.
• Static Bench Continuity Check: Technicians verify power and ground trace integrity across the board-to-board connector interface to prevent short-circuiting the main CPU rack.
• Live Controller Boot Simulation: The module is inserted into a dedicated R-30iB test rack to evaluate flash read/write stability and verify complete system boot sequences without parity errors.
• Data Retention Stress Test: The unit undergoes thermal cycling and simulated power-off retention trials to confirm that the SRAM data-holding circuits perform reliably prior to anti-static vacuum sealing.

Technical FAQ

Can I use the A17B-3900-0124 module interchangeably in an older R-30iA controller?

No. This memory module is specifically engineered for the bus structures and software footprints of the R-30iB generation and is not backward-compatible with R-30iA or R-J series architectures.

Does replacing this FROM/SRAM module erase my robot’s mastering data?

Yes. Because user programs, system variables, and axis mastering data live on the SRAM side of this module, a raw hardware swap leaves the board completely blank. You must restore a valid backup image immediately after installation.

Are the internal batteries mounted directly on this module?

No. While this card handles the memory storage chips, the SRAM backup voltage is typically supplied by the controller’s main battery box assembly. Always check that remote or rack-mounted batteries are active.

Is component-level repair viable for a corrupted flash chip on this board?

Due to multi-layer PCB construction and proprietary embedded firmware code, component-level chip replacement in the field is impractical. Full module replacement or factory-certified exchange ensures total system reliability.
