FANUC A06B-6240-H209 | Servo/Spindle Amplifier Module, In Stock
Architect’s Product Breakdown

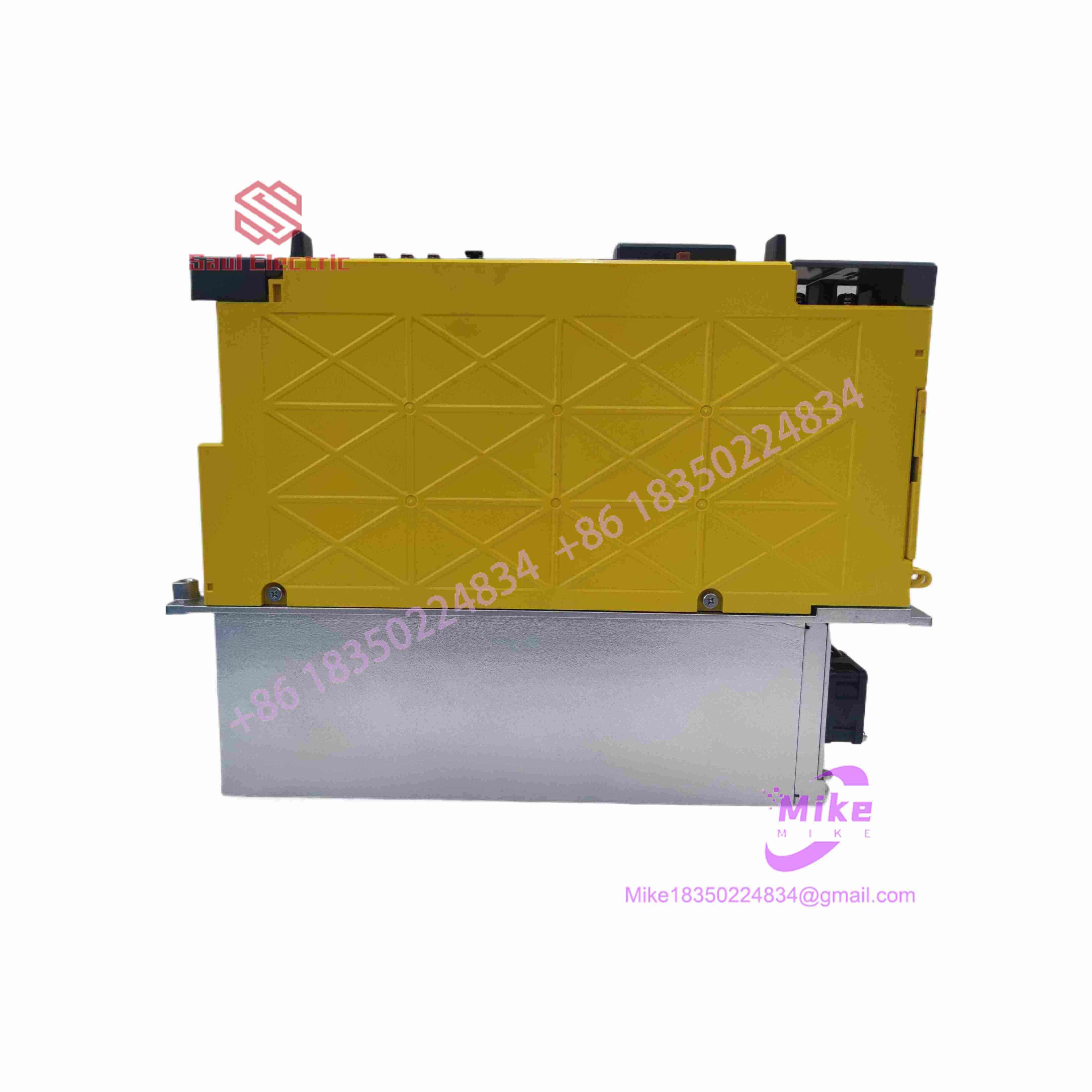

The A06B-6240-H209 represents a space-saving hybrid engineering approach by housing two servo drive channels and a spindle control inverter within a single robust chassis. This configuration slims down electrical cabinet footprints in complex multi-axis turning centers and milling machines. It processes high-speed FSSB optical commands from the main CNC controller, transforming intermediate DC bus voltage into precisely regulated power for both motion feed axes and rotational cutting spindles.
Deploying a multi-function module of this scale demands extreme precision during installation. Because a single hardware failure can disable multiple machine functions, technicians must verify that incoming 3-phase power lines are balanced, cooling airflow channels are completely unobstructed, and optical fiber loops are free of microscopic contaminants. When replacing this unit, always download and verify the current amplifier parameter set to prevent axis tracking errors or spindle orientation faults.
A06B-6240-H209
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | FANUC |
| Part Number | A06B-6240-H209 |
| Series | Alpha iSV-SP (Servo/Spindle Combined Amplifier) |
| Module Type | Dual-Axis Servo and Single Spindle Amplifier Unit |
| Control Interface | FSSB (FANUC Serial Servo Bus) / Optical Fiber |
| Input Voltage | 3-Phase 200V to 240V AC |
| Cooling Method | Internal Forced Air / Heatsink Conduction |
| Protection Rating | IP00 (Open-type equipment for cabinet mounting) |
| Operating Temperature | 0°C to 55°C |
Field Engineer’s Pitfall Guide
- Lethal DC Bus Voltage Retention: Warning: Never disconnect incoming power or motor leads immediately after dropping the main breaker. The massive internal electrolytic capacitors hold high-voltage DC charge. Always wait a minimum of 15 minutes and confirm zero voltage with a multimeter across the DC link terminals before touching the hardware.
- FSSB Optical Transceiver Contamination: Do not touch the polished tips of the optical patch cables. I have watched maintenance teams spend entire shifts chasing sudden spindle communication drops simply because an oily fingerprint blocked the light pulse passing between modules. Clean strictly with lint-free optical wipes.
- Thermal Overload from Choked Heatsink Tunnels: Because this unit packs dual servo circuits and a spindle inverter into one chassis, its internal thermal density is exceptionally high. If enclosure filter mats are neglected, dust buildup restricts internal airflow, triggering sudden over-temperature faults right in the middle of heavy roughing cycles.
QA & Testing SOP (Transparency)
- Visual & Structural Audit: Incoming units undergo deep physical evaluation for cracked housing plastics, burned circuit traces, and legitimate OEM label verification.
- Bench-Top Power Stage Testing: Technicians mount the amplifier on a dedicated test rig connected to an isolation transformer to evaluate soft-start charging circuits and gate driver behavior under nominal AC voltage.
- FSSB Communication Handshake: The module is looped into an active test rack to verify real-time command tracking, multi-axis synchronization, and error-reporting telemetry.
- Thermal Soak & Packaging: Units complete a multi-hour operational run test under load to confirm thermal stability before being wrapped in anti-static shielding and sealed in moisture-barrier packaging.
Technical FAQ
Can I hot-swap this combined servo/spindle amplifier while the machine control is powered on?
No. Hot-swapping power electronics or optical lines on live control buses risks severe electrical arcing, destruction of solid-state gates, and total network corruption. Always execute a complete lockout/tagout (LOTO) procedure.
What triggers an Alarm 401 or spindle communication fault after installing a replacement unit?
This typically points to an FSSB configuration mismatch, unassigned axis/spindle IDs, or an optical cable seating issue. The CNC controller requires proper parameter mapping to recognize the new hardware addresses.
Are the internal cooling fans field-replaceable on this model?
Yes, the front-loading cooling fan assemblies on Alpha i combined amplifiers are built for modular field replacement. However, ensure main power is completely off and discharged before sliding out the assembly.
Does this drive require specific software version matching with the power supply module?
Yes. The entire Alpha i drive lineup depends on tightly synchronized internal firmware protocols. Mixing mismatched hardware generations without checking system software compatibility can cause unrecoverable startup faults.
