Delta DELCOM-3222 | Industrial Serial Data Converter & I/O Interface
Dynamic Product Introduction
Integrating legacy serial devices into modern multi-drop automation networks requires reliable signal conversion and robust isolation to prevent data collisions over long cable runs. Honestly, the Delta DV-Net DELCOM-3222 solves this challenge directly by serving as a dependable hardware bridge between RS-232C equipment and long-distance RS-485 communication loops. This module handles signal conversion without protocol translation overhead, ensuring transparent data transmission for PLCs, operator interfaces, and industrial instrumentation (—though verifying your baud rate configurations, parity settings, and termination resistor jumpers beforehand is critical). Compared to generic commercial converters, the Delta DELCOM-3222 is engineered specifically for harsh industrial electrical environments, maintaining signal integrity across noisy manufacturing floors.

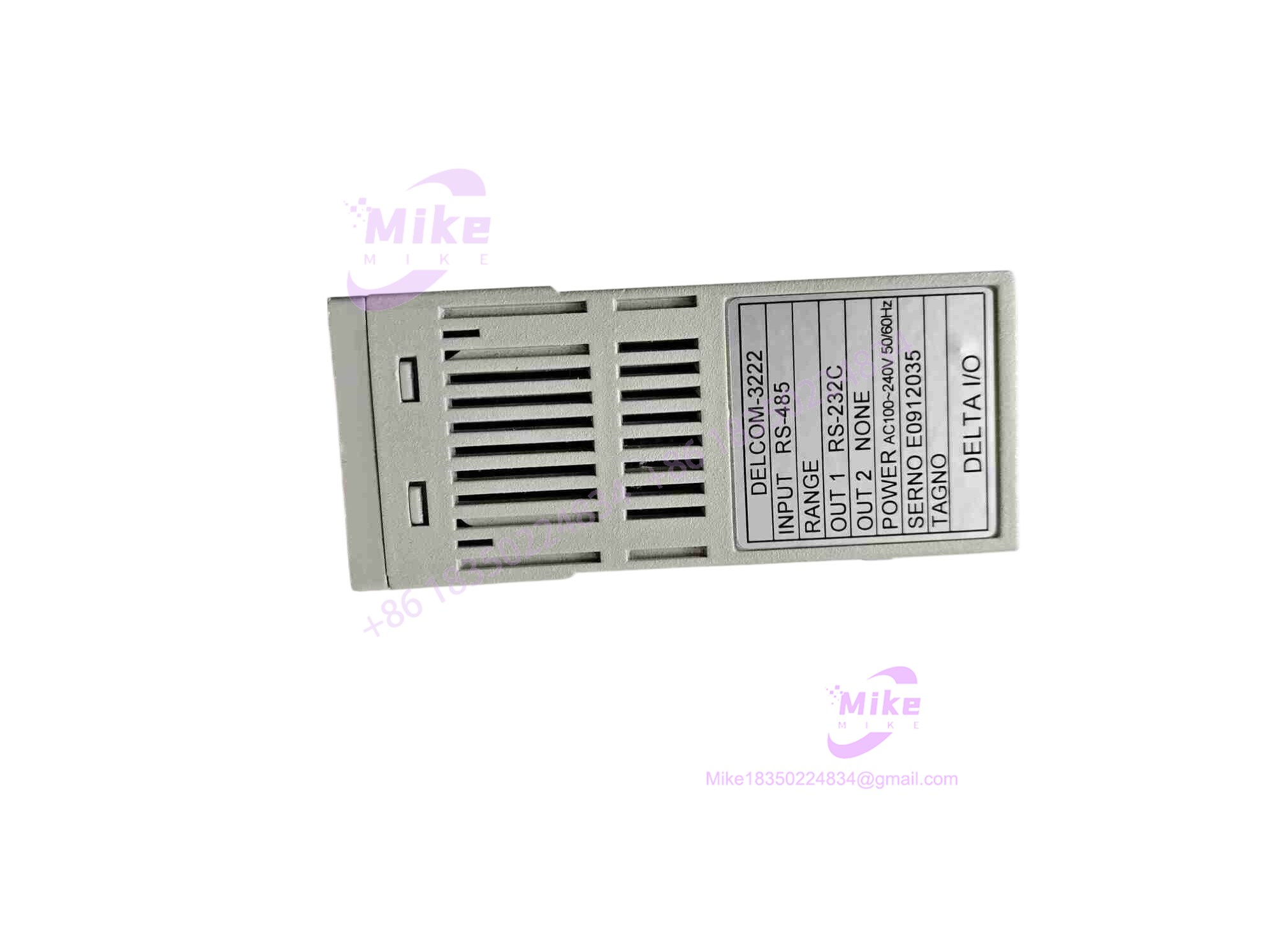

DELCOM-3222
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | Delta Electronics DV-Net Communication Line |
| Model Designation | DELCOM-3222 (RS-485 / RS-232C Converter & Interface) |
| Communication Ports | RS-232C interface port & RS-485 multi-drop screw terminals |
| Power Supply Input | Standard industrial AC power rails (e.g., AC 100–240V, 50/60Hz depending on sub-tier) |
| Transmission Distance | Up to 1,200 meters (nominal limit for standard RS-485 lines) |
| Baud Rate Support | Configurable standard industrial baud rates |
| Enclosure / Mounting | Compact industrial DIN-rail or panel-mount hardware package |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market legacy communication modules requires rigorous testing to ensure internal transceiver chips, optocouplers, and power regulation circuits remain fully functional. For every inbound Delta DELCOM-3222 unit, our audit team logs serial numbers against traceability records, inspects terminal blocks for oxidation or mechanical stress, and checks internal circuit boards for thermal wear or electrostatic vulnerability.
Once cleared, the module is mounted onto a dedicated serial loop simulation test bench. Technicians apply nominal AC power input, establish live RS-232C communication from a host PC, loop back data packets across the RS-485 terminal interface, and verify error-free bit transmission across varying baud rates. The unit is then cleaned, fitted with anti-static packaging, and prepared for deployment.
The Field Engineer’s Pitfall Guide
❗ Improper Biasing and Termination: Failing to install correct line-terminating resistors (typically 120\,\Omega) at both ends of a long RS-485 run can cause signal reflections, packet loss, and communication timeouts.
❗ Ground Loop Interferences: Connecting the signal ground shields improperly between high-voltage equipment and the DELCOM-3222 can induce common-mode voltage spikes, damaging internal transceiver ICs.
❗ Baud Rate Mismatch: Ensure that all devices sharing the RS-485 bus are configured to the exact same baud rate, data bits, and parity settings to avoid framing errors.
Intent-Driven FAQ
- What is the primary function of the Delta ?
It acts as a hardware interface converter bridging RS-232C point-to-point devices onto a multi-drop RS-485 industrial network.
- Does the require software drivers?
No, it operates transparently at the physical layer, meaning it converts electrical signals directly without requiring proprietary device drivers on connected PLCs or PCs.
- What type of warranty covers verified surplus Delta modules?
All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.
- Can this unit be mounted on a standard DIN rail?
Yes, it features an industrial mechanical enclosure designed for secure panel or DIN-rail mounting in control cabinets.
- How do I verify if a replacement unit has been bench-tested?
Look for serialized QA certification labels, clean connector pins, and complete test documentation included with the hardware package.
