Advanced Energy GPC41-12 | 12V 3.3A AC/DC Power Supply
Product Introduction
The Advanced Energy GPC41-12 is a compact open-frame AC/DC switching power supply intended for equipment requiring a regulated 12 VDC rail from a wide-range AC source. Its 85–264 VAC input covers common 100/120/200/220/230/240 VAC systems, while the +12 VDC output is rated at 3.3 A and 40 W. The published load regulation is 0.75%, with 1% ripple and noise.
This is not a modern DIN-rail power supply with extensive diagnostic features. It is an older board-level/chassis-mount switching supply intended to be integrated into the host equipment. That distinction matters when planning a replacement: the electrical output is only one part of compatibility. Mounting envelope, AC wiring, DC connector pinout, grounding, airflow, and the original equipment’s power budget all need to match.
The GPC41 family documentation specifies a 4.00 × 2.00 × 1.50 inch mechanical package, making physical fit a particularly important consideration when sourcing a replacement for an installed unit.

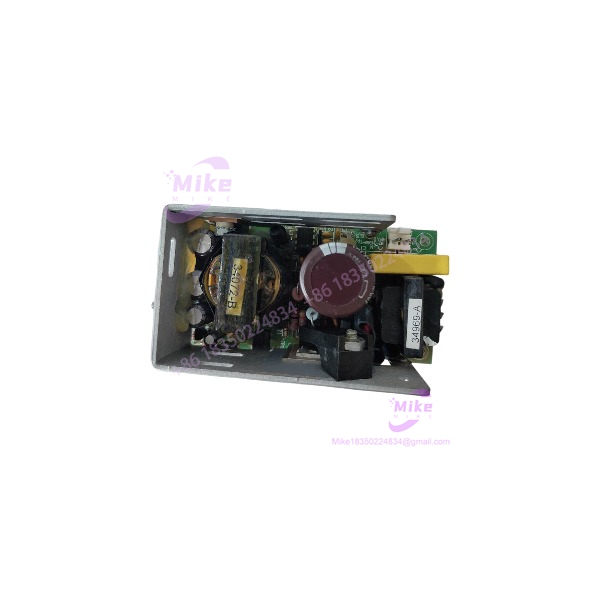

GPC41-12
Key Technical Specifications
- Model: GPC41-12
- Topology: AC/DC switching power supply
- Input Voltage: 85–264 VAC
- Input Frequency: 47–63 Hz
- Input Phase: Single phase
- Output Voltage: +12 VDC
- Maximum Output Current: 3.3 A
- Maximum Output Power: 40 W
- Minimum Output Load: 0.03 A
- Load Regulation: 0.75%
- Initial Output Setpoint Tolerance: ±2%
- Ripple and Noise: 1%
- OVP Setpoint: 14 ±1.0 V
- Operating Temperature: 0 to 50°C at rated output
- Efficiency: approximately 77% for the GPC41-12 configuration
- Mounting: Chassis/open-frame
- Approximate Dimensions: 101.6 × 50.8 × 38.1 mm
- Output Quantity: 1
- Application Classification: ITE/commercial
- Published Approvals: CE, cURus, TUV
- Protection Information: overvoltage and overcurrent protection are documented for the family.
The manufacturer documentation also states that output current and total output power should be derated by 2.5% per °C above 50°C, and heat-sink temperatures should not remain above 90°C for extended periods.
Global Sourcing & Live-Test SOP
For a legacy GPC41-12, incoming inspection should be treated as an electrical verification job rather than a simple visual check.
- Identity check: Confirm the label reads GPC41-12 and inspect the complete suffix. The documentation allows additional configuration suffixes, while a G suffix indicates RoHS compliance. Do not assume two visually similar units have identical compliance status.
- Physical inspection: Check PCB condition, mounting holes, terminals/connectors, transformer components, capacitors, heatsinks, and evidence of overheating or unauthorized repair.
- Serial/traceability review: Record manufacturer markings, date information, serial information where present, and supplier paperwork.
- Insulation check: Before energized testing, inspect AC-to-DC isolation and protective-earth arrangements according to the host equipment’s applicable service procedure.
- No-load startup: Apply the correct AC input through a controlled test source and verify that the DC output starts normally.
- Output measurement: Use a calibrated DMM to confirm approximately 12 VDC. Check both unloaded and representative loaded conditions.
- Load simulation: Increase the load progressively toward the documented 3.3 A maximum while monitoring output voltage, ripple, temperature, and abnormal acoustic behavior.
- Thermal run: A practical refurbishment procedure should include an extended loaded run, with temperature monitored at the power components and enclosure airflow.
- Final preparation: Record measured output voltage, test load, input voltage, operating temperature, and any configuration markings before ESD-safe packaging.
Do not use a simple continuity test as proof that ed is serviceable. Switching supplies can pass static checks while exhibiting excessive ripple, unstable regulation, thermal drift, or startup problems under load.
Field Engineer’s Pitfall Guide
❗ 1. Do not confuse 12 V output with 40 W capability at every condition
he is rated for 3.3 A at 12 VDC, with 40 W maximum output. The 3.3 A figure is the important limit when sizing the DC load. A connected load that appears acceptable by average current can still produce startup or transient conditions that stress the supply.
❗ 2. Check the exact suffix before buying a replacement
The basic family uses model numbers such5, , -15, -24, and -28. The output voltage is therefore encoded directly into the model designation. Additional suffixes can also identify configuration or RoHS status.
Do not substitute a -2 a simply because the mounting pattern appears identical. That can destroy downstream 12 V electronics.
❗ 3. Verify mounting and wiring, not just electrical ratings
he is an open-frame chassis-mount supply. It is not automatically a drop-in replacement for a DIN-rail supply or another manufacturer’s 12 V module.
Before installation, verify:
- AC input terminal arrangement
- DC output polarity
- Protective-earth connection
- Connector or terminal style
- Mounting-hole pattern
- Clearance around heat-producing components
- Airflow path
- Downstream 12 V current demand
The published mechanical envelope is approximately 4.00 × 2.00 × 1.50 inches, so physical clearance can be just as restrictive as the electrical specifications.
Intent-Driven FAQ
he a 12 VDC power supply?
Yes. The provides a nominal +12 VDC output at up to 3.3 A, with a published maximum output power of 40 W.
What AC input he accept?
The published specifications identify an input range of 85–264 VAC at 47–63 Hz, making it suitable for a wide range of commercial AC systems.
Is still a current-production part?
Current distributor information identifhe as obsolete. The Advanced Energy documentation available today also represents this as a legacy SL Power product family. For replacement procurement, condition and traceability should therefore be treated as part of the technical specification.
es have a 24 V output?
o. is the 12 VDC version. The same family includes separate 24 V and other output-voltage models. Using the wrong voltage variant is not an acceptable substitution.
Can I ce with any 12 V, 40 W power supply?
Not without checking the installation. Output voltage and wattage are only the starting points. Confirm input range, connector pinout, grounding, mechanical dimensions, airflow, mounting, regulation, transient behavior, and applicable safety requirements.
Is hot-swappable?
No hot-swap capability should be assumed. This is an open-frame chassis-mounted AC/DC supply, not a modular hot-swappable power architecture. Power down and isolate the host equipment before removing or installing it unless the equipment manufacturer’s service documentation explicitly specifies another procedure.
What should I verify when buyinged ?
At minimum, verify the exact model marking, suffix, physical condition, PCB revision where identifiable, connector configuration, signs of capacitor or thermal damage, and measured 12 VDC output under load. Because the model is obsolete, a documented live-test result is significantly more useful than a seller’s statement that the unit is simply “untested” or “working.”
Procurement Notes
The Advanced Energy / Ser is best treated as a legacy equipment-replacement component rather than a generic 12 V power supply. Its documented 85–264 VAC input, 12 VDC/3.3 A output, 40 W rating, compact 4 × 2 × 1.5 inch chassis, and open-frame construction make the exact mechanical and electrical configuration important.
For surplus or used inventory, prioritize units with readable OEM markings, intact terminals, clean PCB condition, and documented load testing. If the application is a production-critical controller or machine, preserve the original wiring and mounting documentation before approving a substitute.
