NI PCIe-6321 | 16-Channel 16-Bit PCIe DAQ Card New In Stock
Architect’s Product Breakdown
The National Instruments PCIe-6321 serves as a high-efficiency X Series multifunction acquisition module designed for PCI Express host computer architectures. Ideal for automated manufacturing test stands, laboratory measurements, and process control monitoring, this hardware model incorporates NI-STC3 timing and synchronization technology alongside NI-MCal onboard self-calibration algorithms. By leveraging the native x1 PCI Express interface, the board delivers dedicated DMA channels that allow high-speed streaming of analog, digital, and counter data directly to host memory without incurring CPU-bound bottlenecks.
Deploying or replacing this model in a modern PC workstation requires configuring signal routing and timing tasks in the NI-DAQmx software environment. Featuring a single 68-pin female VHDCI connector interface, the module provides flexible input wiring topologies, including Referenced Single-Ended (RSE), Non-Referenced Single-Ended (NRSE), and Differential modes. When carrying out maintenance swaps or system upgrades, field engineers must verify that terminal blocks (such as the SCB-68A) and double-shielded cabling (such as the SHC68-68-EPM) are properly grounded to preserve low-noise, 16-bit signal fidelity.

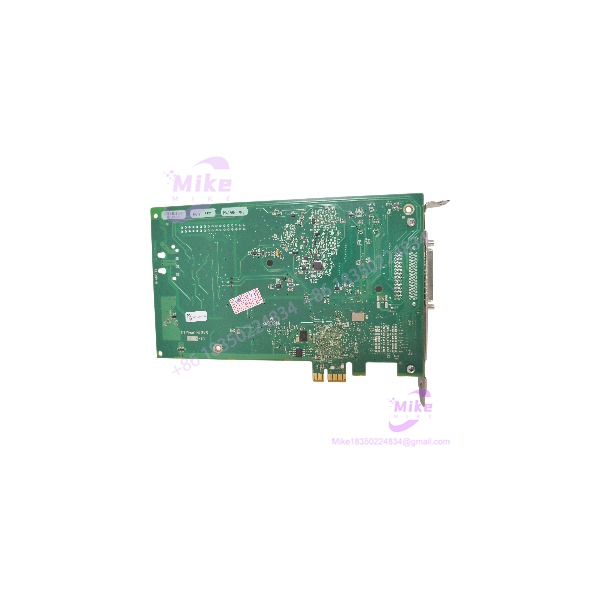

PCIE-6321
Key Technical Specifications
- Manufacturer: National Instruments (NI)
- Product Category: X Series PCI Express Multifunction DAQ Board
- Part Number / Catalog No.: PCIe-6321 (781044-01)
- Analog Inputs: 16 Single-Ended / 8 Differential channels
- ADC Resolution: 16-bit
- Maximum Sampling Rate: 250 kS/s (single channel or aggregate)
- Input Voltage Ranges: Software-selectable \pm 0.2 V, \pm 1 V, \pm 5 V, and \pm 10 V
- Analog Outputs: 2 channels (16-bit, 900 kS/s 1-channel / 840 kS/s 2-channel)
- Digital I/O Lines: 24 TTL/CMOS-compatible bidirectional lines (Port 0 clocked up to 10 MHz)
- Counter/Timers: 4 x 32-bit counters (100 MHz timebase via NI-STC3)
- Bus Architecture: x1 PCI Express (PCIe 1.0/2.0 compatible)
- I/O Connector: Single 68-pin female VHDCI connector
- Operating Temperature Range: 0°C to +50°C
- Weight: Approximately 112 g (0.25 lb)
Field Engineer’s Pitfall Guide (Unique Value)
- Hot-Swapping Under Power: Never insert or remove the PCIe-6321 module while the host computer chassis is energized. Live hot-plugging in standard PCI Express slots risks shorting backplane power rails, causing fatal damage to the host motherboard root complex and onboard multiplexers.
- Using Unshielded Cabling on High-Gain Ranges: When sampling microvolt-level signals on the \pm 0.2 V input range, using unshielded ribbon cables will inject severe 60 Hz mains hum and EMI noise into readings. Always use double-shielded twisted-pair cables (such as the NI SHC68-68-EPM).
- Incorrect Digital Port 0 Sourcing Limits: While Port 0 digital lines support clocked updates up to 10 MHz, driving excessive sink/source current beyond the aggregate package limit will trip internal overcurrent protection and cause logic level dropouts. Use buffer relays or optocouplers when switching higher-power field loads.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo microscopic examination to confirm clean PCIe edge connector fingers, undamaged VHDCI connector pins, intact surface-mount capacitors, and authentic OEM labeling.
- Live Test Bench Environment: Measurement cards are seated in a dedicated industrial PCIe test chassis running validated NI-DAQmx driver suites and NI Measurement & Automation Explorer (MAX) to verify self-tests and hardware register response.
- Loopback & Calibration Diagnostics: Technicians route analog outputs directly into analog input channels to perform full \pm 10 V sweep calibrations, verify 16-bit ADC conversion linearity, check all 4 hardware counters, and validate 10 MHz digital line switching.
- Anti-Static Packaging: Post-testing units are sealed inside conductive ESD shielding bags and cushioned with high-density protective foam to prevent electrostatic and physical damage during transit.
Technical FAQ
Can I hot-swap the PCIe-6321 card while the host computer is powered on?
No. Standard PCI Express expansion slots do not support live hot-swapping. Always power down the host computer completely before installing or servicing this board.
What is the main advantage of the PCIe-6321 over older M-Series cards like the PCI-6221?
This X Series model features an upgraded NI-STC3 timing controller with 4 independent 32-bit counters (versus 2 on M-Series), native PCI Express streaming DMA engines, and faster analog output update rates (900 kS/s vs 833 kS/s).
What cable and terminal block accessories pair with this DAQ card?
The PCIe-6321 features a single 68-pin VHDCI connector. It pairs directly with NI cables like the SHC68-68-EPM and terminal blocks such as the SCB-68A, CB-68LP, or BNC-2120.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed measurement modules typically carry a 12-month operational warranty covering material and manufacturing defects under standard laboratory or industrial conditions.
