Kongsberg RCU500 | K-Pos & K-Thrust Azimuth Control Module
Dynamic Product Introduction
Marine automation superintendents and chief electronics officers managing DP-2/DP-3 offshore vessels, shuttle tankers, and cruise liners know how vital distributed processor integrity is to station-keeping performance. When a remote control unit on a thruster node or sensor hub experiences processor memory errors, network transceiver dropouts, or power rail degradation, replacing the unit quickly without disrupting system-wide fieldbus communication or vessel safety handshakes is an essential operational priority.
The Kongsberg Maritime RCU500 is a high-reliability distributed processing unit designed specifically for demanding marine environments. Built into a rugged metal housing suitable for bridge consoles, engine control rooms, or thruster equipment spaces, the RCU500 serves as a local intelligence hub within the K-Pos and K-Thrust ecosystem. By executing real-time control routines locally and communicating via redundant high-speed marine network buses, the RCU500 processes sensor inputs (such as gyro, MRU, wind, and feedback transmitters) and drives valve actuators and thruster levers with low latency and high fault tolerance.

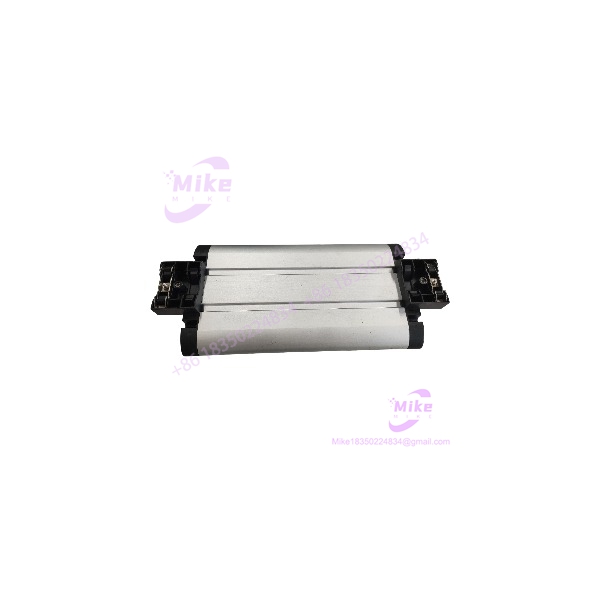

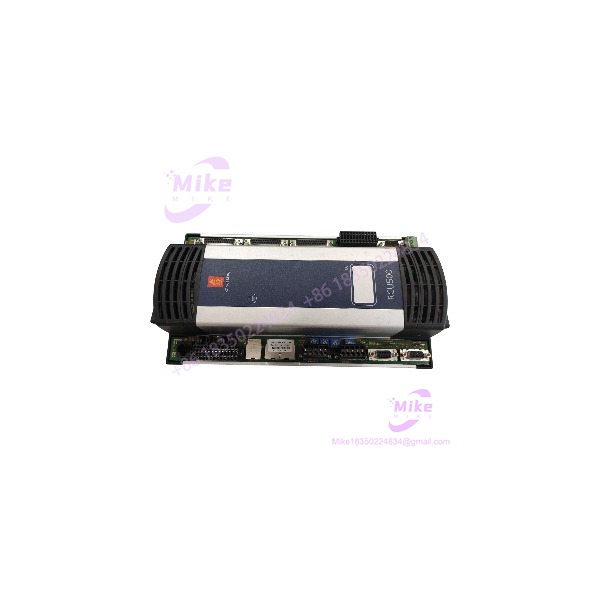

RCU500
Key Technical Specifications
- Nominal Operating Voltage: Dual Redundant 24 V DC (18 to 32 V DC operational range)
- Processor Architecture: Real-time embedded industrial microprocessor with onboard flash memory
- Fieldbus Network Interfaces: Redundant dual Ethernet (100Base-TX) / RNet marine protocol ports
- Serial Communication Ports: Configurable RS-232, RS-422, and RS-485 optically isolated serial interfaces
- I/O Capabilities: Onboard/expandable digital inputs (24 V DC), digital outputs (relay/transistor), and high-resolution analog I/O (4–20 mA / 0–10 V DC)
- Isolation Rating: Galvanic optical isolation across all field communication and sensor interfaces
- Operating Temperature Range: -15 °C to +70 °C harsh marine environmental rating
- Marine Type Approval: Certified by major classification societies (DNV, ABS, Lloyd’s Register, Bureau Veritas)
- Status Diagnostics: Front panel diagnostic LEDs for power rails, processor health, network activity, and I/O status
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing surplus or replacement marine control units requires strict physical, electrical, and network traffic verification to ensure zero packet loss under full DP network loads.
Inbound Verification & Traceability
- Paperwork Audit: Verification of serial numbers, hardware part numbers, and marine classification stamps against Kongsberg Maritime manufacturing databases.
- Physical Inspection: Comprehensive examination of housing structural seals, conformal coating condition across internal PCBs, backplane pin integrity, and circular/terminal block connections for signs of salt-air corrosion.
Live Bench Simulation & Diagnostics
- Dual-Power Supply Redundancy Test: Powered using dual independent 24 V DC marine power supplies, cycling primary and secondary power lines to verify seamless switchover without processor reset or fault tripping.
- Network Loop & Redundancy Verification: Connected to a simulated K-Pos marine network topology across both primary and secondary Ethernet/RNet ports to test packet generation, node address resolution, and auto-failover switching.
- I/O & Serial Port Diagnostics: Sweeping all analog and digital channels with signal simulators and running full-duplex serial loopback tests on RS-422/485 interfaces to verify transceiver signal integrity.
- 24-Hour Stress & Thermal Test: Unit undergoes a 24-hour thermal chamber test under continuous high-density data traffic loading to verify zero memory leaks and stable processor operation under elevated engine-room temperatures.
Final Prep
- EEPROM & IP Configuration Reset: Restoring default factory node configurations or loading customer-specified network settings.
- ESD & Marine Packaging: Unit is sealed in heavy-duty anti-static barrier film with moisture-absorbing desiccant packs before double-boxed shipping.
Thruster & Dynamic Positioning Safety Warning
Replacing an RCU500 unit assigned to a active Dynamic Positioning (DP) station-keeping node or thruster control loop must never be performed while the vessel is operating under DP control or in restricted waters. Always transfer propulsion control to manual bridge levers, isolate local 24 V DC power feeds, and notify the watch engineer prior to replacing hardware.
The Field Engineer’s Pitfall Guide
- ❗ Matching Firmware Version & System Node ID: The RCU500 relies on specific software application images and network IP/node ID configurations matching your vessel’s overall K-Pos / K-Thrust topology. Installing a replacement unit with mismatched firmware or node jumpers will cause system address conflicts, network boot failures, or DP controller rejection.
- ❗ Power Isolation & Hull Grounding Limits: Marine 24 V DC power networks powering the RCU500 must remain strictly floating relative to the vessel’s steel hull. Connecting non-isolated external programming computers or introducing ground faults on input sensor lines can cause severe noise coupling across serial positioning lines (such as DGPS or gyro feeds).
- ❗ Conformal Coating & Moisture Seals: When installing the unit inside damp engine spaces or thruster rooms, ensure the enclosure door seals and cable gland entries are properly tightened. Exposure to salty moisture without intact IP sealing can cause copper track corrosion and premature component failure.
Intent-Driven FAQ
Will swapping out an RCU500 require re-commissioning the DP system?
If you transfer the original onboard non-volatile memory card or upload your vessel’s verified project backup configuration (.cfg / parameter files) to the replacement unit, system re-commissioning is minimal. However, a functional check of connected sensor feeds and control loops must be verified from the operator station.
What are the main symptoms of a failing RCU500 unit onboard?
Common indications include intermittent network dropouts on the K-Pos display (“Node Offline” or “Net A/B Fail” alarms), frozen sensor input channels, local LED processor watchdog faults (red SYS LED), or failure to output analog commands to thruster governors.
Can the RCU500 be used interchangeably between K-Pos and K-Thrust systems?
Yes. The RCU500 is a versatile hardware processing platform. Its specific functional role—whether managing DP position calculation, thruster feedback, or bridge lever commands—is defined by the software configuration loaded into its non-volatile flash memory.
What do the LED indicators on the front panel signify during boot-up?
- POWER / 24V: Solid green indicates healthy dual 24 V DC power input feeds.
- RUN / SYS: Solid green indicates normal real-time operating system execution; red or off indicates hardware/processor fault.
- NET A / NET B: Flickering green/yellow indicates active network packet transmission across redundant fieldbus channels.
What warranty coverage is provided on replacement units?
All verified Kongsberg Maritime RCU500 modules include a standard 12-month full-replacement warranty covering processor functionality, network communication transceivers, and I/O signal acquisition circuits.
If you need help checking node IP configurations, backing up parameter software via Kongsberg tools, or verifying serial port wiring diagrams for your RCU500 setup, let me know your vessel’s system architecture details and I can assist with the installation procedures.
