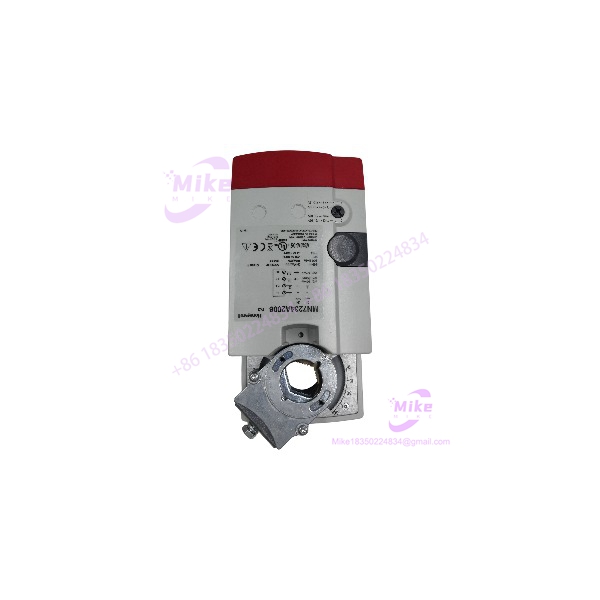

Honeywell MN7234A2008 | Direct Coupled Damper Actuator
Product Introduction
The Honeywell MN7234A2008 is a high-torque, non-spring-return direct-coupled actuator designed for rotary HVAC control applications. With 300 lb-in (34 Nm) of rated torque, it is intended for larger air dampers and quarter-turn valve applications where a compact direct-drive actuator is preferred over a conventional linkage arrangement.
Control flexibility is one of the important characteristics of this model. The actuator supports proportional control through 0/2–10 VDC or 4–20 mA using the specified 500 Ω interface, while a 2–10 VDC feedback signal can be used by the building automation controller for position verification. The unit also provides selectable rotation direction and a manual declutch mechanism for field adjustment.
Because the MN7234A2008 is now discontinued, it is particularly relevant to maintenance teams supporting installed Honeywell HVAC systems where replacing the actuator with a mechanically and electrically compatible alternative requires more than simply matching voltage.
MN7234A2008
Key Technical Specifications
- Manufacturer: Honeywell
- Model: MN7234A2008
- Series: MN Series
- Actuator type: Direct-coupled rotary actuator
- Return action: Non-spring return
- Rated torque: 300 lb-in / 34 Nm
- Supply voltage: 24 VAC ±20% or 24 VDC
- Operating frequency: 50/60 Hz
- Control input: 0/2–10 VDC
- Current control: 4–20 mA with 500 Ω resistor
- Feedback output: 2–10 VDC
- Rotational stroke: 95° ±3°
- Rotation direction: Selectable
- Manual adjustment: Declutch mechanism
- Shaft compatibility: 3/8–1.06 in. round or 3/8–11/16 in. square
- Enclosure rating: NEMA 2
- Operating temperature: -5°F to +140°F (-20°C to +60°C)
- Storage temperature: -40°F to +175°F (-40°C to +80°C)
- Noise: Approximately 40 dBA at 1 m
- Electrical connection: Enclosed screw terminal strip
- Mounting: Direct coupled
- Auxiliary switches: None internally installed on this configuration; field-installable options are available
- Certifications: UL/cUL, CE, C-Tick references are documented for the series/model.
Application Scenarios & Pain Points
Large HVAC Air Dampers
The 300 lb-in torque rating makes the MN7234A2008 appropriate for larger volume-control dampers where a 175 lb-in actuator would not provide sufficient operating torque.
The direct-coupled design eliminates the need for a conventional external linkage in compatible installations.
Quarter-Turn Control Valves
Honeywell specifies the MNxx34 family for quarter-turn rotary valves, including ball and butterfly valve applications.
Engineering check: Valve breakaway torque and running torque must remain within the actuator’s available torque. A 300 lb-in nameplate rating does not automatically establish compatibility with every valve.
Building Automation System Retrofits
The proportional interface makes this actuator applicable to BAS/DDC installations using voltage or current control signals.
A controller providing 2–10 VDC, for example, should be checked against the actuator’s configured input mode rather than assuming that any analog output will work.
Legacy Honeywell Installations
The MN7234A2008 is discontinued, making it a relevant legacy replacement component for facilities maintaining existing Honeywell equipment. Honeywell’s current product page explicitly identifies the MNxx20/MNxx34 series as discontinued.
Manual Maintenance Intervention
The integrated declutch mechanism allows the shaft position to be manually adjusted during installation or service without treating the actuator as a spring-return device.
QA & Live Testing SOP
For a procurement-grade , the following verification sequence is recommended.
1. Nameplate verification
Confirm the actuator is marked . Record the complete model number rather than accepting an MN7234-family match.
2. Mechanical inspection
Inspect:
- Self-centering shaft adapter
- Anti-rotation bracket
- Housing
- Declutch mechanism
- Mechanical stops
- Shaft coupling surfaces
- Wiring cover
- Terminal block
Check specifically for cracked plastic, damaged mounting hardware, or evidence of moisture intrusion.
3. Power verification
Use a current-limited laboratory supply and verify the applicable 24 VAC/VDC supply before applying control signals.
4. Direction and stroke test
Confirm selectable rotation direction and verify that the actuator travels through its configured mechanical range without binding.
5. Control-input test
Apply the appropriate proportional command and verify actuator response. Where a 4–20 mA command is used, confirm the required 500 Ω resistor interface before connecting the control loop.
6. Feedback test
Measure the 2–10 VDC feedback while moving the actuator through its operating range. Confirm that the feedback changes consistently with mechanical position.
7. Mechanical-load verification
For a valve or damper installation, verify the actual operating torque rather than relying solely on the actuator’s nominal 300 lb-in rating.
8. Documentation
Record:
- Exact model
- Serial number
- Supply voltage
- Input mode
- Rotation direction
- Stroke
- Feedback readings
- Physical condition
- Test date
9. Packaging
Protect the shaft adapter, terminal area, and mounting hardware against impact during transportation. Use ESD-aware handling for associated electronic control components.
This is a recommended QA and live-testing SOP, not a statement that a particular unit has already been tested.
Field Engineer’s Pitfall Guide
❗ is non-spring return.
It does not provide spring-driven fail-safe movement during power loss. Do not substitute it for a spring-return actuator where the application requires automatic fail-safe positioning.
❗ Do not confuse 24 VAC/VDC supply with the control signal.
The actuator’s supply is 24 V-class power, while its control interface can use 0/2–10 VDC or 4–20 mA through the specified interface arrangement. These are separate electrical functions.
❗ Verify valve/damper torque, not just actuator torque.
The 300 lb-in rating is the actuator capability. Valve breakaway torque, damper friction, linkage losses, and operating conditions still determine whether the installation is suitable.
❗ Check the shaft dimensions before ordering.
The documented shaft compatibility covers 3/8–1.06 in. round and 3/8–11/16 in. square shafts. Mechanical compatibility must be confirmed against the installed damper or valve.
❗ Confirm feedback requirements at the controller.
A 2–10 VDC feedback signal may be used for position verification, but the BAS/DDC input must be configured for the same signal range.
❗ Do not assume a modern replacement is electrically or mechanically drop-in.
Honeywell lists the as discontinued. A replacement evaluation should compare torque, stroke, supply, control signal, feedback, shaft dimensions, mounting geometry, and fail-safe behavior.
Intent-Driven FAQ
What is Honeywell ?
The is a Honeywell MN Series 300 lb-in non-spring-return direct-coupled rotary actuator designed primarily for HVAC dampers and quarter-turn valve applications.
How much torque does provide?
It is rated at 300 lb-in (34 Nm) of torque.
Is spring return?
No. It is a non-spring-return actuator. It does not automatically drive the controlled device to a fail-safe position when power is removed.
What voltage does use?
The documented supply is 24 VAC ±20% or 24 VDC. The 24 VAC supply is intended for 50/60 Hz operation.
What control signals are supported?
The documented control configuration supports 0/2–10 VDC and 4–20 mA using a 500 Ω resistor interface.
Does have position feedback?
Yes. The documented feedback signal is 2–10 VDC, allowing a BAS/DDC controller to monitor actuator position.
Is still manufactured?
Honeywell’s current product information identifies the MNxx20/MNxx34 series as discontinued. For a legacy replacement, verify current availability and the exact mechanical/electrical configuration before approving the purchase.
What should I verify before replacing an ?
At minimum, verify 300 lb-in torque, 24 VAC/VDC supply, control-signal type, 2–10 VDC feedback, 95° stroke, shaft dimensions, mounting arrangement, and non-spring-return behavior. A replacement that matches only the voltage is not necessarily compatible.
