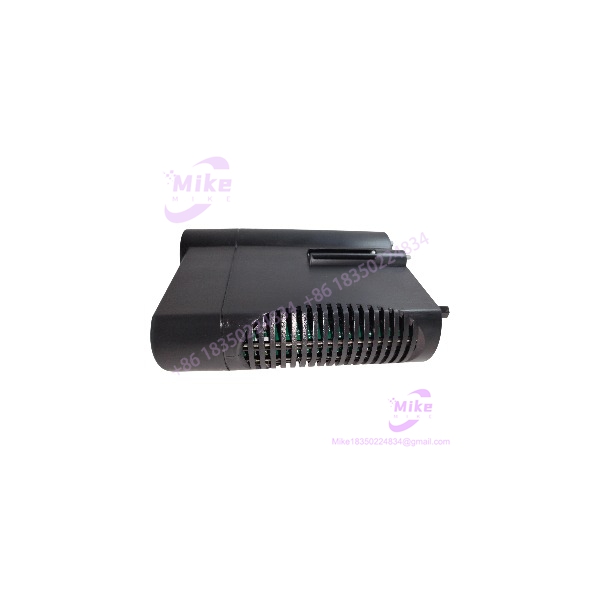

Honeywell FC-PDIO01 | 24 VDC Safety DIO Module
Dynamic Product Introduction
The Honeywell FC-PDIO01 is not a generic PLC digital I/O card. It belongs to the Safety Manager SC architecture and is specifically identified by Honeywell as a 24 VDC, 32-channel Safety Digital I/O module. That distinction matters when replacing a failed module: the correct termination assembly, controller revision, Safety Manager software release, and I/O configuration all have to agree. Honeywell documentation pairs the FC-PDIO01 with the FC-TDIO11 IOTA/termination assembly, while the Universal Marshalling documentation identifies the corresponding I/O type as Safety Digital I/O and the interconnection as an SIC cable arrangement.
For brownfield Safety Manager installations, the value of an FC-PDIO01 is primarily compatibility. Replacing a safety I/O module is not the same exercise as swapping a conventional 24 VDC PLC card. The controller firmware/software baseline has to recognize the module, the termination side has to match, and the final channel configuration must be validated against the existing safety application.
Honeywell’s Safety Manager R210.2 documentation explicitly lists FC-PDIO01 as supported hardware for Safety Manager SC and identifies it as “SC SAFETY DIO IOM 24VDC, 32CH.” Honeywell’s certification revision records also show FC-PDIO01 within the validated Safety Manager SC hardware set.
FC-PDIO01
Key Technical Specifications
- Manufacturer: Honeywell
- Model:
- Part Number: 51454927-176
- Product Type: Safety Digital I/O Module
- System: Honeywell Safety Manager SC
- I/O Capacity: 32 channels
- Nominal Field Voltage: 24 VDC
- I/O Category: Safety Digital I/O
- Associated IOTA: FC-TDIO11
- System Cable Interface: SIC cable arrangement for the applicable Safety I/O architecture
- Supported Safety Manager SC Release: R210.2 documentation explicitly lists FC- as supported hardware.
- Safety Certification Context: FC- appears in Honeywell Safety Manager SC certification/revision documentation.
- Common Identification: Marketplace and industrial inventory records also identify 51454927-176 as the FC- hardware number.
Important specification note: Some secondary listings publish additional electrical figures, including output-current ratings and channel-level characteristics. Those numbers should not be treated as authoritative for a safety-system replacement unless they are confirmed against the applicable Honeywell hardware reference and the exact module revision. For procurement, the verified baseline is the FC- / 51454927-176 / 24 VDC / 32-channel Safety DIO identification.
Global Sourcing & Live-Test SOP
Inbound Verification
Before the module enters controlled inventory, record:
- Honeywell model marking:
- Part number: 51454927-176
- Hardware revision and visible revision markings
- Serial number and manufacturing label
- Connector condition and terminal/interface integrity
- PCB or enclosure damage
- Evidence of corrosion, contamination, unauthorized repair, or rework
For a safety I/O module, serial and revision traceability is not paperwork theater. It establishes exactly which hardware is being introduced into the maintenance chain.
The supplied listing describes the unit as new/open-box, so procurement should still distinguish physical condition from functional qualification.
Live Simulation
The appropriate test is an authentic Safety Manager SC test environment, not simply applying 24 VDC to the module.
A controlled test should verify:
- Module recognition by the compatible Safety Manager SC controller
- Correct I/O configuration
- Communication between controller and I/O module
- Expected channel diagnostics
- Correct relationship between the FC- and its termination assembly
- Digital input state transitions
- Digital output command and feedback behavior where supported by the test configuration
- Fault reporting when an expected field condition is intentionally interrupted
Do not substitute a generic PLC rack for a Safety Manager validation test and call the module “tested.”
Diagnostics
Record the controller diagnostic state before and after I/O simulation. Where the application permits, use a calibrated multimeter to verify expected DC signal levels at the appropriate test points.
For an installed safety system, also verify that the final configuration does not introduce:
- Unexpected channel faults
- Termination mismatches
- I/O addressing/configuration discrepancies
- Controller communication faults
- Safety application diagnostic errors
Final Preparation
Before shipment or installation:
- Photograph the module identification and revision.
- Record the hardware revision and serial number.
- Record the compatible Safety Manager software/firmware baseline used during testing.
- Protect connectors against ESD and mechanical impact.
- Seal the module in ESD-safe packaging.
- Preserve the test record with the unit’s procurement documentation.
Field Engineer’s Pitfall Guide
❗ Firmware/software compatibility is not optional
Honeywell’s own Safety Manager documentation demonstrates that FC- support is tied to specific Safety Manager SC releases. R210.2, for example, explicitly supports the FC-. Honeywell certification records also identify module revisions and associated controller/software versions.
Field lesson: A physically identical replacement can still become a commissioning problem if the controller’s software baseline does not support that hardware revision. Record the existing system release before ordering multiple replacement modules.
❗ Do not confuse the I/O module with the termination assembly
FC- is the I/O module. Honeywell’s documentation identifies FC-TDIO11 as the associated redundant IOTA for this module. The Universal Marshalling documentation separately identifies FC- and FC-TDIO11 as the Safety Digital I/O combination.
That means a buyer replacing only the electronic module should not assume that every termination assembly in the cabinet is automatically interchangeable.
Field lesson: During emergency maintenance, technicians sometimes replace the electronic module first and troubleshoot the wiring afterward. On safety I/O, verify the complete signal path first.
❗ Hardware revision matters
Honeywell’s certification records contain multiple FC- entries and software/hardware revision combinations. That is a strong reason to capture the actual revision marking rather than purchasing solely from a generic “FC-” description.
Field lesson: When a plant has mixed-generation Safety Manager hardware, inventory by complete part number and revision—not by family name alone.
Intent-Driven FAQ
Is the Honeywell FC- a PLC input/output module?
It is a digital I/O module, but calling it a conventional PLC I/O card is misleading. Honeywell identifies the FC- specifically as a Safety Digital I/O module for Safety Manager SC, rated/configured as a 24 VDC, 32-channel module.
How many channels does FC- provide?
The Honeywell Safety Manager documentation identifies the FC- as a 32-channel, 24 VDC Safety DIO IOM.
What termination assembly is used with FC-?
Honeywell’s Safety Manager SC documentation associates the FC- with the FC-TDIO11 IOTA/termination assembly.
Is FC- supported by Safety Manager SC?
Yes. Honeywell’s R210.2 software documentation explicitly lists among the supported Safety Manager SC hardware modules.
Is 51454927-176 the same product as FC-?
The available industrial inventory records identify 51454927-176 with Honeywell FC-. The supplied listing also identifies FC- and 51454927-176 together. For safety-system procurement, however, verify the complete module label and revision rather than relying on the model number alone.
Can I install FC- directly into any Honeywell Safety Manager rack?
No. Compatibility depends on the Safety Manager SC architecture, controller/software release, I/O termination arrangement, configuration, and hardware revision. Treat FC- as a system-specific safety I/O component, not a universal 24 VDC digital card.
Is the open-box FC- automatically equivalent to a tested spare?
No. “New/open-box” describes physical sales condition, not safety-system qualification. The supplied listing is advertised as new/open-box, but a maintenance spare should still undergo identification, revision verification, electrical inspection, and—where practical—functional testing in an appropriate Safety Manager environment.
Procurement Verdict
Honeywell FC- is a system-specific Safety Manager SC digital I/O module, not a generic PLC replacement card. The key procurement identifiers are FC-, 51454927-176, 24 VDC, 32 channels, with the associated FC-TDIO11 termination/IOTA architecture.
For a brownfield plant, I would approve this part for a replacement shortlist only after confirming controller/software revision, module hardware revision, termination assembly, channel configuration, and actual functional test status. That verification is more important than whether the module is advertised as new, refurbished, or open-box.
