Honeywell FC-FANWR-24R | Safety Manager 24 VDC Fan Unit
Dynamic Product Introduction
The Honeywell FC-FANWR-24R is not a controller module, I/O card, or generic enclosure fan. It is a dedicated Safety Manager cabinet cooling assembly. Honeywell specifies the unit as a 24 VDC fan unit consisting of two fans and PCB 07209 mounted on a mounting plate, with the external 24 VDC supply and readback wiring brought to a four-pole connector.
The important engineering feature is the speed-monitoring circuit. Each fan has a green status LED, and the potential-free readback contact closes when both fans are operating above their minimum speed. The contact also closes for approximately 15 seconds during power-up. That distinction matters during commissioning: the readback circuit is intended to provide an operational status signal, not simply indicate that 24 VDC is present.
Honeywell identifies FANWR-24R as the preferred 24 VDC fan unit for the Safety Manager cabinet and lists alternative Honeywell SMS fan assemblies for 115 VAC and 230 VAC applications. Honeywell also notes that older HU-511/HU-611 fan units have been withdrawn from service.
For a running Safety Manager installation, this is a maintenance component with a direct thermal-protection role. A failed or restricted cabinet fan can raise internal temperature and accelerate failure of electronics and power equipment. Honeywell’s maintenance guidance specifically identifies FC-FANWR-24R as a replacement fan assembly and recommends fan replacement at an eight-year operating interval.

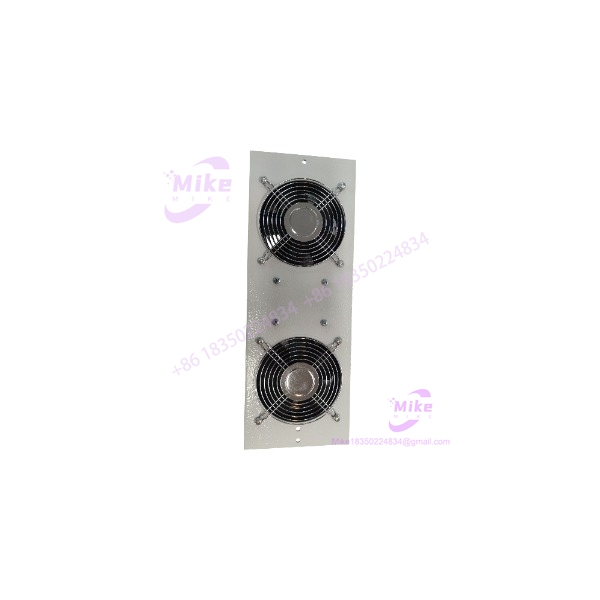

FC-FANWR-24R
Key Technical Specifications
- Manufacturer: Honeywell
- Part Number: FC-FANWR-24R
- Application: Honeywell Safety Manager cabinet
- Product Type: 24 VDC fan unit with readback
- Fan Quantity: 2
- Supply: 24 VDC
- Status Monitoring: Potential-free readback contact
- Fan Indication: Individual green LED for each fan
- Internal PCB: 07209
- External Connection: 4-pole connector
- Airflow Direction: Designed for roof-mounted Safety Manager cabinet ventilation
- Mechanical Protection: Finger guards fitted on both sides of the fans
- Readback Logic: Contact closes when both fan speeds are above the specified minimum threshold; approximately 15-second closure also occurs during power-up.
Important specification boundary: Honeywell’s official hardware reference establishes the architecture, supply type, dual-fan arrangement, PCB, connector, and readback behavior. It does not support treating FC-FANWR-24R as a generic PLC cooling accessory. Compatibility should therefore be established against the actual Safety Manager cabinet configuration before substitution.
Global Sourcing & Live-Test SOP
Inbound Verification
For an FC- procurement, verify the Honeywell part number, nameplate information, physical configuration, connector, PCB identification, fan quantity, and mechanical mounting condition before accepting the unit into stock.
For an open-box unit, packaging history matters less than physical inspection. Check both fan rotors for impact damage, excessive bearing noise, contamination, bent guards, damaged wiring, or signs of long-term storage in poor conditions.
The supplied listing describes the unit as new/open-box and without the original box. That condition should not be confused with factory-sealed stock.
Live Simulation
The correct test is a 24 VDC bench test using the actual fan connector configuration, followed by verification of both fan outputs and the readback circuit.
Check:
- Both fans start consistently from a cold start.
- Both fan status LEDs illuminate when the respective fans reach the required operating speed.
- The potential-free readback contact behaves according to the Honeywell specification.
- The temporary power-up readback state is distinguished from sustained normal-operation feedback.
- No abnormal bearing noise, vibration, intermittent startup, or thermal rise is observed.
For a safety-system spare, testing the fan motor alone is insufficient. The readback circuit is part of the functional value of FC-.
Diagnostics
Monitor the readback contact while independently checking both fans. If one fan runs but the readback does not reach the expected healthy state, do not automatically condemn the control wiring. The PCB, speed detection circuit, connector, or fan speed itself may be responsible.
Where possible, verify the unit in an authentic Safety Manager cabinet environment before releasing it for critical service.
Final Preparation
Record:
- Part number
- Available nameplate/revision information
- Physical condition
- Fan startup behavior
- Readback behavior
- Test date
- Test voltage
- Any observed bearing noise or vibration
Package the assembly against impact and contamination, particularly around the fan blades, finger guards, connector, and PCB.
Field Engineer’s Pitfall Guide
❗ Do not interpret the readback contact as a simple 24 VDC power indication
FC- uses a potential-free readback contact tied to fan operating status. The contact closes when both fans are above the minimum operating speed, and it also has a defined power-up behavior. A meter showing 24 VDC at the fan assembly does not prove that the cabinet cooling system is healthy.
A common maintenance mistake is to replace the cabinet fan because the monitoring system reports a fan fault without first checking whether one rotor has actually fallen below the required speed.
❗ Do not substitute a generic 24 VDC dual fan based only on voltage
The electrical supply is only one part of the compatibility equation. FC- combines the two fans with dedicated status electronics, a four-pole connection, and a potential-free readback function.
A physically similar 24 VDC fan can move air and still be an unsuitable replacement if the Safety Manager cabinet cannot receive the expected operational feedback.
❗ Do not ignore cabinet airflow direction and filter condition
A replacement fan can test perfectly on a workbench and still perform poorly after installation if the cabinet airflow path is restricted.
Honeywell specifically calls out fan operation, clean filters, cabinet seals, and unobstructed airflow as maintenance concerns. A blocked filter can create the same thermal symptom as a failing fan.
Intent-Driven FAQ
Is Honeywell FC- an I/O module?
No. FC- is a 24 VDC cabinet fan unit with readback, not a Safety Manager logic or I/O module. Its purpose is cabinet ventilation and fan-status feedback.
How many fans are inside FC-?
The assembly contains two fans mounted together with PCB 07209. Each fan has an associated green status indication.
Does FC- provide fan failure monitoring?
Yes. The assembly includes electronics that generate fan-status signals. Honeywell specifies a potential-free readback contact that closes when both fans are operating above their minimum speed.
What voltage does FC- use?
It is the 24 VDC version of the Honeywell SMS fan assembly used with Safety Manager cabinets. Honeywell also documents separate 115 VAC and 230 VAC fan assembly options, so voltage should be verified before substitution.
Can I replace FC- with any 24 VDC cabinet fan?
Not without checking the complete interface. The FC- includes dual fans and a dedicated readback circuit, so a generic fan may provide cooling while failing to reproduce the required monitoring behavior.
Is FC- still relevant for maintenance stock?
Yes. Honeywell’s current maintenance guidance specifically identifies as a replacement fan assembly and recommends fan replacement after eight years of operation.
What should I verify before buying an FC-?
Verify the exact FC- part number, 24 VDC configuration, two-fan arrangement, four-pole connector, physical mounting condition, and readback operation. For an open-box or surplus unit, functional testing is strongly preferable to relying on visual condition alone.
