Honeywell CC-PDOB01 | 32-Channel 24VDC Bussed Output Card

Description

Honeywell CC-PDOB01 | 32-Channel 24VDC Bussed Output Card

Product Introduction

When controller logic commands a safety valve to open or a shutdown solenoid to fire, the command relies entirely on the rapid, reliable switching performance of your output hardware. Engineered specifically for the Series-C architecture, the CC-PDOB01 handles high-density discrete output distribution directly at the I/O chassis without wasting panel real estate.

Managing dozens of inductive loads inside a confined cabinet requires strict thermal and electrical management. The CC-PDOB01 processes 32 bussed 24VDC output channels with built-in galvanic isolation, protecting your controller node from field-side transients while ensuring crisp actuation speeds (—though your mileage may vary depending on cabinet temp and active ventilation).

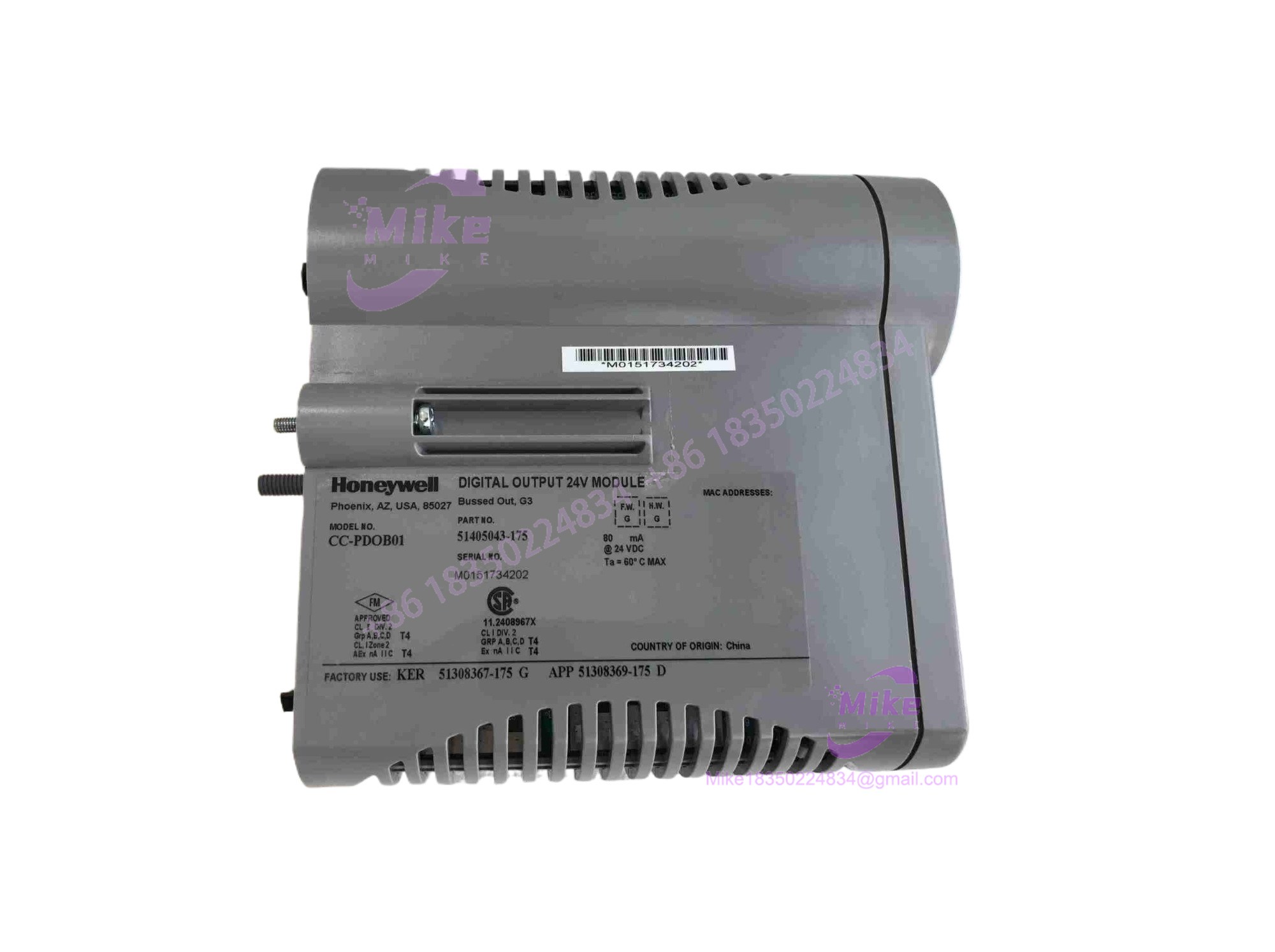

CC-PDOB01

Key Technical Specifications

Application Scenarios & Pain Points

• Solenoid Valve Rack Sequencing: Fast-cycling pneumatic headers require reliable current delivery to prevent sluggish valve timing; the CC-PDOB01 switches 32 channels cleanly without contact bounce.
• A “With vs. Without” Contrast: Without proper channel isolation and robust off-state leakage suppression, residual voltage bleeding can cause small pilot relays to chatter or fail to drop out completely. With the CC-PDOB01, clean state transitions eliminate ghost voltage issues.
• Compact Packaging Constraints: Retrofitting older relay racks often stalls due to tight physical spacing limitations. The CC-PDOB01 mounts directly onto Series-C IOTAs, maximizing channel density per square inch of cabinet space.

QA & Live Testing SOP (Trust Signal)

We treat surplus industrial hardware with strict scrutiny. Every CC- undergoes a rigorous multi-stage evaluation before hitting our inventory shelf. First, we verify physical OEM seals and inspect backplane pin integrity under magnification. Next, we drop the CC- onto a live test rack running a compatible controller node, applying resistive and inductive loads across all 32 channels to validate optical isolation barriers and switching response times. Finally, the card is wrapped in dissipative ESD-safe packaging to ensure it survives transit straight to your plant floor.

Field Engineer’s Pitfall Guide

• ❗ Firmware Revision Mismatch: Dropping a newer revision CC- onto an outdated controller backplane without verifying the system software tree can trigger communication faults. Check your node configuration files before initiating a hot-swap.
• ❗ Inductive Kickback Protection: When driving large interposing relays or solenoids without built-in suppression diodes, inductive flyback voltage can degrade output transistors over time. Ensure proper external diode snubbers are installed on heavy field loads.
• ❗ Total Bus Power Limitations: Sourcing 0.5 A across multiple active channels simultaneously places heavy demand on cabinet power supplies. Verify your 24VDC bus supply headroom before pulling maximum rated load current.

Intent-Driven FAQ

• Can I hot-swap the CC- without crashing the rack? Yes, the Series-C architecture supports hot-swapping under normal operating conditions, provided you follow proper hardware release procedures and ensure the replacement card matches your exact configuration.
• Is the CC- compatible with older controller firmware revisions? Compatibility depends on your specific system profile release. Verify your node builder database version, as older software loads may require a minor patch to correctly map the 32 output channels of the CC-.
• How do you verify the authenticity of surplus units? Every CC- we supply is sourced directly from decommissioned industrial inventory, verified for original component markings, and bench-tested under power.
• What is the standard warranty on this module? We back every CC- unit with a comprehensive 12-month replacement warranty covering any functional defects.
• Does this module use fused or fuse-less short-circuit protection? The CC- incorporates electronic fault-sensing architectures designed to handle brief overloads, but external fusing should always match local plant safety standards for field wiring protection.
