HIMA X-DO3201 985210214 | HIMax SIL 3 Digital Output Module In-Stock
Dynamic Product Introduction
A single channel short-circuit or driver fault on a safety digital output card can trip critical process valves or initiate an unplanned unit shutdown across burner management or emergency isolation systems. The HIMA X-DO3201 (P/N: 985210214) acts as a high-density, fault-tolerant switching engine within the HIMax modular safety platform. Built to satisfy stringent IEC 61508 SIL 3 parameters, it provides galvano-isolated 24 VDC output control across 32 independent field channels, executing safety logic without false trips or switching delays.
When an operational output module experiences driver component fatigue, field wiring fault latches, or internal channel testing failures mid-process, obtaining a verified drop-in HIMA X-DO3201 replacement unit keeps critical safety loops online. Installing a fully bench-tested replacement card enables control room engineers to hot-swap or slot the module directly into designated HIMax baseplates without modifying field termination assemblies or re-engineering safety project files in SILworX. Swapping out a degraded module immediately restores precise actuator control, line-monitoring diagnostics, and total SIL 3 safety integrity.

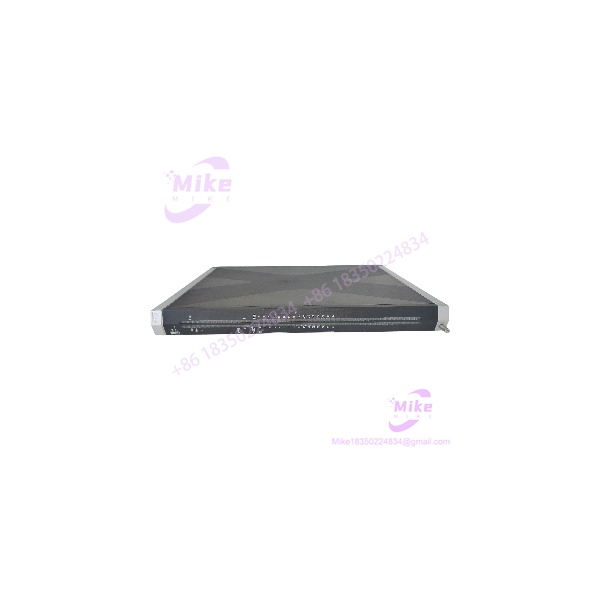

X-DO3201
Key Technical Specifications
- Model Designation: X-DO 32 01
- OEM Part Number: 985210214
- Manufacturer: HIMA Paul Hildebrandt GmbH
- System Family: HIMax Safety System Architecture
- Safety Rating: SIL 3 (IEC 61508 / IEC 61511), Category 4 / PL e (EN ISO 13849-1)
- Output Density: 32 digital channels (galvanically isolated in groups)
- Nominal Output Voltage: 24 VDC
- Maximum Switching Current: 0.5 A per channel (short-circuit proof)
- Line Monitoring: Integrated open-circuit and short-circuit detection per channel
- Operating Temperature Range: -20°C to +60°C (-4°F to 140°F)
- Storage Temperature Range: -40°C to +85°C (-40°F to 185°F)
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring secondary-market safety I/O hardware like the HIMA X-DO3201 (985210214) requires exhaustive bench testing to verify output driver performance, automatic pulse-testing diagnostics, and backplane bus integration. Every incoming module passes through an intensive five-stage quality assurance protocol:
- Inbound Verification: Part numbers (985210214), revision states, and serial credentials are validated against original HIMA factory production databases. Technicians examine multi-pin backplane connectors, PCB traces, and front panel latches for physical wear or stress.
- Live Simulation: The HIMA X-DO3201 is inserted into an active HIMax test rack powered by redundant SIL 3 24 VDC power modules.
- Diagnostics: Technicians connect simulated inductive and resistive loads across all 32 channels using SILworX test routines. Internal self-test algorithms (dark/light test pulses) are verified to confirm short-circuit and open-load detection triggers accurately without de-energizing active loads. The module then completes a 24-hour thermal chamber burn-in under full switching capacity to rule out driver thermal degradation.
- Final Prep: Memory states are cleared, backplane contact pins are treated with specialized electrical contact restorer, and the module is sealed in static-shielding ESD packaging before dispatch.
The Field Engineer’s Pitfall Guide
- ❗ Connecting Unsuppressed Inductive Loads: —though the X-DO3201 features robust onboard short-circuit protection, switching large inductive loads (solenoid valves or heavy relays) without external flyback diodes or suppressor circuits can induce back-EMF voltage spikes that damage channel output transistors over time.
- ❗ Line Monitoring Tripping on Unused Channels: Leaving unused output channels enabled in SILworX without proper dummy load resistors or software channel deactivation will trigger permanent open-circuit line fault alarms on the front status LEDs and system diagnostic logs.
- ❗ Total Module Power Limit Oversights: Operating all 32 channels simultaneously at full 0.5 A rating exceeds maximum thermal and power dissipation limits for single group power feeds. Always cross-reference total load current distribution against HIMax baseplate supply limits.
Intent-Driven FAQ
What is the primary function of the HIMA X-DO3201 (P/N: 985210214) module?
The X-DO3201 provides 32 fail-safe 24 VDC digital output channels for driving safety-critical field devices such as ESD valves, trip relays, alarm horns, and status indicators in SIL 3 safety systems.
Does the X-DO3201 support line monitoring for field wiring faults?
Yes. The module actively monitors each channel for open circuits (wire breaks) and short circuits, reporting precise channel-level diagnostics to the SILworX engineering environment without interrupting process operations.
Can the HIMA X-DO3201 be hot-swapped while the HIMax safety system is running?
Yes. In a redundant or properly configured HIMax baseplate system, the X-DO3201 supports live insertion and removal (hot-swapping). The system automatically re-establishes communication and updates module parameters upon insertion.
What causes a channel LED on the X-DO3201 to illuminate red or yellow?
A red channel LED indicates a field wiring fault (short circuit or wire break) or an internal channel driver error. A yellow LED typically indicates channel forcing or an active diagnostic override mode initiated via SILworX.
What warranty coverage comes with pre-inspected HIMA X-DO3201 modules?
All verified HIMA X-DO3201 (985210214) digital output modules come backed by a comprehensive 1-year replacement warranty. If the unit experiences output driver failure, line monitoring faults, or backplane communication drops under standard operating parameters within 12 months, it is swapped directly from available warehouse inventory stock.
