HIMA HIMatrix F30 010 03 | SIL3 Safety PLC Controller
Dynamic Product Introduction
Safety controllers are rarely replaced because they are completely dead. More often, they become difficult to maintain because firmware versions, programming tools, spare availability, and plant lifecycle requirements start working against the installed system.
The HIMA HIMatrix F30 010 03 is a compact safety controller designed for applications requiring certified safety logic execution and distributed automation communication. It integrates safety processing, digital I/O, Ethernet networking, and fieldbus communication into a single industrial controller package.
The F30 010 03 provides 20 digital inputs and 8 digital outputs with integrated Ethernet switching capability. It is commonly applied in safety systems for machinery, process automation, burner management, transportation, and other applications where deterministic safety response is required.
Compared with traditional safety relay architectures, this HIMatrix controller allows more complex safety logic execution, diagnostics, and communication handling. The controller supports HIMA engineering environments and safety-related programming workflows rather than simple hardwired interlock replacement.
In field deployments, the hardware swap is usually the easy part. The difficult work involves restoring the approved safety application, validating configuration checksums, confirming communication parameters, and proving the complete safety function again.

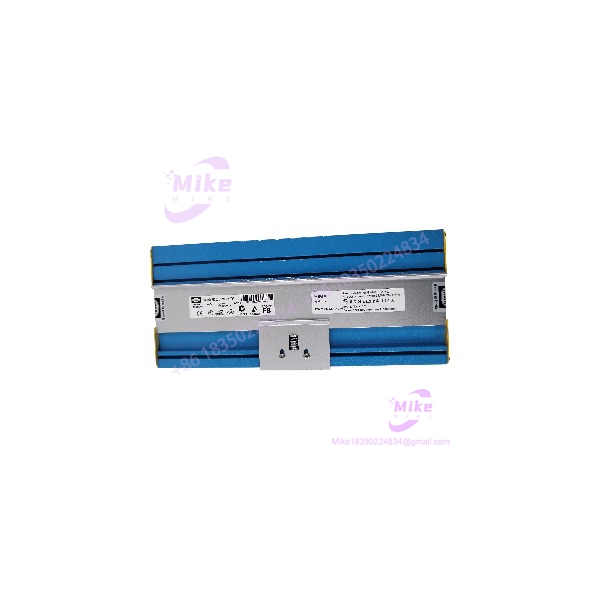

F30 010 03
Key Technical Specifications
- Model: F30 010 03
- Manufacturer: HIMA
- Product Family: HIMatrix Compact Safety Controller
- Controller Type: Safety-related programmable electronic system (PES)
- Safety Rating: Up to SIL 3 according to IEC 61508
- Digital Inputs: 20 channels
- Digital Outputs: 8 channels
- Input Type: 24 VDC digital inputs
- Output Type: 24 VDC semiconductor outputs
- Ethernet Ports: 4 × RJ45 10/100Base-T integrated switch
- Fieldbus Interfaces: Up to 3 × 9-pin D-sub interfaces depending on configuration
- Programming Environment: SILworX engineering tool
- Operating Voltage: 24 VDC supply
- Operating Temperature: 0°C to +60°C
- Protection Class: IP20
- Dimensions: Approximately 257 × 114 × 66 mm
- Weight: Approximately 1.2 kg
- Program/Data Memory: Approximately 5 MB minus CRC storage area
- Response Time: ≥ 6 ms depending on application configuration
Global Sourcing & Live-Test SOP (Transparency Core)
For surplus HIMA HIMatrix F30 010 03 inventory, a basic power-up test is not enough.
Safety controllers are configuration-dependent devices. A unit may boot normally while still containing incompatible firmware, missing application logic, or incorrect communication parameters.
Inbound Verification
Each incoming F30 010 03 should receive:
- Exact model verification
- Hardware revision recording
- Serial number capture
- Housing inspection
- Terminal inspection
- Connector condition check
Inspection points:
- Ethernet RJ45 ports
- Fieldbus connectors
- Power terminals
- Digital I/O terminals
- Mounting clips
Verify the controller identity before testing. HIMatrix models can appear mechanically similar while having different I/O counts and application roles.
Live Simulation
A proper validation setup should include:
- Compatible 24 VDC power supply
- HIMA engineering environment
- Network connection
- Simulated digital field signals
Test sequence:
- Power the controller.
- Confirm boot sequence.
- Check diagnostic LEDs.
- Establish engineering communication.
- Verify I/O recognition.
- Execute controlled safety application tests.
Digital input simulation:
- Apply 24 VDC input signals.
- Confirm channel recognition.
- Validate diagnostics.
Digital output simulation:
- Command outputs.
- Measure switching behavior.
- Verify fault handling.
The F30 010 03 digital outputs include overload handling behavior, where affected outputs can be switched off and cyclically tested again.
Diagnostics
Recommended equipment:
- Fluke multimeter
- 24 VDC laboratory supply
- Ethernet diagnostic tools
- HIMA SILworX engineering workstation
Diagnostic checks:
- Firmware identification
- Communication status
- I/O diagnostics
- Safety CRC verification
- Ethernet link stability
- Fault history review
For safety equipment, configuration integrity matters as much as hardware condition.
Final Preparation
Before shipment:
- Record firmware information.
- Record hardware revision.
- Document test results.
- Protect connectors.
- Apply ESD-safe packaging.
- Maintain serial traceability.
A tested safety controller should arrive with enough information for engineers to determine whether it fits their existing safety lifecycle.
The Field Engineer’s Pitfall Guide
❗ Do not replace the F30 010 03 without verifying the safety application checksum.
A replacement controller can start correctly while running the wrong application configuration. I’ve seen commissioning teams spend days troubleshooting field wiring when the actual problem was an unmatched safety project version.
❗ Do not ignore firmware and engineering tool compatibility.
HIMA safety controllers depend heavily on approved engineering environments. A project created with a newer SILworX version may require specific controller firmware support before download or operation.
❗ Do not treat safety I/O wiring like standard PLC wiring.
Input diagnostics, line monitoring behavior, and test pulse requirements must match the original safety design. Copying terminal wiring from a similar-looking controller can create hidden safety faults.
Intent-Driven FAQ
What is the HIMA HIMatrix F30 010 03 used for?
The HIMA HIMatrix F30 010 03 is a compact safety controller used for safety-related automation applications requiring certified logic processing, digital I/O, and industrial communication.
How many I/O points does the F30 010 03 have?
The controller provides 20 digital inputs and 8 digital outputs.
Is the F30 010 03 a normal PLC?
No. The F30 010 03 is a safety-rated controller designed for safety functions, certified processes, and validated applications.
Can I directly replace an older F30 010 03 with another unit?
Usually yes from a hardware perspective, but the replacement requires verification of:
- Firmware compatibility
- Safety project version
- Configuration checksum
- Communication settings
- I/O mapping
Does the F30 010 03 support Ethernet communication?
Yes. The controller includes four RJ45 10/100Base-T Ethernet ports with an integrated switch.
Can the F30 010 03 be hot-swapped?
No. Safety controller replacement should follow approved shutdown, verification, and validation procedures.
What should be tested before installing a used F30 010 03?
A proper test should include:
- Power-up verification
- Network communication check
- Digital input simulation
- Digital output testing
- Diagnostic review
- Firmware identification
Procurement verdict: The HIMA HIMatrix F30 010 03 remains a practical replacement component for existing HIMatrix safety installations where maintaining the approved safety architecture is preferred over complete system migration.
For sourcing, verify the complete lifecycle requirements: F30 010 03 hardware revision, firmware compatibility, SIL application backup, communication configuration, and safety validation records. In safety automation, a controller is not just a hardware asset — it is part of a certified protection function.
