VMIC GE Fanuc PCIE-5565PIORC-10000 | 128MB Multimode Reflective Memory Specs
Architect’s Product Breakdown
The VMIC / GE Fanuc PCIE-5565PIORC-10000 operates as an advanced reflective memory node card specifically populated with 128 MB of onboard SDRAM and a multimode fiber-optic LC transceiver. Designed for flight simulation, hardware-in-the-loop (HIL) testing, and high-speed distributed automation where deterministic sub-microsecond memory synchronization is required, this hardware model automatically mirrors written memory blocks across up to 256 interconnected systems. Operating over a 2.125 GBaud serial fiber link, it sustains transfer rates up to 170 MB/s without relying on host operating system networking stacks or TCP/IP protocol overhead.
Deploying or replacing this exact model variant requires verifying physical fiber media parameters and ordering configuration digits. The -10000 suffix specifies a 128 MB RAM capacity paired with multimode optical transceivers intended for fiber cable runs up to 300 meters. When performing hardware swaps in active simulator racks or real-time test benches, engineers must inspect optical connectors for dust contamination and ensure that cable polarity (TX-to-RX) across the optical ring is correctly maintained to avoid ring sync faults.

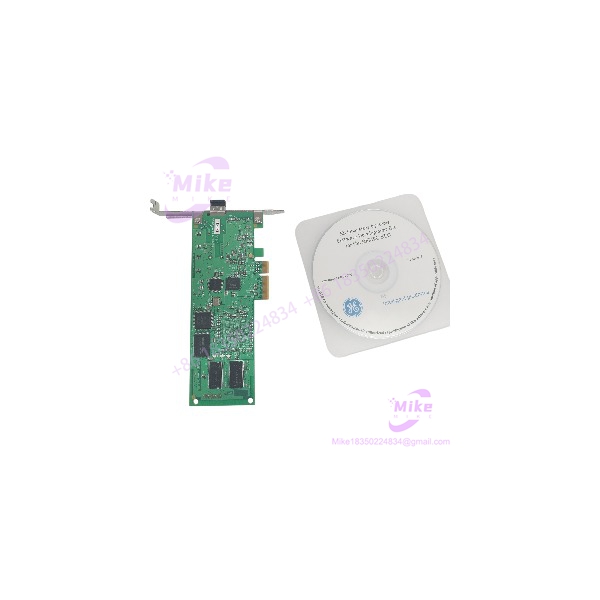

PCIE-5565PIORC-10000
Key Technical Specifications
- Manufacturer: VMIC (GE Intelligent Platforms / Abaco Systems)
- Product Category: PCI Express Reflective Memory (RFM) Node Card
- Part Number / Catalog No.: PCIE-5565PIORC-10000 (also styled as PCIE-5565-PIORC-10000)
- Onboard Memory Capacity: 128 MB SDRAM (with error/parity detection)
- Optical Transceiver Type: Multimode Fiber Optic Transceiver (LC connector interface)
- Maximum Optical Distance: Up to 300 meters using standard multimode fiber cable
- Fiber Optic Transfer Rate: 2.125 GBaud serial link speed
- Sustained Data Throughput: Up to 170 MB/s (64-byte burst writes)
- Bus Architecture: x1 PCI Express (low-profile and full-height bracket compatible)
- Supported Network Topology: Ring or Star topology (up to 256 nodes)
- Operating Temperature Range: 0°C to +65°C (forced air cooling)
- Weight: Approximately 90 g (0.2 lbs)
Field Engineer’s Pitfall Guide (Unique Value)
- Hot-Swapping Under Power: Never insert or remove the PCIE-5565PIORC-10000 card while the host computer chassis is energized. Live plugging in standard PCI Express expansion slots risks shorting power rails and damaging host motherboard PCIe root complex channels.
- Plugging Multimode Hardware into Single-Mode Fiber: The
-10000configuration variant is designed strictly for multimode fiber optic cabling. Connecting single-mode fiber runs or mixing single-mode transceivers within the same reflective memory loop will result in severe signal attenuation, leading to continuous bit-error rates or loss of ring synchronization. - Contaminated Optical Ferrules: Dust particles on LC fiber connectors will cause signal degradation across 2.125 GBaud serial lines. Always clean fiber ends with optical-grade alcohol wipes and keep protective dust caps installed on the transceiver ports when disengaged.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo microscopic examination to confirm clean gold-finger edge connectors, unblemished multimode LC optical transceivers, undamaged surface-mount capacitors, and authentic OEM labeling.
- Live Test Bench Environment: Cards are seated in a dedicated PCIe industrial test chassis running validated Windows, Linux, or VxWorks driver packages to verify PCI configuration space registers and hardware recognition.
- Optical Ring Loopback & Memory Stress Diagnostics: Technicians attach multimode LC fiber loopback jumpers, executing high-speed memory block writes at 170 MB/s to confirm bit-error-free operations, hardware parity checks, and 128 MB RAM integrity.
- Anti-Static Packaging: Post-testing units are fitted with protective optical dust caps, sealed in conductive ESD shielding bags, and cushioned in high-density foam for shipment.
Technical FAQ
Can I hot-swap the PCIE-5565PIORC-10000 card while the host computer is powered on?
No. Standard PCI Express expansion slots do not support live hot-swapping. Always power down the host computer completely before installing or servicing this board.
What does the “-10000” suffix indicate on this specific model?
The -10000 ordering code indicates that this specific board is factory-configured with 128 MB of onboard SDRAM memory and a multimode fiber optic transceiver rated for distances up to 300 meters.
Can I mix 128 MB and 256 MB Reflective Memory cards in the same optical network ring?
Yes, but the total addressable shared memory across the network ring will be constrained to the capacity of the smallest memory node unless memory offsets are explicitly managed in software.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed reflective memory modules typically carry a 12-month operational warranty covering material and manufacturing defects under standard laboratory or industrial conditions.
