GE MTL 8202-HO-IS | PAC8000 Process I/O Hazardous Area Unit
Architect’s Product Breakdown
The MTL 8202-HO-IS functions as a high-integrity, intrinsically safe analog output interface designed to control final control elements—such as I/P converters, control valve positioners, and variable-speed drives—mounted directly within hazardous process environments (Zone 1 or Division 1 areas). As part of the PAC8000 modular remote I/O architecture, it bridges the control system logic with field devices while providing built-in galvanic and optical isolation barriers. The module also features native HART communication pass-through, allowing engineers to configure, monitor, and diagnose smart field actuators digitally without disrupting the active 4–20 mA analog control loop.
Engineering deployment requires absolute compliance with intrinsic safety loop documentation, entity parameters, and strict wiring segregation rules. Because the field circuits carry energy-limited [EEx ia] classifications, cable capacitance and inductance must be accounted for to prevent sparking hazards. When replacing or maintaining this unit within an active node rack, technicians must verify that power to the specific IS railbus segment is managed according to plant safety policies, and that the physical keying code aligns with the designated carrier slot to prevent installation errors.

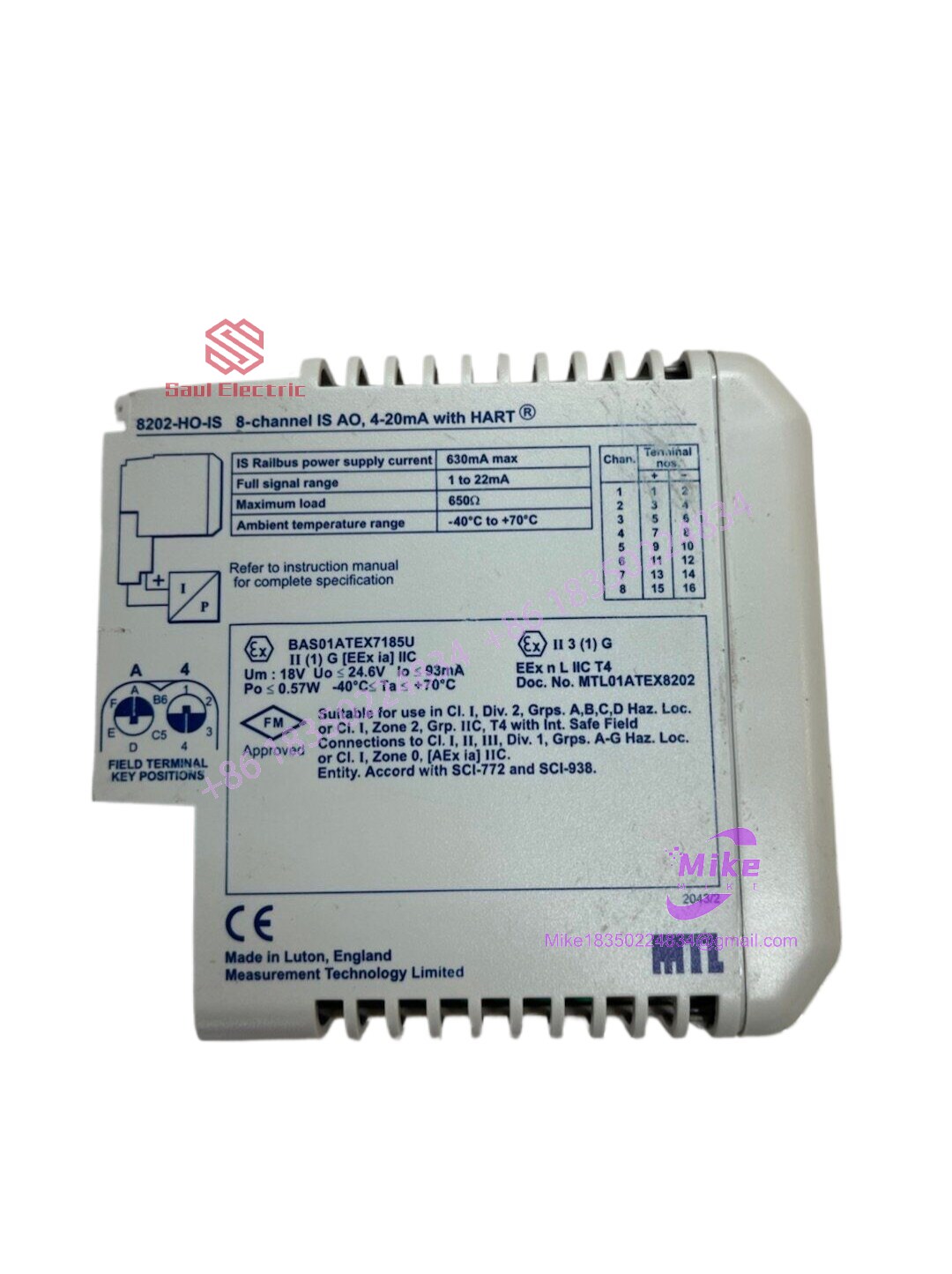

8202-HO-IS
Key Technical Specifications
| Core Parameter | Technical Specification |
| Module Type | Intrinsically Safe Analog Output (AO) with HART |
| Channel Count | 8 Isolated Channels |
| Nominal Signal Range | 4 to 20 mA DC current output |
| Open Circuit Voltage (Voc) | \le 24 VDC (Entity parameter limit) |
| Max Short-Circuit Current (Isc) | \le 93 mA (Entity parameter limit) |
| Hazardous Area Protection | [EEx ia] IIC Field Circuits |
| Isolation Barrier | Galvanic isolation between field loops, railbus, and logic power |
| Operating Temperature | -40°C to +70°C industrial rating |
Field Engineer’s Pitfall Guide
- Warning: Mixing IS and Non-IS Output Wiring. Never route non-intrinsic safety signal cables through marshalling ducts or terminal blocks shared with the 8202-HO-IS loops. I once debugged an annual safety audit failure where an overzealous electrician zip-tied standard 24V discrete signal wires to an IS analog output run, immediately violating separation distances and forcing a system shutdown.
- Warning: Actuator Loop Resistance Limits. When driving high-impedance valve positioners through long cable runs in hazardous areas, verify that the total loop resistance does not exceed the maximum compliance voltage driving capability of the module, or the valve will saturate before reaching 100% stroke.
- Warning: Hot-Plug Carrier Keying Resistance. Do not force the module into a mismatched carrier slot. The physical key code protects the intrinsically safe bus architecture; forcing an incorrect card can damage backplane interface pins.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Inspected under magnification for OEM safety classification labels, intact tamper-evident seals, and unblemished gold-plated backplane pins.
- Live Test Bench Rack Validation: Mounted on an active PAC8000 intrinsically safe test backplane powered by designated IS power supply modules.
- Signal & HART Handshake Diagnostics: Each of the 8 channels is tested across full output spans (4, 12, and 20 mA) while verifying HART frequency-shift keying (FSK) communication pass-through and open-circuit fault detection thresholds.
- Environmental Packaging: Sealed in anti-static, moisture-barrier shielding bags complete with ESD protection to safeguard sensitive digital-to-analog conversion circuits during transit.
Technical FAQ
Can I use the 8202-HO-IS to drive devices located in a Zone 1 hazardous area?
Yes. The module features intrinsic safety ratings ([EEx ia] IIC) designed specifically to interface safely with final control elements located in hazardous Zone 1 or Division 1 environments.
Does this module support HART communication pass-through on output loops?
Yes. The module natively supports HART multi-drop and point-to-point communication, enabling asset management systems to talk directly to smart valve positioners through the railbus network.
Do I need external zener barriers or galvanic isolators with this module?
No. The 8202-HO-IS incorporates built-in intrinsically safe isolation circuitry for each channel, removing the need for external marshalling barrier strips when wired to approved field devices.
Is configuration handled via physical switches on the module?
No. There are no physical DIP switches or jumpers. All operational parameters, safety limits, and fault diagnostic configurations are managed entirely via software through the network bus controller.
