GE MTL 8121-DI-DC | PAC8000 Modular Process I/O Part
Architect’s Product Breakdown
The MTL 8121-DI-DC functions as a high-density 16-channel discrete input interface within the PAC8000 modular I/O framework, widely deployed across distributed control systems and packaged process skids. Its primary responsibility is acquiring digital status inputs—such as dry contact switches, proximity detectors, and pulse trains—from the field and converting them into high-speed logic data transmitted over the railbus backplane. Powered directly by the module bus configuration, it supports selectable input filtering, state latching, and pulse counting modes without requiring individual channel-to-channel galvanic isolation barriers.
System integration requires careful evaluation of common-mode voltage limits and field power distribution. Because the 8121-DI-DC features non-isolated, module-powered sourcing inputs, all connected field contacts must share a common reference tied to the bussed field power architecture. When replacing this unit in an active cabinet, technicians must verify keying pin alignment (Key Code E1) and ensure node configuration software correctly matches input filter parameters to prevent erratic pulse counting or missed transition states during high-speed operation.

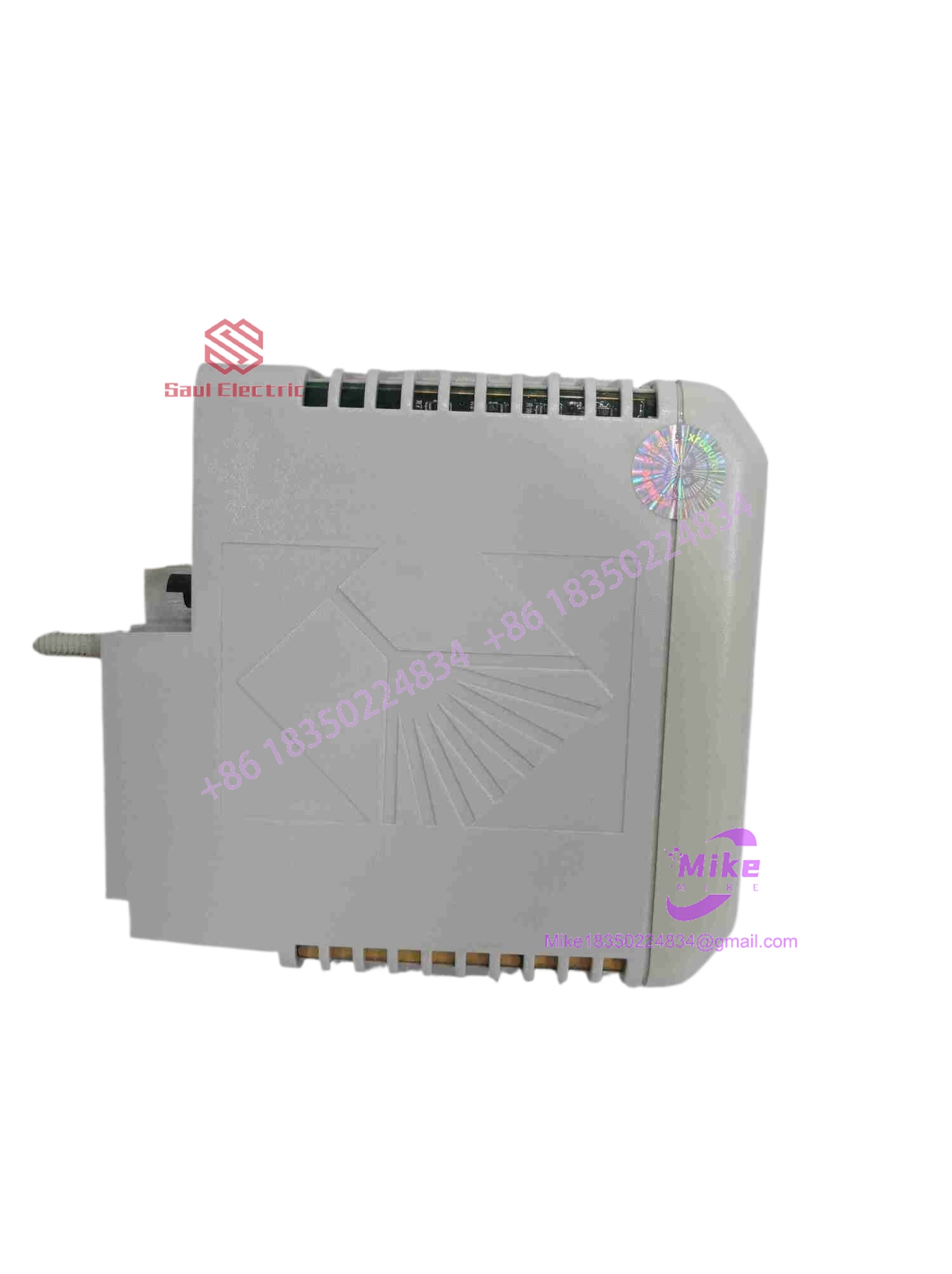

8121-DI-DC
4. Key Technical Specifications
| Core Parameter | Technical Specification |
| Module Type | Discrete Input (DI) Module, Non-Isolated, Sourcing |
| Channel Count | 16 Single-Ended Channels |
| Input Voltage Range | 18–30 VDC (Nominal 24VDC module-powered) |
| ON/OFF Thresholds | ON current >1.2 mA; OFF current <0.3 mA (Wetting current ~2.8 mA typ.) |
| Input Response / Filtering | Selectable filters (Fast, slow, user-defined); Max pulse frequency 100 Hz |
| System Compatibility | MTL / PAC8000 Railbus Backplane Architecture |
| Isolation | 250 VAC channel-to-Railbus isolation ( žádná channel-to-channel isolation) |
| Operating Temperature | -40°C to +70°C industrial environmental rating |
Field Engineer’s Pitfall Guide
- Warning: Common-Mode Ground Faults. Do not mix external unisolated power sources across field contacts on the 8121-DI-DC. I once debugged a persistent ghost-switching issue on a turbine skid where an external loop supply was cross-tied to the module’s common return, injecting noise that scrambled half the discrete input registers. Stick strictly to the designated bussed field power distribution.
- Warning: Pulse Counting Filter Mismatch. If utilizing the module for high-speed pulse counting up to 100 Hz, ensure the software input filter is toggled to the fast profile. Leaving the filter on default slow mode will clip rapid square waves and result in massive totalization errors.
- Warning: Hot-Plug Key Code Verification. Verify that the module carrier key code matches the E1 key assignment before pushing the card home; forcing an incompatible module variant can damage backplane interface pins.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Inspected for uncompromised OEM housing stamps, clean gold-plated backplane connectors, and lack of component thermal stress.
- Live Test Bench Rack Validation: Inserted into a standardized PAC8000 test backplane powered by regulated 24VDC railbus supplies.
- Signal & Handshake Diagnostics: All 16 channels are stepped through simulated ON/OFF states and pulse trains to verify threshold switching accuracy, input filter response times, and railbus handshaking.
- Environmental Packaging: Enclosed in anti-static shielding bags and packed with high-density cushioning to protect surface-mount microprocessors during transit.
Technical FAQ
Can I hot-swap this module while the process rack is energized?
Yes. The PAC8000 hardware architecture supports hot-swapping under power in non-hazardous or appropriately rated Zone 2 / Division 2 environments, provided proper software node overrides are engaged.
Does this module require physical jumper settings for input configuration?
No. All configuration parameters—including input filtering, state latching, polarity inversion, and pulse counting modes—are managed entirely through software configuration over the railbus network.
What is the exact condition of this replacement hardware?
Units are supplied as New Surplus or verified factory-original components, fully tested for electrical continuity and ready for deployment in legacy PAC8000 node racks.
Are the input channels isolated from one another?
No. The 8121-DI-DC is a non-isolated module where all 16 channels share a common internal reference tied to the module’s power architecture, though they maintain a 250 VAC isolation barrier against the railbus backplane.
