GE XMTC-62-21 | Thermal Conductivity Oxygen/Gas Transmitter In-Stock
Dynamic Product Introduction
Loss of real-time gas composition feedback in hydrogen-cooled generators, blanket gas systems, or gas separation plants can trigger severe safety shut-downs and product contamination. The GE Panametrics XMTC-62-21 acts as an inline thermal conductivity analyzer, translating real-time gas sample changes into precise analog loop outputs. Engineered specifically to eliminate moving parts and glass-encapsulated filaments, its solid-state thermistor sensor withstands high-vibration sample panel mounting while delivering ultra-low drift composition analysis across demanding refinery and chemical process environments.
When an operational transmitter suffers sensor poisoning, thermal block heater failure, or current loop driver drift mid-process, obtaining an exact-fit GE XMTC-62-21 replacement unit keeps gas monitoring loops running without process downtime. Installing a fully bench-tested replacement module allows instrument technicians to install the unit directly onto existing sample system plates without modifying gas sample lines or re-routing field loop power wiring. Replacing a failing transmitter restores stable zero/span calibration boundaries, rapid response times, and dependable process control loops.

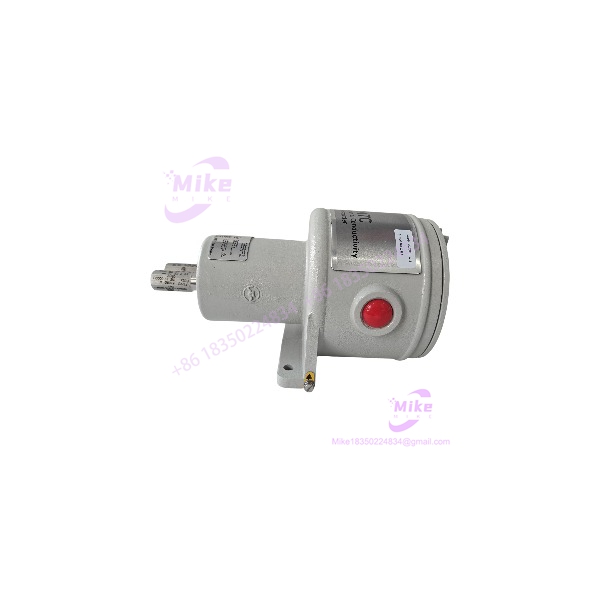

XMTC-62-21
Key Technical Specifications
- Model Designation: XMTC-62-21
- Manufacturer: GE Infrastructure Sensing / Panametrics (Baker Hughes)
- Measurement Principle: Solid-state thermal conductivity thermistor bridge
- Target Gas Applications: Binary/pseudo-binary gas mixtures (H2, He, N2, O2, CO2, CH4)
- Operating Voltage: 24 VDC (±10%, loop or external powered)
- Signal Output: Isolated 4–20 mA analog output (RS-232/485 digital setup interface)
- Temperature Compensation: Internal thermostatically controlled sensor block (standard 55°C / 131°F setpoint)
- Enclosure Rating: Heavy-duty explosion-proof / flameproof enclosure (Class I, Division 1 / Zone 1 rating options)
- Sample Gas Pressure Limits: 0.1 to 2 bar gauge (1.5 to 30 psig standard)
- Operating Ambient Temperature: -10°C to +50°C (14°F to 122°F)
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring secondary-market gas measurement hardware like the GE XMTC-62-21 requires strict laboratory calibration and bench testing to verify thermistor bridge balance, block heater stability, and loop driver accuracy. Every incoming module passes through an intensive five-stage quality assurance protocol:
- Inbound Verification: Part numbers (XMTC-62-21), gas calibration tags, and explosion-proof enclosure seals are cross-referenced with GE Panametrics manufacturing databases. Technicians carefully examine thread paths, gas port fittings, and internal terminal blocks for corrosion or physical wear.
- Live Simulation: The GE XMTC-62-21 is mounted to an automated gas calibration manifold and powered using a regulated 24 VDC industrial power source.
- Diagnostics: Technicians supply certified zero and span reference gases (e.g., pure N2 and H2/N2 mixtures) across the sample cell to verify measurement linearity and 4–20 mA loop scaling. The internal thermostatically controlled block heater is monitored to confirm thermal equilibrium at design setpoint (55°C). The transmitter then undergoes a 24-hour thermal soak inside an environmental chamber to rule out measurement drift under ambient temperature swings.
- Final Prep: Internal configuration settings are returned to default baseline states, gas ports are capped with dust seals, terminal block screws are torque-verified, and the unit is sealed inside anti-static ESD packaging prior to freight dispatch.
The Field Engineer’s Pitfall Guide
- ❗ Flow Rate Instability Across the Sample Cell: —though the XMTC thermistor cell is designed to minimize flow sensitivity, fluctuations in sample flow exceeding 0.5 to 1.0 L/min will induce localized cooling across the thermal sensor. This causes false concentration readings and baseline drift. Always install a fine needle valve and rotameter upstream of the sample inlet.
- ❗ Liquid Condensation and Particulate Contamination: Allowing entrained liquids, aerosols, or heavy particulate matter into the sample cell will coat the thermistors and permanently destroy thermal conductivity sensing accuracy. Always ensure proper sample conditioning (coalescing filter and moisture trap) is operational upstream.
- ❗ Uncalibrated Sample Cell Block Temperature: Applying power to the unit without allowing the internal block heater to reach thermal equilibrium (typically requiring 30–45 minutes from cold start) will result in wildly inaccurate gas readings. Always verify the block temperature status indicator before performing zero/span adjustments.
Intent-Driven FAQ
What binary gas mixtures can the GE XMTC-62-21 analyze?
The XMTC-62-21 measures gas mixtures where the target gas component has a significantly different thermal conductivity than the background reference gas, such as Hydrogen in Nitrogen, Helium in Air, or CO2 in Methane.
Does replacing an XMTC-62-21 require recalibrating the unit with reference gases?
Yes. Although replacement units leave the bench factory-tested, every installation requires a two-point zero and span field calibration using certified reference gas bottles matching your facility’s exact process gas matrix.
What is the purpose of the integrated heated sample block in the XMTC-62-21?
The internal thermostatically controlled heater maintains the sensor cell at a constant elevated temperature (typically 55°C), isolating the thermal conductivity measurement from ambient temperature variations.
Why is the 4–20 mA output stuck at 3.8 mA or 21.0 mA on system startup?
An out-of-range analog current output typically signals an internal diagnostic fault, such as an unheated sensor block, an open thermistor circuit, or a sample gas concentration exceeding the configured span limits.
What warranty coverage comes with pre-inspected GE XMTC-62-21 transmitters?
All verified GE XMTC-62-21 gas transmitters come backed by a comprehensive 1-year replacement warranty. If the unit experiences thermistor failure, block heater failure, or current loop driver drift under standard operating parameters within 12 months, it is swapped directly from available warehouse inventory stock.
