MTL 8206-TI-IS | PAC8000 8-Channel Intrinsically Safe RTD Input
Architect’s Product Breakdown
The MTL 8206-TI-IS operates as a high-precision, intrinsically safe temperature input interface designed to acquire resistance temperature detector (RTD) signals directly from hazardous process environments (Zone 1 or Division 1 areas). As an integral component of the PAC8000 modular remote I/O architecture—frequently deployed alongside distributed control systems and industrial automation platforms—its primary duty is translating accurate thermal variations into digital data over the railbus backplane. The module features built-in galvanic isolation and energy-limiting barriers, eliminating the need for separate external marshalling zener barriers while protecting against induced voltage faults in volatile process zones.
Engineering deployment requires strict adherence to intrinsic safety loop documentation, lead-wire resistance compensation, and panel grounding protocols. Because the unit processes low-level resistance signals from sensors measuring critical process temperatures, shielding integrity is mandatory to prevent electromagnetic interference (EMI) distortion. When replacing or servicing this module in an active node rack, technicians must verify that power to the specific IS railbus segment is managed according to plant safety rules, and that the physical keying code aligns with the assigned carrier slot to prevent installation errors.

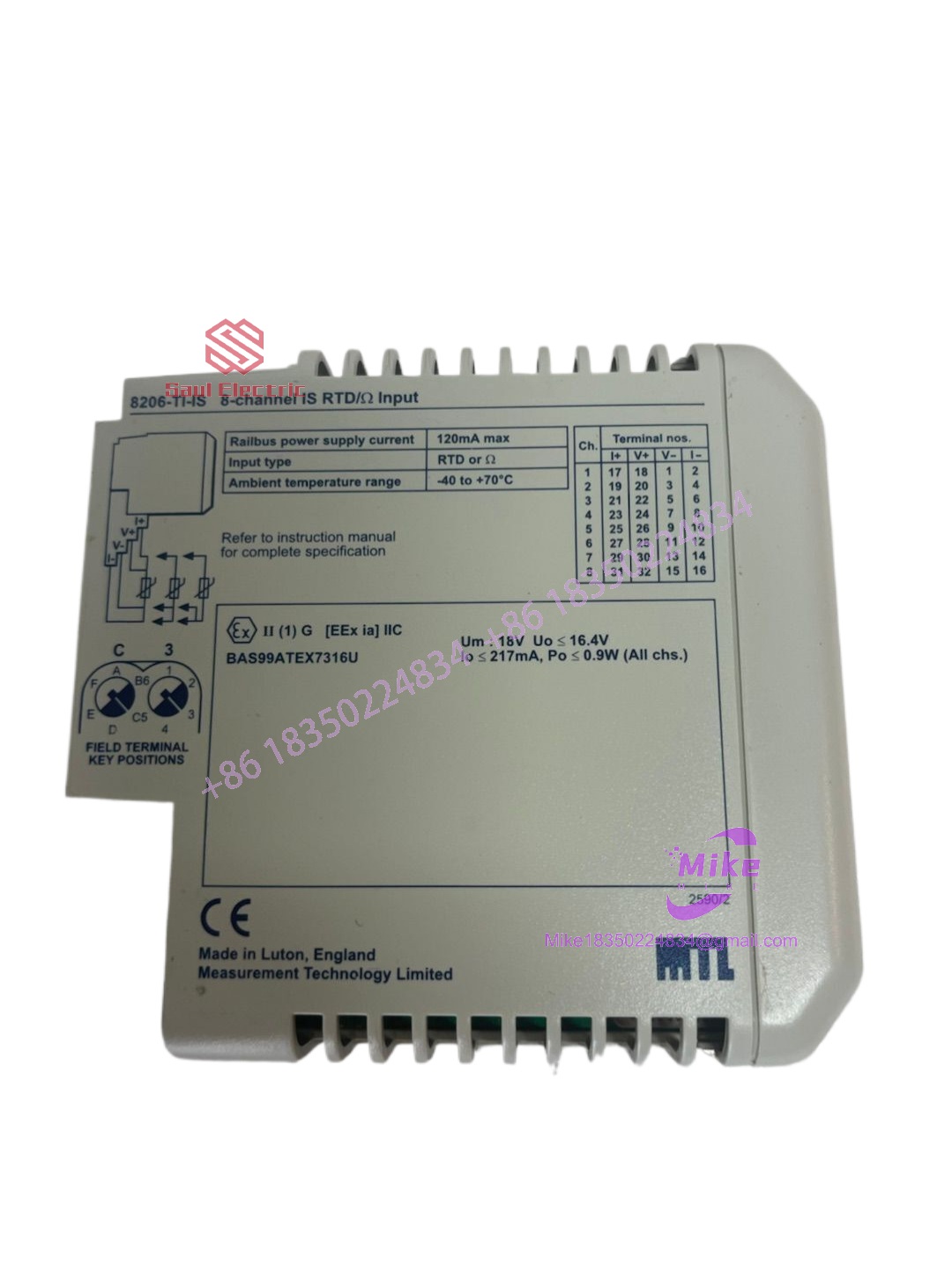

8206-TI-IS
Key Technical Specifications
| Core Parameter | Technical Specification |
| Module Type | Intrinsically Safe RTD Temperature Input Module |
| Channel Count | 8 Isolated Channels |
| Sensor Compatibility | Platinum, Copper, or Nickel RTDs (e.g., Pt100, Pt200, Pt500, Pt1000) |
| Wiring Configurations | Supports 2-, 3-, and 4-wire RTD connection setups |
| Hazardous Area Protection | [EEx ia] IIC Field Circuits |
| Isolation Barrier | Galvanic isolation between field sensor loops, railbus, and logic power |
| Operating Temperature | -40°C to +70°C industrial environmental rating |
Field Engineer’s Pitfall Guide
- Warning: Mixing IS and Non-IS Sensor Wiring. Never route standard non-intrinsic safety signal cables through marshalling raceways or terminal blocks shared with the 8206-TI-IS loops. I once debugged an audit failure on a chemical fractionator where an installation tech bundled non-IS thermocouple extension wire alongside IS RTD pairs, instantly violating separation distance mandates.
- Warning: RTD Lead-Wire Compensation Errors. When wiring 2-wire RTDs instead of 3- or 4-wire configurations, uncompensated cable resistance will skew temperature readings. Always configure software filter and lead-resistance compensation parameters to match actual physical field wiring.
- Warning: Hot-Plug Carrier Keying Resistance. Do not force the module into a mismatched carrier slot. The physical key code protects the intrinsically safe bus structure; forcing an incorrect card can bend backplane interface pins.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Inspected under magnification for OEM safety classification labels, intact tamper-evident seals, and unblemished gold-plated backplane pins.
- Live Test Bench Rack Validation: Mounted on an active PAC8000 intrinsically safe test backplane powered by designated IS power supply modules.
- Signal & Resistance Simulation: Each of the 8 channels is tested using high-precision decade resistance boxes simulating various RTD temperature curves to verify conversion accuracy and open/short-circuit detection thresholds.
- Environmental Packaging: Sealed in anti-static, moisture-barrier shielding bags complete with ESD protection to safeguard delicate analog measurement circuits during transit.
Technical FAQ
Can I use the 8206-TI-IS with sensors located in a Zone 1 hazardous area?
Yes. The module features intrinsic safety ratings ([EEx ia] IIC) designed specifically to interface safely with RTD sensors located in hazardous Zone 1 or Division 1 environments.
Does this module support 3-wire and 4-wire RTD configurations?
Yes. The module accommodates multi-wire RTD connections, allowing software configuration to compensate for lead-wire resistance and ensure high measurement accuracy.
Do I need external zener barriers or galvanic isolators with this module?
No. The 8206-TI-IS incorporates built-in intrinsically safe isolation circuitry for each channel, removing the need for external marshalling barrier strips when wired to approved field temperature sensors.
Is configuration handled via physical switches on the module?
No. There are no physical DIP switches or jumpers. All operational parameters, sensor types, and fault diagnostic thresholds are managed entirely via software through the network bus controller.
