GE IS200SCSAS1ADB | Mark VIeS I/O Expansion Board
Product Introduction
In a turbine safety system, an accessory board is part of a defined hardware architecture—not a generic spare that can be selected by appearance alone. The GE IS200SCSAS1ADB is associated with the SCSA board family, which GE documentation identifies as an I/O expansion accessory for the Mark VIeS Core Safety Protection system.
GE’s published documentation identifies the IS200SCSAS1A as an SCSA accessory used with the IS220YSILS1A/1B YSIL safety I/O pack. The documented SCSA interface supports analog inputs, thermocouple inputs, contact inputs and outputs, and transmitter power. However, the precise IS200SCSAS1ADB suffix-specific configuration should be confirmed before treating it as interchangeable with another SCSA assembly.
For maintenance and procurement teams, the priority is matching the complete assembly number, installed YSIL configuration, and board condition. A family-level match alone is not sufficient evidence of replacement compatibility.

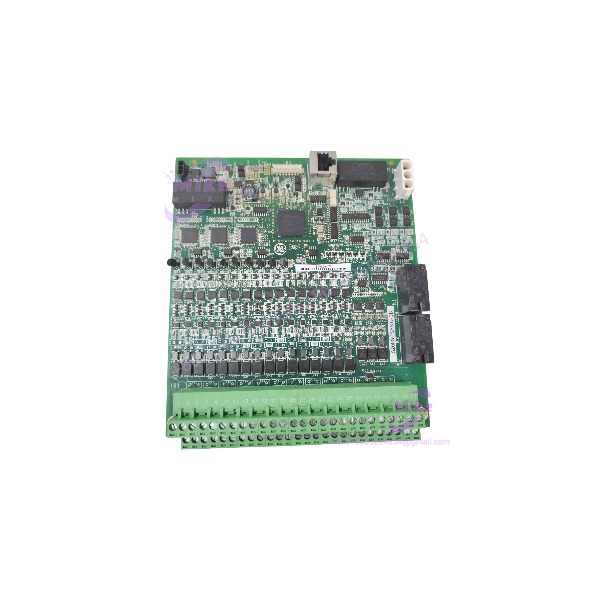

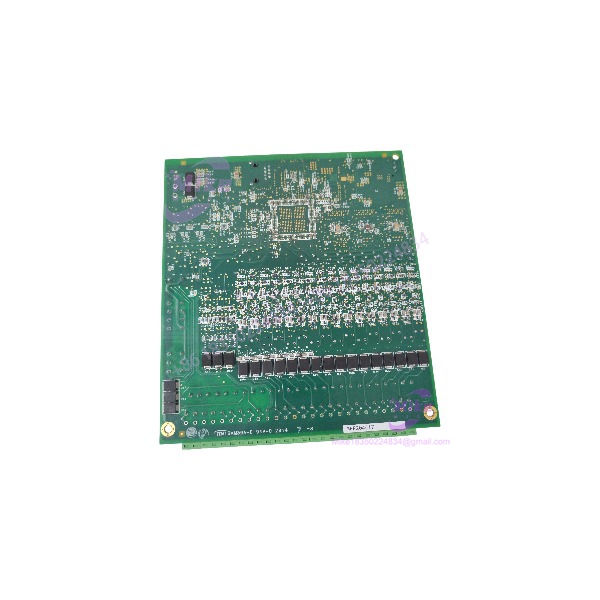

IS200SCSAS1ADB
Key Technical Specifications
- Manufacturer: General Electric
- Requested Part Number: IS200SCSAS1ADB
- Board Family: SCSA
- System Association: GE Mark VIeS Core Safety Protection
- Associated I/O Pack: IS220YSILS1A / IS220YSILS1B
- Board Category: I/O expansion accessory
- Contact Input Limit: 32 VDC
- Contact Output Limit: 30 VDC, 5 A
- Analog Input Range: 0–20 mA DC
- Thermocouple Input Range: -8 to +45 mV DC
- Transmitter Power Output: 24 VDC, 21 mA
- SCSA Power Supply Reference: 28 VDC, 0.75 A
- Documentation Basis: GE Mark VIe/Mark VIeS certification documentation
The electrical limits above are published for the SCSA family/interface in GE documentation. They should not be interpreted as confirmation that every channel, rating, or configuration applies identically to the exact IS200SCSAS1ADB assembly. Verify the complete suffix and board revision before using these values for commissioning or acceptance testing.
Global Sourcing & Live-Test SOP
For a used or surplus GE IS200SCSAS1ADB, require traceable identification and meaningful inspection evidence. A seller’s description alone is not proof of functional condition.
1. Inbound Verification
- Photograph the complete GE nameplate and all board markings.
- Confirm the requested part number.
- Record the board revision, serial number, and assembly identifiers.
- Inspect connectors, PCB edges, components, and mounting points.
- Check for corrosion, contamination, heat discoloration, or signs of repair.
- Compare the physical assembly with the customer’s original board.
- Verify the exact suffix against the installed system’s approved parts documentation.
2. Configuration and Compatibility Review
- Confirm whether the application uses a GE Mark VIeS YSIL safety I/O pack.
- Verify the associated IS220YSILS1A or IS220YSILS1B configuration, as applicable.
- Confirm the intended SCSA board position and connection arrangement.
- Check the system documentation for approved board revisions and replacement assemblies.
- Do not assume that a related SCSA part number is interchangeable without documented approval.
3. Controlled Functional Testing
Testing should be performed by qualified personnel using an appropriate GE-compatible test arrangement.
- Inspect the board before applying power.
- Confirm the approved supply and connection arrangement.
- Check startup behavior and available diagnostic indications.
- Verify relevant input/output functions using documented test procedures.
- Confirm measured values against the specifications applicable to the exact assembly.
- Record the test setup, results, and any faults observed.
Do not apply power or field signals based solely on family-level ratings. Use the applicable GE documentation for the exact assembly and system configuration.
4. Extended Run and Diagnostics
Where a suitable test setup is available, conduct an extended functional run appropriate to the board’s application.
Monitor:
- Diagnostic status
- Input/output response
- Supply stability
- Intermittent faults
- Abnormal heating
- Connector integrity
Record the test duration, board revision, test conditions, and observed results. Do not advertise the unit as fully tested unless the test scope supports that claim.
5. Final Preparation
- Record the complete model and revision.
- Photograph the board before packaging.
- Preserve available traceability and test records.
- Use ESD-safe packaging.
- Protect connectors and exposed components against impact.
- Clearly disclose whether the board is new surplus, used, refurbished, tested, or untested.
Field Engineer’s Pitfall Guide
❗ Do not treat IS200SCSAS1A and as automatically identical
GE documentation confirms the SCSA family and the IS200SCSAS1A accessory-board reference, but the exact DB suffix configuration needs independent verification. Match the full assembly number and revision against the installed system before substitution.
❗ SCSA is an accessory interface—not a generic communication card
The documented SCSA role is associated with the Mark VIeS YSIL safety I/O architecture. Do not list or install this board as a general-purpose Mark VI communication interface based on a reseller’s broad description. Confirm its intended system role and associated hardware.
❗ Family-level electrical ratings are not a complete test specification
GE’s published SCSA electrical limits are useful for identification and engineering review, but they do not replace the exact board’s installation and test documentation. Verify channel assignment, connection details, and applicable limits before energizing or simulating field signals.
Intent-Driven FAQ
What is the GE ?
It is a GE IS200-series board associated with the SCSA family. GE documentation identifies IS200SCSAS1A as an I/O expansion accessory for the Mark VIeS Core Safety Protection system. The exact DB suffix configuration should be confirmed before purchase or installation.
Is the used in GE Mark VIeS?
The SCSA family is documented for use with the IS220YSILS1A/1B Mark VIeS Core Safety Protection I/O pack. Confirm the precise assembly number and system configuration for the requested before treating it as a compatible replacement.
What signals does the SCSA interface support?
GE documentation describes analog inputs, thermocouple inputs, contact inputs and outputs, and transmitter power. Exact channel allocation and applicable ratings should be checked against the specific assembly’s documentation.
Can the replace IS200SCSAS1A?
Do not assume so. The exact suffix and revision may matter. Obtain confirmation from GE documentation or the system’s approved parts list before substituting the requested assembly for another SCSA variant.
Is the a hot-swappable board?
Do not assume it is hot-swappable. Treat replacement as a controlled maintenance operation under the site’s approved procedure. Follow GE and plant-specific instructions for isolating the equipment and maintaining the safety system.
Is the GE obsolete?
It belongs to a legacy GE turbine-control product ecosystem and may be sourced through industrial surplus channels. Current availability, lifecycle status, and condition should be verified with the supplier or GE support.
What should I verify before buying?
Confirm the complete model, nameplate, board revision, physical condition, test status, and compatibility with the installed Mark VIeS/YSIL configuration. Request clear photographs and supporting documentation, especially if the supplier describes the item simply as an SCSA or Mark VIe board.
Bottom Line for Buyers
The should be sourced as a configuration-specific GE control-system component. GE documentation supports the SCSA family’s role as an I/O expansion accessory in the Mark VIeS YSIL architecture, but the exact DB suffix remains a procurement verification point.
Before placing an order, request a nameplate photo, confirm the full assembly number and revision, and match it against the installed system’s approved parts documentation. Do not rely on family-level descriptions or physical similarity as proof of interchangeability.
