GE MTL 8201-HI-IS | PAC8000 Process I/O Hazardous Area Unit
Architect’s Product Breakdown
The MTL 8201-HI-IS operates as a high-integrity, intrinsically safe analog input interface designed for deployment directly within hazardous process environments (such as Zone 1 or Division 1 areas). Part of the PAC8000 remote process I/O architecture—frequently integrated alongside diverse distributed control systems and GE-backed automation platforms—its core responsibility is acquiring 4–20 mA signals from 2-wire field transmitters. The module features native HART pass-through capabilities, enabling bi-directional digital communication between smart field instruments and asset management software without requiring separate galvanic barrier hardware.
Engineering deployment requires strict adherence to intrinsic safety loop documentation, entity parameters, and panel grounding rules. Because field circuits are designated [EEx ia] IIC, cable capacitance and inductance limits must be meticulously calculated to maintain hazardous area compliance. When replacing this module in an active node, technicians must ensure that power to the specific IS railbus segment is managed according to site safety protocols, and that the physical keying code (Code A1) matches the carrier slot to prevent installation errors.

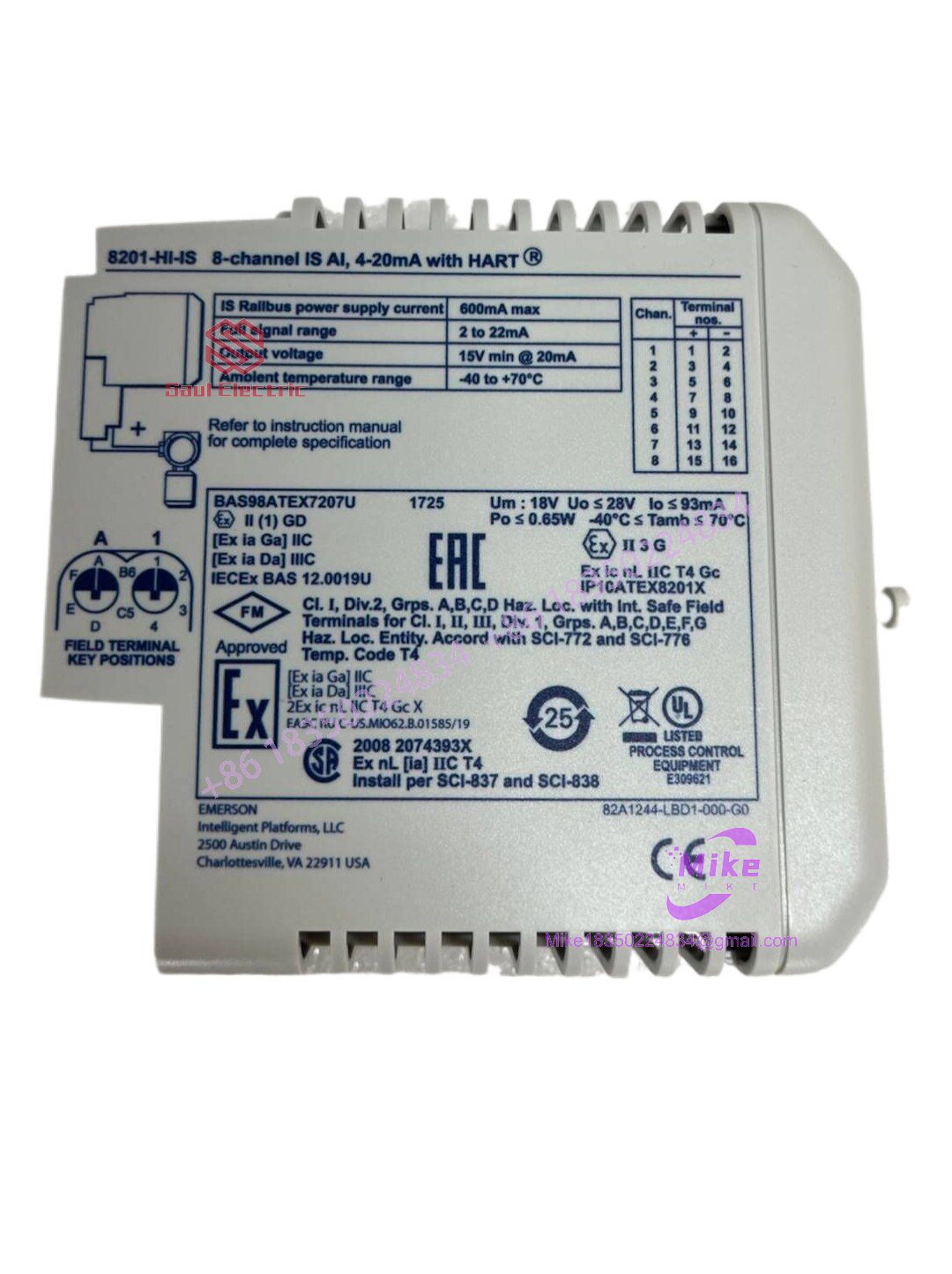

8201-HI-IS
Key Technical Specifications
| Core Parameter | Technical Specification |
| Module Type | Intrinsically Safe Analog Input (AI) with HART |
| Channel Count | 8 Single-Ended Channels |
| Nominal Signal Range | 4 to 20 mA (Full range: 0.5 to 22 mA) |
| Transmitter Supply Voltage | 15 V minimum @ 20 mA |
| Measurement Resolution | 16 bits |
| Hazardous Area Protection | [EEx ia] IIC Field Circuits (FM Entity Parameters: Voc \le 28 VDC, Isc \le 93 mA) |
| Isolation Barrier | 60 VAC channel-to-Railbus isolation |
| Operating Temperature | -40°C to +70°C industrial rating |
Field Engineer’s Pitfall Guide
- Warning: Mixing IS and Non-IS Field Terminals. Never route non-intrinsic safety signal wiring through marshalling terminals or cable ducts designated for the 8201-HI-IS loop. I once witnessed an entire commissioning hold-up because an installation crew bundled standard 24V discrete lines alongside IS analog pairs, violating separation distances and failing safety audit inspections.
- Warning: Entity Parameter Mismatches during Transmitter Swaps. When replacing field instruments connected to this module, always verify that the replacement transmitter’s maximum voltage and current parameters remain within the module’s FM entity limits (Voc \le 28 VDC, Isc \le 93 mA). Ignoring loop capacitance limits will void hazardous area certification.
- Warning: Hot-Plug Carrier Keying Resistance. Do not force the module into a mismatched carrier slot. The physical key code (A1) protects the intrinsically safe bus; forcing an incorrect card can damage backplane interface pins.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Examined under magnification for OEM safety labels, intact tamper-evident seals, and unblemished gold-plated backplane pins.
- Live Test Bench Rack Validation: Mounted on an active PAC8000 intrinsically safe test backplane powered by designated IS power supply modules.
- Signal & HART Handshake Diagnostics: Each of the 8 channels is tested with precision current sources across 4–20 mA spans while verifying HART frequency-shift keying (FSK) communication pass-through and line fault detection thresholds.
- Environmental Packaging: Sealed in anti-static, moisture-barrier shielding bags complete with ESD protection to safeguard delicate analog-to-digital conversion circuits during transit.
Technical FAQ
Can I use the 8201-HI-IS in a Zone 1 hazardous location?
Yes. The module features intrinsic safety ratings ([EEx ia] IIC) designed specifically to interface with field instruments located in hazardous Zone 1 or Division 1 environments.
Does this module support HART communication pass-through?
Yes. The module natively supports HART multi-drop and point-to-point communication, allowing AMS (Asset Management Systems) or configuration tools to communicate directly with smart field transmitters through the railbus.
Do I need external zener barriers or galvanic isolators with this module?
No. The 8201-HI-IS incorporates built-in intrinsically safe isolation circuitry for each channel, removing the need for external marshalled barrier strips when connected to approved field devices.
Is configuration handled via physical switches on the module?
No. There are no physical DIP switches or jumpers. All parameters, including input filtering, alarm deadbands, and line fault detection limits, are configured via software through the network bus controller.
