Foxboro RH916XZ | Termination Assembly for FBM217 Modules
Dynamic Product Introduction
Instrumentation engineers and DCS maintenance technicians managing Foxboro I/O subsystems know how vital reliable signal termination and contact-sensing integrity are for discrete alarm and status monitoring loops. When a termination assembly linked to a 32-channel discrete input FBM suffers terminal block mechanical damage, corroded screw inserts, or trace degradation, replacing the unit with an exact part number match ensures field wiring continuity without requiring a complete cabinet rewire.
The Foxboro RH916XZ is a specialized Termination Assembly engineered to interface directly with the FBM217 (32-Channel 24V DC Contact-Sensing Discrete Input Module). Mounted on standard DIN rail inside the I/O cabinet, the RH916XZ receives field contact signals—with contact wetting provided by the FBM module—and routes them securely to the baseplate via structured Type 4 interconnect cabling, maintaining group isolation and noise immunity.

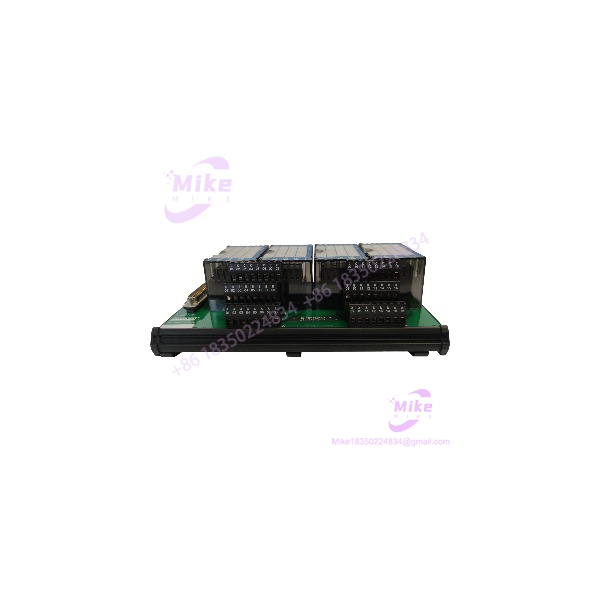

RH916XZ
Key Technical Specifications
- Module Classification: Discrete Input Field Signal Termination Assembly (TA)
- Associated FBM Module Compatibility: Foxboro FBM217 (32-Channel 24V DC Contact-Sensing Input Module)
- Channel Capacity: 32 channels of 24V DC contact-sensing inputs (passive feedthrough design)
- Termination Type: Heavy-duty compression screw terminal blocks (Termination Type C)
- Interconnection Interface: 37-pin D-subminiature socket connecting via Type 4 multi-conductor cables from the FBM baseplate
- Isolation Characteristics: Group-isolated from earth ground; withstands 600V AC applied between isolated channels and earth for 1 minute
- Mounting Configuration: DIN rail mountable (compatible with 32mm and 35mm DIN rails)
- Operating Temperature Range: -20 °C to +70 °C industrial cabinet rating
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing replacement DCS termination assemblies requires strict electrical isolation, loop continuity, and terminal block mechanical verification.
Inbound Verification & Traceability
- Paperwork Audit: Verification of part number tags, manufacturer identification, and manufacturing traceability against Foxboro quality documentation.
- Physical Inspection: Comprehensive examination of polyamide (PA) molding, DIN rail latching clips, terminal block screw threads, and D-sub connector pins for signs of mechanical wear, bending, or corrosion.
Live Bench Simulation & Diagnostics
- Terminal Continuity Check: Using a digital multimeter to verify 1:1 pin-to-terminal continuity from the 37-pin D-sub connector through to each individual field screw terminal across all 32 channels.
- Isolation Resistance Test: Applying a high-voltage insulation test between adjacent terminal blocks and chassis ground to confirm complete group galvanic separation and zero leakage current.
Final Prep
- Terminal Cleansing: Ensuring all screw terminals are clear of wire debris and torqued to baseline position.
- ESD & Protective Packaging: Sealed in anti-static shielding bags with moisture-absorbing desiccant packs before double-boxed shipping.
Electrical Shock and Loop Interruption Warning
Always isolate external loop power supplies and lock out associated field contact devices before working on the RH916XZ termination assembly. Disconnecting terminal blocks or interconnection cables while live 24V DC loops are active can induce transient spikes, trigger false controller alarms, or cause unexpected process interlock trips.
The Field Engineer’s Pitfall Guide
- ❗ Over-Torquing Compression Terminals: When connecting field signal wires to the RH916XZ screw terminals, avoid excessive torque. Over-tightening can strip the brass insert threads or shear fine-stranded copper wires, resulting in intermittent open-circuit faults under cabinet vibration.
- ❗ Mismatched FBM Pairings: Verify that the RH916XZ termination assembly is strictly paired with its intended companion module (FBM217). Using an incompatible TA for analog, high-voltage AC, or pulse modules can result in mismatched pin assignments and potential hardware damage.
- ❗ Cable Pin Alignment & Secure Locking: Ensure the 37-pin D-sub interconnection cable from the FBM baseplate is fully seated and secured with retaining screws. Loose D-sub connections introduce high resistance across contact-sensing return paths, causing erratic discrete state flickering on the operator display.
Intent-Driven FAQ
Will swapping out the RH916XZ termination assembly require software configuration changes?
No. The RH916XZ is a passive field wiring and termination component. Replacing a damaged assembly with an identical unit requires no changes to the Foxboro control configuration or software data base.
What causes a discrete input channel to fail or drop out on this assembly?
Common causes include loose field wiring screw connections, corroded terminal contacts due to moisture ingress, damaged Type 4 interconnection cables between the TA and the FBM baseplate, or internal trace damage from historic overvoltage events.
Can field wires remain connected during an RH916XZ replacement?
Depending on cabinet layout and terminal block design, many Foxboro TAs feature modular or plug-in terminal block structures, allowing you to swap the base module while preserving field wiring—provided all external loop power is fully locked out first.
What is the role of the FBM217 module relative to the RH916XZ?
The FBM217 is the intelligent 32-channel discrete input processor module located on the baseplate, while the RH916XZ is the DIN-rail mounted termination assembly that physically breaks out those contact-sensing lines to field instrumentation wiring terminals.
What warranty coverage is provided on replacement hardware?
All verified Foxboro RH916XZ replacement termination assemblies include a standard 12-month full-replacement warranty covering terminal block integrity, internal board traces, and connector reliability.
