Foxboro P0971WV-DNBT | Dual Nodebus Module Key Spec Data
Architect’s Product Breakdown
The Foxboro P0971WV-DNBT acts as an essential communication bridge within the I/A Series distributed control architecture, managing dual nodebus traffic between control processors and remote subsystem clusters. In continuous process plants, maintaining redundant network pathways prevents single points of failure from causing catastrophic production interruptions. This hardware ensures real-time telegram synchronization across active and standby communication channels.
Deploying the P0971WV-DNBT requires rigorous verification of network termination settings and backplane bus slot compatibility. If an existing cabinet layout relies on legacy bus interface cards, upgrading to this module requires validating that the parent node processor firmware supports dual nodebus configurations. Failing to match these parameters introduces timing jitter and can trigger unexpected network reset loops during high-traffic operational states.

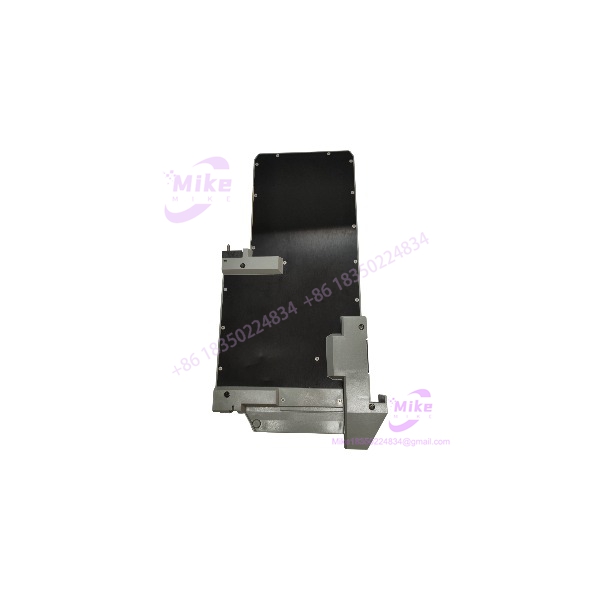

P0971WV-DNBT
Key Technical Specifications
- Manufacturer: Foxboro (Schneider Electric)
- Product Category: Dual Nodebus Module (DNBT)
- Mounting Type: Standard I/A Series Baseplate / Chassis Slot
- Network Architecture: Dual Token Bus (IEEE 802.4 compatible)
- Operating Temperature Range: 0°C to +60°C
- Relative Humidity Limit: 5% to 95% (non-condensing)
- Vibration Tolerance: 1G (5 to 500 Hz)
- Weight: Approximately 1.4 kg
- Diagnostic Indicators: Front-panel LED array for link status, power, and fault tracking
Field Engineer’s Pitfall Guide (Unique Value)
- Ignoring Dual Bus Termination Rules: Failing to verify proper physical termination resistors on both ends of the dual nodebus trunk will cause reflection currents, corrupting data packets across the P0971WV-DNBT channels.
- Hot-Swapping Without Node Isolation: Pulling or inserting this module under power without properly isolating the redundant node pair can cause transient backplane spikes, dropping communication across the entire segment.
- Firmware Mismatch Overlooks: I’ve seen plant commissioning delayed for days because technicians dropped a replacement module into a rack running an obsolete executive software version, causing immediate synchronization faults.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo physical inspections to confirm OEM laser markings, intact security seals, and flawless pin alignment.
- Live Test Bench Environment: Modules are installed on active I/A Series test racks powered by validated supplies to evaluate thermal stability and loop performance.
- Communication & Handshake Testing: Technicians execute rigorous packet-throughput and redundancy-switchover tests to verify zero data loss across both channels.
- Anti-Static Packaging: Post-testing, units are sealed inside heavy-duty anti-static shielding bags with moisture barrier protection for safe logistics handling.
Technical FAQ
Can I hot-swap the P0971WV-DNBT while the process control loop is active?
Only if it is part of a healthy, fully operational redundant pair where the secondary channel is online and synchronized. Never hot-swap a single non-redundant module in a live system.
Does this module require software configuration updates when replaced?
As a physical layer communication interface, it generally inherits configuration from the parent controller, but you must confirm that the node software revision supports the hardware suffix.
What causes intermittent nodebus communication drops after installation?
Intermittent drops are almost universally caused by loose backplane seating, damaged cable shielding, or improper bus termination resistance along the trunk.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed modules typically carry a 12-month operational warranty covering material and manufacturing defects.
