Description
FOXBORO P0916XT | FBM207b 24VDC Contact Sense Assembly
Architect’s Product Breakdown
The FOXBORO P0916XT is a field termination assembly designed for the Compact FBM207b, a 16-channel discrete contact-sense input module in the Foxboro I/A Series control system. Its polyamide construction and compression terminals provide the physical interface between field contact wiring and the control system’s I/O subsystem. The assembly uses 24 VDC contact wetting supplied by the FBM207b; it is not a standalone 24 VDC power supply or an electronic input module.
The P0916XT supports sixteen 2-wire contact-sense input circuits. Typical applications include monitoring dry contacts from limit switches, auxiliary contacts, and other discrete field devices. Confirm the field-device wiring and input logic against the project’s approved drawings before commissioning.
For installation, the termination assembly connects to the appropriate subsystem baseplate through a compatible termination cable. Cable type, length, redundancy arrangement, and certification must match the installed hardware. The P0916XT is identified as a polyamide version, rated for an ambient temperature range of -20°C to +70°C (-4°F to +158°F).

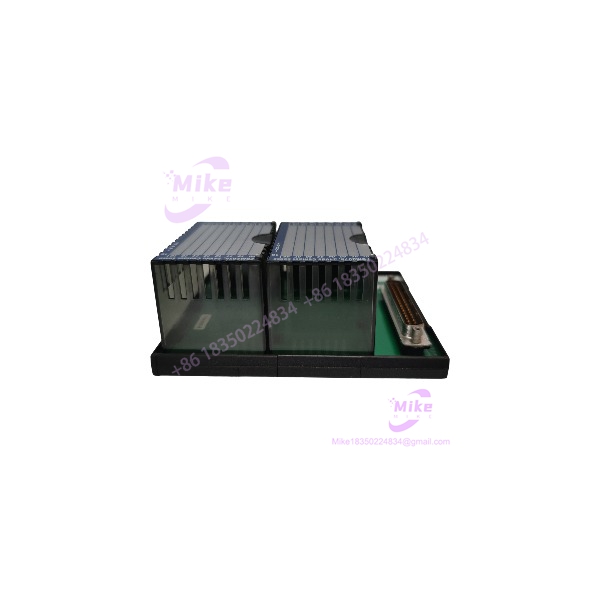

P0916XT
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model number | P0916XT |
| Manufacturer | FOXBORO |
| Product family | I/A Series DCS |
| Compatible I/O module | Compact FBM207b |
| Hardware category | Field termination assembly |
| Input type | Discrete contact-sense input |
| Number of channels | 16 |
| Contact wetting voltage | 24 VDC, supplied by the FBM207b |
| Terminal style | Compression terminals |
| Housing material | Polyamide (PA) |
| Temperature rating | -20°C to +70°C (-4°F to +158°F) |
| Termination cable type | Type 4 |
| Certification classification | Types 1 and 2, subject to the documented installation conditions |
| Firmware | No independent firmware |
| Calibration | No routine calibration for the passive termination assembly |
The certification classification does not automatically establish suitability for every hazardous-area installation. Verify the complete field circuit, associated FBM, and applicable site requirements before use.
Field Engineer’s Pitfall Guide
Pitfall 1 — Confusing P0916XT with a ring-lug version. The P0916XT uses compression terminals. Related FBM207b termination assemblies include P0916JS and P0916PP, but related part numbers should not be treated as interchangeable without confirming terminal construction, material, and wiring requirements.
Pitfall 2 — Applying an external voltage to the contact-wetting circuit. The documented configuration uses 24 VDC contact wetting supplied by the FBM207b. Do not introduce an external source based solely on a generic field-wiring assumption; verify the circuit design and terminal assignments first.
Pitfall 3 — Ignoring cable and redundancy requirements. The termination assembly connects to the subsystem through a specified cable. If the FBM207b operates as a redundant pair, the documented redundant adapter arrangement must also be considered. A physically fitting connector is not sufficient evidence of electrical compatibility.
Field scenario: During a control-system maintenance window, a technician replaces a damaged termination assembly but reuses an unverified cable from another I/O installation. The replacement appears mechanically correct, yet several contact inputs fail to register. A pre-installation check of the module type, termination cable, and wiring diagram would help prevent unnecessary troubleshooting during startup.
QA & Testing SOP
- Visual inspection: Verify the P0916XT nameplate, polyamide housing, compression terminals, connector, and mounting features. Check for cracks, corrosion, contamination, and heat damage.
- Documentation check: Record the full part number and available revision or date-code information. Confirm supplier provenance and whether the unit is new, surplus, refurbished, or used.
- Compatibility check: Verify Compact FBM207b compatibility, termination cable type, baseplate connection, and redundant adapter requirements where applicable.
- Terminal inspection: Check for loose screws, damaged clamps, conductor strands outside terminals, and wiring that falls outside the approved terminal specifications.
- Functional testing: Under an approved maintenance procedure, verify representative field-contact transitions and confirm that the corresponding FBM207b input states register correctly in the control system.
- Final records and packaging: Document inspection results and any functional tests. Use appropriate ESD precautions for nearby electronic modules, and protect the assembly against moisture, vibration, and terminal damage during shipment.
Technical FAQ
Q1: What is the primary application of FOXBORO P0916XT?
It provides field termination for sixteen 24 VDC contact-sense input circuits associated with the Compact FBM207b.
Q2: Is P0916XT an electronic I/O module?
No. It is a field termination assembly. The FBM207b performs the electronic input-processing function.
Q3: Can P0916XT be used with an FBM207c?
Do not assume compatibility. The FBM207c uses a different 48 VDC contact-sense configuration and has its own documented termination assemblies. Confirm the correct part number before installation.
Q4: Does P0916XT require firmware configuration?
The termination assembly itself has no independent firmware. The associated I/O module and control-system configuration should be checked as part of commissioning or replacement testing.
Q5: What should be verified before purchasing P0916XT?
Confirm the exact part number, polyamide construction, compression-terminal arrangement, FBM207b compatibility, required cable, certification requirements, and inventory condition. For used equipment, request clear label photographs and available inspection or functional-test records.
Procurement recommendation: Specify FOXBORO P0916XT by its complete model number and identify it as the polyamide compression-terminal assembly for the Compact FBM207b. Confirm cable and certification requirements against the installed system before approving a replacement.
