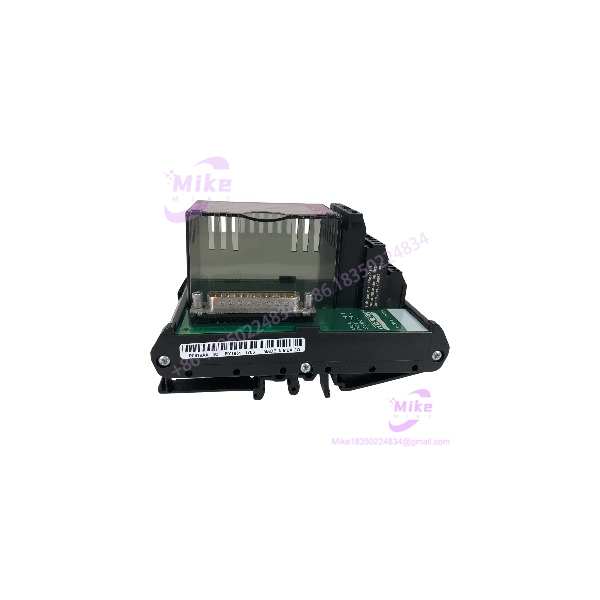

The FOXBORO P0916AA is a field terminal assembly (FTA) used with the Foxboro I/A Series FBM201 analog input module. It provides the physical interface between field instrument wiring and the distributed control system’s I/O subsystem. The assembly uses compression-style terminals and a separate termination cable to connect the field wiring to the FBM baseplate. It is a passive termination component, not an active controller or signal-processing module.

In a typical installation, the FBM201 handles eight analog input channels with a 0–20 mA DC input range, while the P0916AA organizes and routes the field connections to the module. This distinction matters during fault isolation. A bad transmitter, an open field wire, a loose terminal, a defective termination cable, and a failed FBM201 can produce similar symptoms at the operator station. Replacing the terminal assembly without checking the entire signal path may not resolve the fault.

There is also a lifecycle consideration. The P0916AA has been superseded by RH916XG in the manufacturer’s termination-assembly documentation for the corresponding FBM201 application. Do not assume that the successor is a drop-in replacement in every existing cabinet: verify the terminal type, cable compatibility, certifications, mounting arrangement, and approved wiring configuration before approving a migration. For an installed legacy system, retaining the original assembly may be the lower-risk option when a verified replacement is available.

P0916AA

Key Technical Specifications

Specification note: The eight-channel count and 0–20 mA range refer to the associated FBM201 application, not to an active electronic module inside the P0916AA assembly. The documented temperature range applies to the specified polyamide termination assembly; confirm the exact version and certification requirements before installation.

Field Engineer’s Pitfall Guide

Warning 1 — Do not mistake the terminal assembly for the FBM201 module.

The P0916AA provides field wiring termination; the FBM201 performs the analog input function. If a channel reads zero or reports a bad input, check the field loop, wiring, termination contacts, cable, and FBM diagnostics before condemning either component.

Warning 2 — Verify the replacement assembly and cable together.

The termination assembly and its connecting cable form part of the physical signal path. Check connector compatibility, cable type, terminal arrangement, and the applicable wiring drawing. A terminal block that fits the DIN rail does not automatically establish compatibility with the existing FBM baseplate.

Warning 3 — Check lifecycle and certification requirements.

The P0916AA has a documented successor designation, RH916XG. Before substituting the newer assembly, verify the required hazardous-area certification, terminal configuration, and material rating. The successor designation alone is not sufficient authorization for a change in a classified installation.

Field scenario: During a shutdown, a maintenance team replaces an aging termination assembly but reuses a cable whose compatibility has not been checked. The physical installation appears complete, yet several input channels remain unavailable. Verifying the assembly and cable combination against the wiring documentation before the shutdown would have reduced the troubleshooting time.

QA & Testing SOP — Transparency

A suitable inspection and acceptance process for the FOXBORO P0916AA should include the following checks.

1. Visual and origin inspection

• Verify the P0916AA nameplate or part marking.
• Inspect the housing, compression terminals, connector, and mounting features.
• Record available lot or serial information and review supplier traceability documentation.

2. Mechanical inspection

• Confirm the terminal arrangement and connector configuration against the installed assembly.
• Check for damaged screw terminals, cracked insulation, corrosion, or loose mounting hardware.
• Verify the required termination cable is present and compatible.

3. Electrical checks

• Perform appropriate continuity and short-circuit checks with the assembly isolated from the operating system.
• Confirm terminal assignments against the approved wiring drawings.
• Avoid applying test voltages or insulation-test voltages that could damage connected electronics.

4. System compatibility and commissioning

• Verify compatibility with the installed FBM201 and its baseplate.
• Check field loop polarity, terminal assignments, and cable connections before returning the circuit to service.
• Confirm that the associated analog input channels report plausible values using an approved loop-check procedure.

5. Documentation and packaging

• Record the inspection results and any limitations.
• Distinguish visual inspection from functional testing; do not claim a live DCS test unless one was performed.
• Protect terminals and connectors during transport and use appropriate ESD precautions where required by the connected equipment.

Technical FAQ

Q1. Is the FOXBORO P0916AA an analog input module?

No. It is a field terminal assembly used with the FBM201 analog input module. The FBM201 provides the eight-channel analog input function; the P0916AA provides the field wiring termination interface.

Q2. Can I replace P0916AA with RH916XG?

RH916XG is identified as the successor to P0916AA for the corresponding FBM201 termination-assembly application. Verify the complete assembly configuration, cable type, terminal arrangement, and required certifications before substitution.
