Emerson Ovation 5X00062G01 | 8-Channel HART Analog Output Electronics Module
Product Introduction
The 5X00062G01 is an 8-channel HART Analog Output (HAO) Electronics Module (E-MOD) engineered for the Emerson (Westinghouse) Ovation Distributed Control System (DCS). It acts as the primary microprocessing core that drives field actuators, control valves, positioners, and variable speed drives across power generation, water treatment, and heavy industrial process plants.
Operating in tandem with its corresponding 5X00063G01 Personality Module (P-MOD), the 5X00062G01 delivers precise 4–20 mA current loops while simultaneously passing bi-directional HART digital signals. This allows plant operators to continuously monitor field device diagnostics, calibration data, and secondary process variables without interrupting primary 4–20 mA control loops. Replacing an aging or damaged 5X00062G01 card with a bench-tested, genuine unit resolves analog drift, output freeze conditions, and HART handshake failures in critical process control loops.

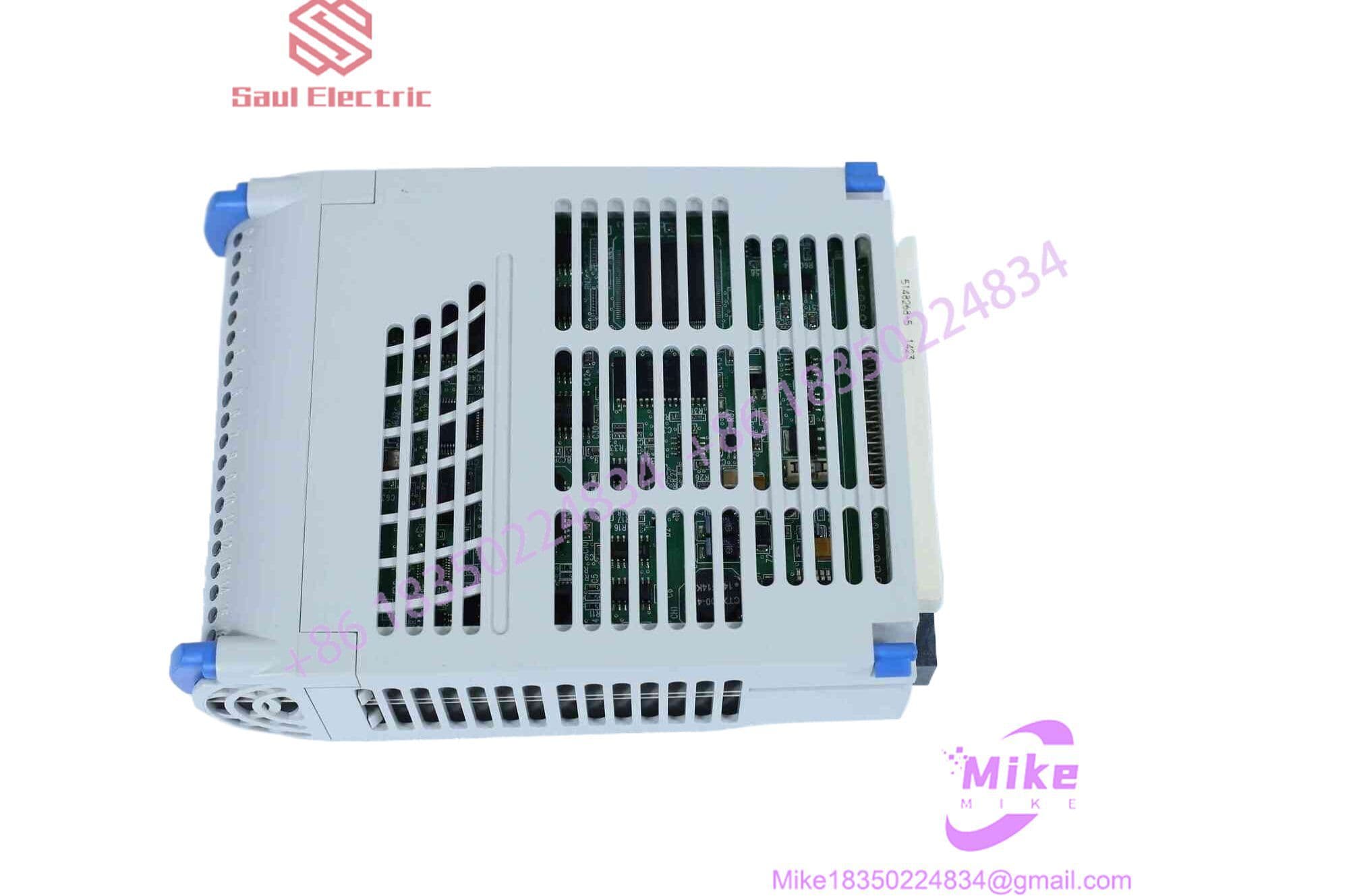

5X00062G01
Key Technical Specifications
| Parameter | Technical Specification |
| Manufacturer | Emerson Process Management / Westinghouse |
| Part Code | 5X00062G01 |
| System Compatibility | Emerson Ovation DCS |
| Module Type | HART Analog Output Electronics Module (E-MOD) |
| Number of Channels | 8 Multiplexed Output Channels |
| Output Current Range | 4 to 20 mA (Analog) + HART Digital Superimposed |
| D/A Resolution | 14 Bits |
| Channel Update Rate | 24 ms (All 8 channels refreshed every 24 ms) |
| Accuracy | ±0.25% of Full Span over temperature range |
| Dielectric Isolation | 1000 VDC / VAC (Channel to Logic for 1 minute) |
| Auxiliary Loop Power | +24 VDC external loop supply (fused via P-MOD) |
Application Scenarios & Pain Points
Field Experience: A combined-cycle power plant experienced intermittent control valve hunting on its main feedwater bypass line. Diagnostics revealed thermal drift on an aging analog output card, causing the 4–20 mA loop signal to jitter outside tolerance limits. Replacing the degraded card with a bench-tested 5X00062G01 electronics module stabilized the current output loop and cleared the HART positioner communication errors instantly.
- With Genuine 5X00062G01: Ultra-stable 14-bit D/A conversion, reliable 24 ms loop update cycles, full pass-through of HART diagnostic parameters, and robust 1000V isolation against field electrical noise.
- Without (Failing or Uncalibrated Module): Output current locking/freezing, loss of HART field device polling, calibration drift causing valve position errors, and system bus diagnostic faults.
- Power Generation Facilities: Controls critical modulating valves, damper drives, and turbine positioners running under Ovation DCS logic.
- Water & Wastewater Infrastructure: Drives variable frequency drives (VFDs) and chemical dosing pumps with integrated HART diagnostic feedback loops.
QA & Live Testing SOP (Trust Signal)
Every 5X00062G01 module pulled from our inventory undergoes a multi-point quality assurance procedure prior to shipment:
- Visual & Board-Level Inspection: We examine the PCB traces, backplane gold-finger connectors, surface-mount components, and housing guides for physical damage, cracking, or thermal stress marks.
- 24V Loop Power & Logic Test: The card is mounted onto an Ovation base unit, powered via isolated 24 VDC auxiliary loop supplies, and verified for correct logic power boot-up.
- 8-Channel Precision Current Loop Audit: Each of the 8 output channels is tested across 4 mA, 12 mA, and 20 mA command points using calibrated precision ammeters to confirm D/A accuracy within ±0.25% span limits.
- HART Communications Verification: Bi-directional HART data packets are injected across all 8 channels to verify transparent signal passthrough to intelligent field positioners.
- Anti-Static & ESD Protective Packaging: Verified units are cleaned with anti-static solution, enclosed in ESD protective shielding, and packed into custom foam-lined shipping boxes.
Field Engineer’s Pitfall Guide
- ❗ Verify E-MOD vs. P-MOD Configuration: The 5X00062G01 is the Electronics Module containing the microprocessor and D/A circuitry. It must be paired with the 5X00063G01 Personality Module, which houses the field wiring terminals, passive filter circuits, and channel fuses.
- ❗ Check Auxiliary 24V Field Loop Fuse: If all 8 channels drop current simultaneously, inspect the auxiliary power supply fuse located on the mating 5X00063G01 personality card before assuming the 5X00062G01 electronics board has failed.
- ❗ Hot-Swapping Precautions: While Ovation I/O modules support hot-swapping under powered conditions, always ensure the module latching mechanism is fully disengaged before pulling the card to prevent arc-over or backplane communication glitches.
Intent-Driven FAQ
Q: What is the main function of the Emerson Ovation 5X00062G01 module?
A: It is an 8-channel analog output electronics module that converts DCS digital control signals into 4–20 mA current loops while supporting digital HART protocol communication to field actuators and positioners.
Q: What is the difference between part numbers 5X00062G01 and 5X00063G01?
A: The 5X00062G01 is the active Electronics Module (E-MOD) containing the processing components, whereas the 5X00063G01 is the passive Personality Module (P-MOD) that handles field wiring terminal connections and channel fusing.
Q: How often does the 5X00062G01 update its output channels?
A: The onboard microcontroller updates all 8 channels every 24 milliseconds with 14-bit D/A resolution.
Q: Does this module require an external power supply?
A: Yes. Power for the field-side 4–20 mA loop current is supplied via an external +24 VDC auxiliary power supply routed through the personality module.
Q: What condition are these units supplied in, and what warranty is included?
A: We provide fully bench-tested New Surplus and reconditioned original Emerson/Westinghouse units. Every 5X00062G01 module includes a 1-year functional replacement warranty and full QA bench clearance.
