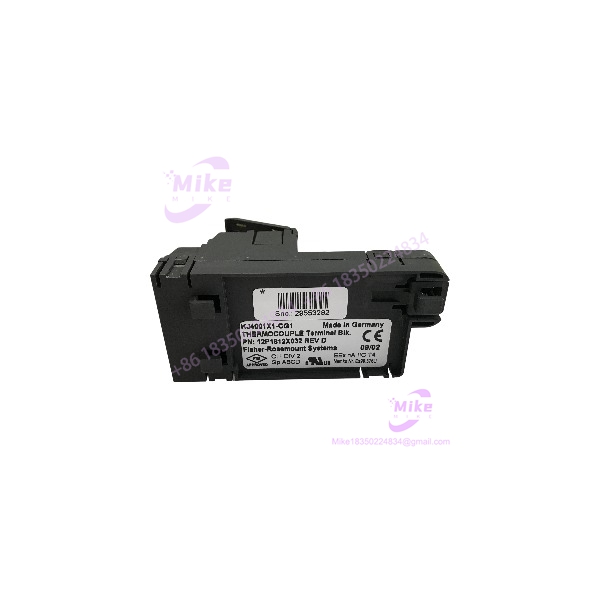

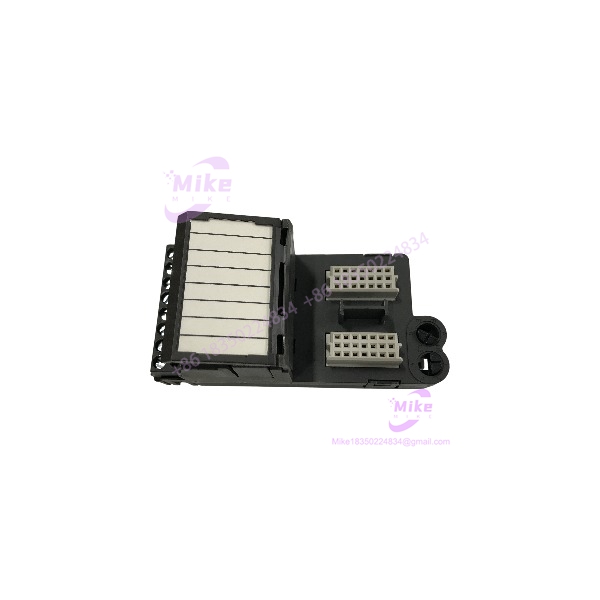

Emerson KJ4001X1-CG1 | DeltaV Thermocouple Terminal Block
Product Introduction
Temperature-input troubleshooting often starts at the sensor, but the terminal block and its mating I/O card are also part of the measurement path. A replacement terminal block must match the original DeltaV configuration; a similar-looking unit is not enough to establish compatibility.
The Emerson KJ4001X1-CG1 is identified by multiple supplier catalogs as a thermocouple terminal block for DeltaV M-Series I/O. Supplier records commonly associate it with part number 12P1812X042. Published listings also report a 30 VDC, 1 A input rating and a −40°C to +70°C operating range, but these ratings should be confirmed against the applicable OEM documentation and the actual unit label before commissioning.
For a maintenance or procurement team, the key is to preserve the original temperature-input arrangement. Confirm the mating I/O card, terminal assignments, wiring, and terminal-block revision before transferring field connections.
KJ4001X1-CG1
Key Technical Specifications
- Manufacturer: Emerson
- Model: KJ4001X1-CG1
- Product Family: DeltaV M-Series Traditional I/O
- Component Type: Thermocouple terminal block
- Common Supplier Cross-Reference: 12P1812X042
- Reported Input Power Rating: 30 VDC at 1 A
- Reported Ambient Temperature: −40°C to +70°C
- Reported Shock Resistance: 10 g, half-sine wave, 11 ms
- Reported Vibration Resistance: 1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz
- Reported Relative Humidity: 5–95%, non-condensing
- Reported Airborne Contaminant Classification: ISA-S71.04-1985, Class G3
- Application: Thermocouple signal termination in a compatible DeltaV temperature-input configuration
Specification note: These ratings are reported in supplier listings. I could not independently verify a CG1-specific Emerson instruction sheet for all listed values. Treat them as provisional until confirmed against the applicable OEM documentation and the actual nameplate. Supplier cross-references for the 12P1812X0xx family are not consistent, so do not assume suffix variants are interchangeable.
Global Sourcing & Live-Test SOP
For a used or surplus KJ4001X1-CG1, prioritize exact identification, terminal integrity, and compatibility with the installed DeltaV temperature-input hardware. A visual inspection cannot establish measurement-channel performance.
1. Inbound Verification
- Photograph the complete OEM label and all visible part numbers.
- Confirm the exact model: KJ4001X1-CG1.
- Record the serial number, revision, and manufacturing information where available.
- Compare any 12P1812X0xx cross-reference with the physical label.
- Inspect the terminal housing, connectors, keying features, and mounting points.
- Check for corrosion, contamination, cracked insulation, heat discoloration, or evidence of previous repair.
- Confirm whether the item is supplied alone or with associated hardware.
- Retain supplier condition statements and traceability documents where available.
2. Mechanical and Electrical Inspection
- Inspect terminal positions and clamping mechanisms for damage.
- Check mating contacts for bent pins, corrosion, or contamination.
- Verify terminal assignments against the original wiring diagram.
- Confirm the intended thermocouple input card and terminal-block combination.
- Check that the connected sensor type and field wiring match the application.
- Do not infer pin assignments or sensor compatibility from a third-party photograph.
3. Controlled Functional Verification
A terminal block is not a standalone temperature input card. Functional testing requires a compatible DeltaV I/O arrangement.
- Confirm the test carrier and mating I/O card.
- Verify field wiring and terminal assignments before energizing.
- Inspect for shorts, opens, or damaged connections using an appropriate isolated test method.
- Where a compatible test setup is available, apply a known thermocouple simulator or suitable signal source through the complete input path.
- Check the resulting channel values and diagnostics using the appropriate DeltaV tools.
- Record the test setup, associated card, and measured results.
4. Extended Test and Documentation
Where supported by the test facility, conduct a representative operating test with the intended I/O hardware.
Monitor:
- Channel stability
- Terminal and connector integrity
- Unexpected signal fluctuations
- Input diagnostics
- Intermittent connection faults
- Abnormal heating or physical changes
Record the test duration, terminal-block model/revision, mating card, test equipment, and observed results. Do not describe the terminal block as fully tested based solely on visual inspection or continuity checks.
5. Final Preparation and Shipment
- Photograph the terminal block before packaging.
- Record the exact model and available revision information.
- Protect terminals and mating interfaces against impact and contamination.
- Use ESD-safe packaging when handling it with electronic assemblies.
- Clearly identify included accessories and associated hardware.
- State actual condition and test status.
- Do not claim factory-sealed condition or an OEM-backed warranty without supporting evidence.
Field Engineer’s Pitfall Guide
❗ Do not substitute by the KJ4001X1 prefix alone
DeltaV terminal blocks with similar prefixes can serve different signal types and I/O arrangements. Confirm the complete KJ4001X1-CG1 designation and the mating card before installation.
❗ Verify the 12P1812X0xx cross-reference
Supplier catalogs commonly associate the CG1 with 12P1812X042, while other listings reference 12P1812X022. These are supplier-reported cross-references—not proof of revision equivalence. Use the physical label and applicable OEM documentation to resolve any discrepancy.
❗ Do not treat a terminal-block test as a complete temperature-loop test
A terminal block can pass a physical inspection while the complete measurement loop still has wiring, sensor, card, or configuration problems. Validate the assembled input path using the correct DeltaV card and a suitable thermocouple simulator before returning the loop to service.
Intent-Driven FAQ
What is the Emerson ?
The is identified by supplier catalogs as an Emerson DeltaV M-Series thermocouple terminal block. It provides field termination for a compatible temperature-input arrangement.
Is the a thermocouple input card?
No. It is a terminal block, not a signal-processing I/O card. The associated DeltaV temperature-input hardware must be verified separately.
What spare part number is associatthe ?
Supplier listings commonly associate it with 12P1812X042, while some records show 12P1812X022. Verify the exact number on the unit’s label rather than assuming the cross-references are interchangeable.
What is the reported input power rating?
Supplier listings report 30 VDC at 1 A. Because I could not independently verify this rating in a CG1-specific Emerson instruction sheet, confirm it against the applicable OEM documentation before use.
the be hot-swapped?
Do not assume energized replacement is permitted. Confirm the applicable DeltaV installation instructions and site isolation requirements before removing or installing the terminal block.
the suitable for every DeltaV temperature-input card?
No. Compatibility depends on the specific I/O card, terminal-block configuration, and system generation. Confirm the original assembly and applicable DeltaV hardware documentation before ordering.
What should be checked before buying a ent ?
Confirm the complete model number, label and revision, associated I/O card, terminal assignments, physical condition, supplier test evidence, and any 12P1812X0xx cross-reference. For a production system, verify compatibility against the installed DeltaV drawings before commissioning.
Bottom Line for Buyers
The is a DeltaV M-Series thermocouple terminal block used in temperature-input field wiring. Supplier records commonly associate it with 12P1812X042, but the cross-reference and reported ratings should be verified against the actual unit and applicable OEM documentation.
For replacement procurement, prioritize exact model identification, terminal integrity, mating-card compatibility, and documented test scope. Do not approve a substitute based solely on a matching prefix or a generic DeltaV compatibility claim.
