Emerson 5X00497G01 | Ovation 4 Slot IO Base Unit In Stock

Description

Emerson 5X00497G01 | Ovation 4 Slot IO Base Unit In Stock

Architect’s Product Breakdown

The Emerson 5X00497G01 is the fundamental 4-slot structural and electrical substrate unit for Ovation Distributed Control System (DCS) I/O sub-racks. Rather than acting as an active processing node, this base module supplies the passive backplane bus pathways, power routing tracks, and field terminal interface points required to seat four standard Ovation I/O electronics cards (such as Analog Input, Digital Output, HART, or RTD units).

During DCS system expansion or panel retrofits, the 5X00497G01 allows engineers to daisy-chain local I/O nodes cleanly along a standard DIN-rail assembly. Its robust internal traces pass primary 24VDC logic power and local controller communication lines sequentially down the rack. Built-in physical keying structures safeguard against improper electronics installation, while the physical backplane connectors are tailored to allow live hot-swapping of individual I/O modules without interrupting power to adjacent slots on the same base.

In high-duty cycle applications like power plant turbine monitoring or combined-cycle loop control, cabinet mechanical integrity is vital. The 5X00497G01 features flame-retardant molded plastic housing with integrated grounding plane connections, neutralizing static buildup and localized noise coupling before field interference can reach delicate Analog-to-Digital converters seated in the slots.

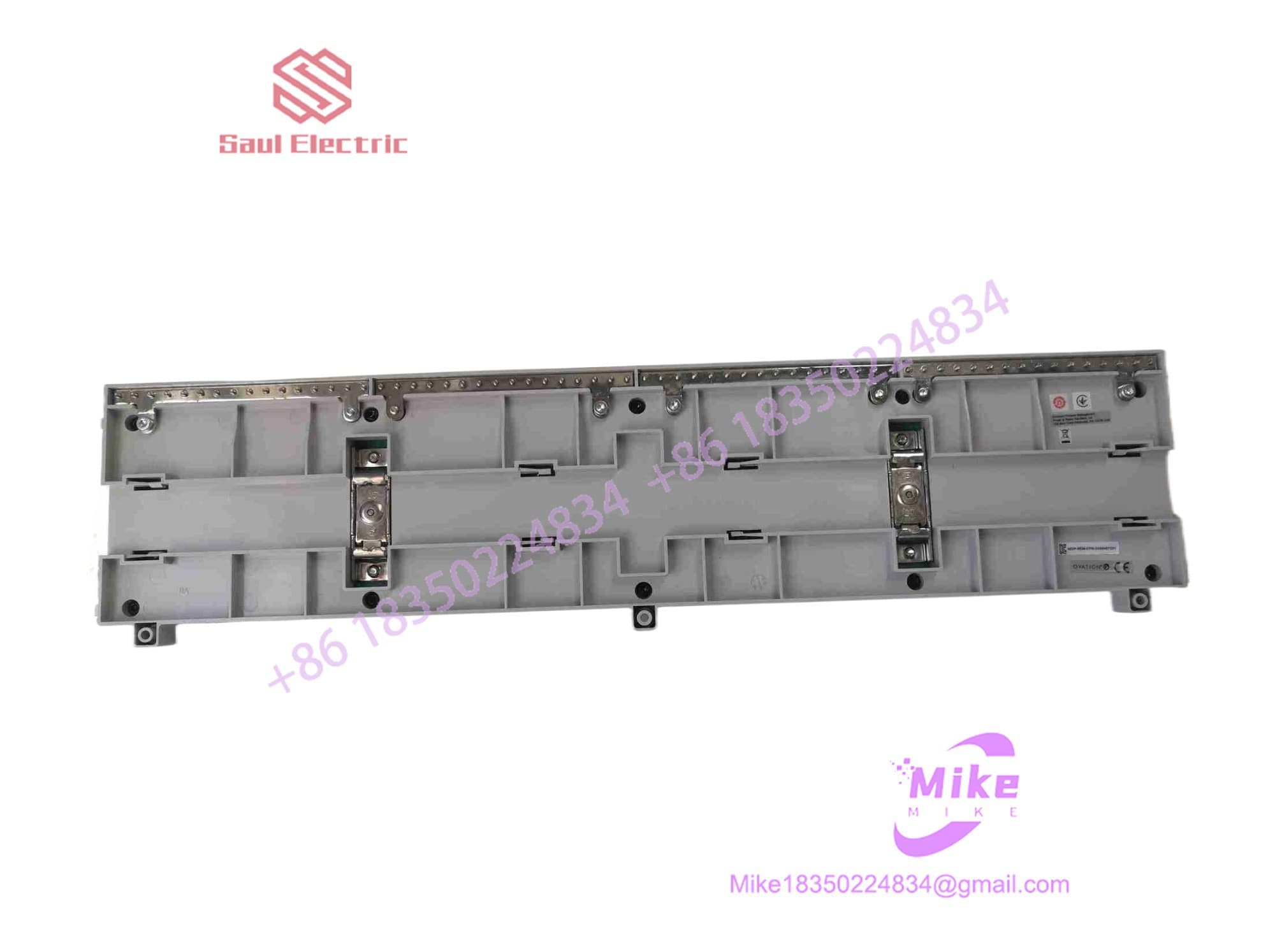

5X00497G01

4. Key Technical Specifications

Field Engineer’s Pitfall Guide (Unique Value)

• BACKPLANE CONNECTOR PIN COLLAPSE: Never drop an I/O card into the 5X00497G01 slot at an angle. The multi-pin receptacle array inside each of the four base slots is designed for strict perpendicular insertion. I’ve been called to plants where technicians forced an analog input card into slot 2 with uneven pressure, bending three pins on the 5X00497G01 backplane. That single bent pin grounded out the 24V internal bus and knocked out all 4 slots on the branch.
• MISSING OR DAMAGED BUS EXTENSION CONNECTORS: Always inspect the side-edge DIN bus ribbon/pin connections before snapping adjacent bases together. When expanding a rack, the side-interconnect pins pass the local I/O bus signals to the next 5X00497G01 unit. If the protective end covers are left off or pins get warped during rail installation, communication to downstream base units will intermittently drop, generating cryptic “I/O Node Timeout” faults in Ovation Developer Studio.
• OVERTIGHTENING TERMINAL BASE MOUNTING SCREWS: Do not over-torque the base assembly securing hardware. The polycarbonate body of the 5X00497G01 can hairline-crack near the rail clips under excessive mechanical shear. Once cracked, subtle thermal expansion during plant load shifts can shift card positioning just enough to break contact with the backplane traces.

QA & Testing SOP (Transparency)

1. Visual & Structural Inspection: Detailed check under 10x magnification for cracked mounting tabs, damaged DIN rail retention springs, and bent backplane pin arrays across all 4 module slots.
2. Trace Continuity & Isolation Testing: Multimeter and megohmmeter validation to ensure 0-ohm continuity on bus lines and complete galvanic separation across isolated ground points.
3. Live Bench Rack Testing: Base unit mounted into an active Ovation testing rack. Loaded with four live test I/O cards (Digital Input and Analog Input) to verify real-time data flow to the controller.
4. Hot-Swap Stress Validation: Cycling I/O modules in and out of all 4 slots under live power to confirm continuous power delivery to adjacent slots with zero transient voltage drops.
5. ESD Cleaning & Packaging: Cleaned with isopropyl alcohol on non-conductive contacts, sealed in anti-static moisture barrier bags, and boxed with custom foam lining.

Technical FAQ

Can I replace a single slot on the 5X00497G01 if one pin breaks?

No. The 5X00497G01 is manufactured as a single molded 4-slot substrate assembly. Individual slots cannot be detached or repaired independently. If an internal backplane connector pin is damaged beyond alignment, the entire 4-slot base unit must be replaced.

Does the 5X00497G01 require firmware updates or software setup?

No. The 5X00497G01 is a passive structural backplane module. It contains no onboard processor, flash memory, or configurable logic. Hardware setup involves matching physical jumper settings (if applicable) and snapping it onto the DIN rail assembly.

Is the 5X00497G01 hot-swappable while the rest of the rack is energized?

The individual I/O electronics modules inserted into the 5X00497G01 are hot-swappable, but removing the 5X00497G01 base unit itself requires powering down the rack. Because power and communication daisy-chain through the base unit, pulling the 5X00497G01 physically breaks the circuit for all downstream units on that DIN rail.

What is the maximum number of 5X00497G01 bases I can connect on a single IO branch?

The maximum number of connected bases depends on the overall current draw of the installed I/O electronics cards and the limits of the branch controller card. Typically, Ovation limits an I/O branch to 8 or 16 bases (32 to 64 I/O modules total), provided the total 24VDC current draw does not exceed the line rating of your power distribution module.

How do I know if my fault is with the 5X00497G01 base or the plugged-in IO module?

Move the suspected I/O module to a known-good slot on a different 5X00497G01 base. If the fault follows the module, the electronics card is failing. If the fault stays at the specific slot on the 5X00497G01 despite trying multiple working I/O cards, the base unit’s connector pins or internal traces are damaged.
