Emerson 5X00121G01 | OEM Ovation Controller I/O Card Tested
Architect’s Product Breakdown
The Emerson Ovation 5X00121G01 is an 8-channel RTD input module engineered specifically for high-accuracy temperature acquisition across critical plant assets. Installed on a standard Ovation DIN-rail base assembly, it acts as the primary signal conditioner for Platinum (Pt100), Copper (Cu10), and Nickel RTD sensors attached to turbine bearings, generator stators, heat exchangers, and boiler feed pumps.
Rather than relying on external transmitters to convert millivolt-level resistance changes into 4–20 mA loops, the 5X00121G01 processes resistance values directly at the I/O sub-rack level. Its high-resolution analog-to-digital converter compensates dynamically for field lead-wire resistance in 3-wire and 4-wire RTD configurations. On-card filtering squelches high-frequency electrical noise and 50/60 Hz line pickup, preventing signal bounce in high-EMI environments like power generation halls or large compressor decks.
In field retrofits and emergency drop maintenance, matching the exact 5X00121G01 assembly revision is essential to prevent channel calibration drift and software database mismatch errors. When properly paired with its corresponding personality module and base assembly, this module feeds real-time digitized temperature trends directly into the Ovation Controller logic bus without adding scan cycle latencies.

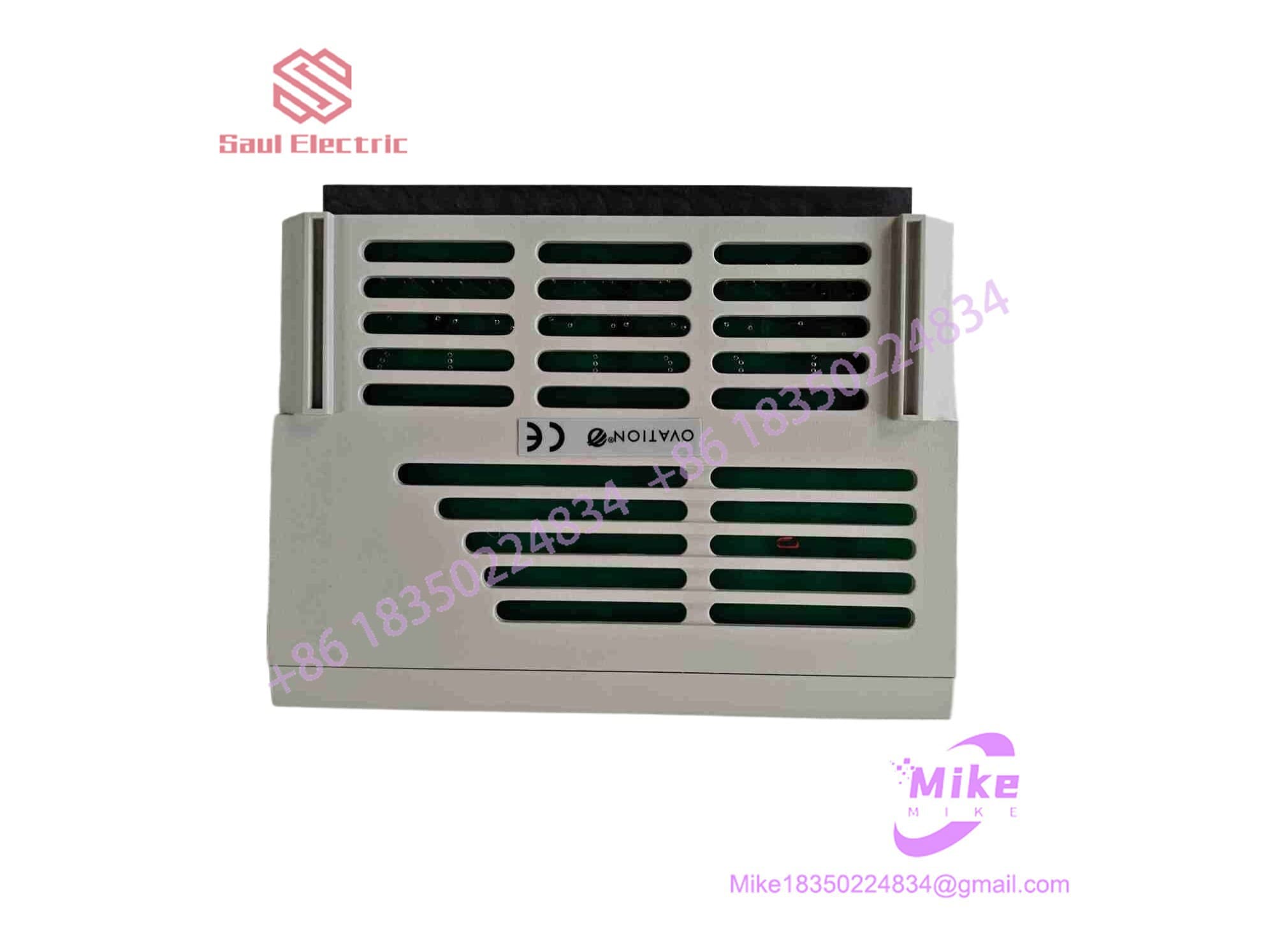

5X00121G01
Key Technical Specifications
| Parameter | Specification / Value |
| Number of Channels | 8 isolated RTD input channels |
| Supported Sensor Types | Pt100 (100 Ω Platinum), Cu10 (10 Ω Copper), Ni120, custom resistance ranges |
| Wiring Configurations | 2-wire, 3-wire, or 4-wire RTD support |
| A/D Resolution | 16-bit analog-to-digital conversion |
| Accuracy | ±0.1% of full scale (sensor dependent) |
| Isolation Rating | 1500 VAC channel-to-logic backplane |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Backplane Power Supply | 24 VDC nominal (supplied via Ovation backplane) |
| Power Dissipation | ~2.5 Watts maximum |
Field Engineer’s Pitfall Guide
WARNING: Uncompensated Lead Wire Resistance
When running long field cable lengths (over 100 feet) to Pt100 sensors, using a 2-wire setup will introduce significant temperature offset errors—often up to 3°C to 5°C high due to wire resistance alone. Always wire the 5X00121G01 for 3-wire or 4-wire operation on critical bearing or stator temperature loops, and verify that lead-wire compensation jumpers/switches on the base assembly match your field wiring scheme.
WARNING: Mixing Sensor Types on a Single Module
I’ve seen I&C techs spend two full shifts chasing ghost alarms because they landed a Cu10 RTD on a channel configured for Pt100 in Ovation Developer Studio. While the 5X00121G01 hardware can physically read resistance across all 8 channels, the mathematical linearization curve is defined per channel in the Ovation point database. If you swap sensor types in the field, you must update the point configuration in Developer Studio and download the updated database to the controller drop—otherwise, the system will calculate nonsensical temperature values.
WARNING: High-Frequency Noise on Unshielded Signal Lines
RTD millivolt signals are extremely sensitive to induced noise from nearby variable frequency drives (VFDs) and high-voltage motor feeds. Always run RTD field cabling in individually shielded twisted-pair cables, and ground the overall shield only at the Ovation cabinet side terminal block. Double-grounding field shields creates ground loops that destroy the module’s A/D resolution.
QA & Testing SOP
Every 5X00121G01 RTD module goes through a rigorous 4-stage validation procedure prior to shipment:
- Physical & PCB Inspection: Inspection under optical magnification to check backplane pin alignment, solder joint integrity, conformal coating coverage, and OEM serial tags.
- Backplane & Power-Up Diagnostic: Inserted into an active Ovation chassis. Logic rails, internal reference voltages, and controller-to-module bus communications are verified.
- 8-Channel Calibration Audit: A decade resistance box feeds precise resistance values corresponding to -50°C, 0°C, 100°C, and 400°C across all 8 channels in 3-wire and 4-wire modes. Readings are verified against strict factory A/D tolerance tables.
- Thermal Soak & ESD Protection: Tested under continuous thermal load to check for component drift, wiped down, and sealed in anti-static static-shielding bags with pin protectors.
Technical FAQ
Can I hot-swap the 5X00121G01 module while the Ovation Controller is running?
Yes. Ovation I/O modules support live hot-swapping. However, pulling the module instantly sets all 8 associated temperature points to “BAD” quality status, which can trip high-temperature software interlocks or forced shutdowns. Always place associated control loops or alarm interlocks in manual/bypass mode before removing the module.
What happens if an RTD wire breaks or goes open-circuit in the field?
The 5X00121G01 features automatic open-circuit and short-circuit detection. If a sensor wire breaks, the channel’s digitized output goes off-scale high (or low, depending on database configuration), and the Ovation system flags the point with a Sensor Break Fault / BAD Quality alarm.
Does the 5X00121G01 require external power supply modules to read RTDs?
No. The module receives its operating logic power directly from the 24 VDC Ovation backplane. The tiny excitation current needed to measure RTD resistance is generated internally by the card’s precision current sources.
Can I connect thermocouples directly to the 5X00121G01?
No. Thermocouples generate a millivolt DC signal based on the Seebeck effect and require cold-junction compensation (CJC). The 5X00121G01 is designed strictly for resistance-based sensors (RTDs). Thermocouples require a dedicated Ovation Thermocouple Input Module.
