XV-112-DB-70TWRC-00 EATON Touch Screen
EATON XV-112-DB-70TWRC-00 is a 7-inch human-machine interface (HMI) touch screen in the EATON XV-100 series, used for process monitoring and operation in industrial automation sites.
In terms of core parameters, the display screen size is 7 inches, the resolution is 800 x 480, it adopts resistive touch mode, and the operating system is Windows CE. The communication interface supports RS-232, RS-485, and Ethernet. The power supply is 24V DC, with a power consumption of about 20W. The working temperature range is 0 ° C to+55 ° C, and the protection level is IP65. It is installed on a panel. The physical dimensions are 192 x 128 x 40 mm and the weight is approximately 1 kg.

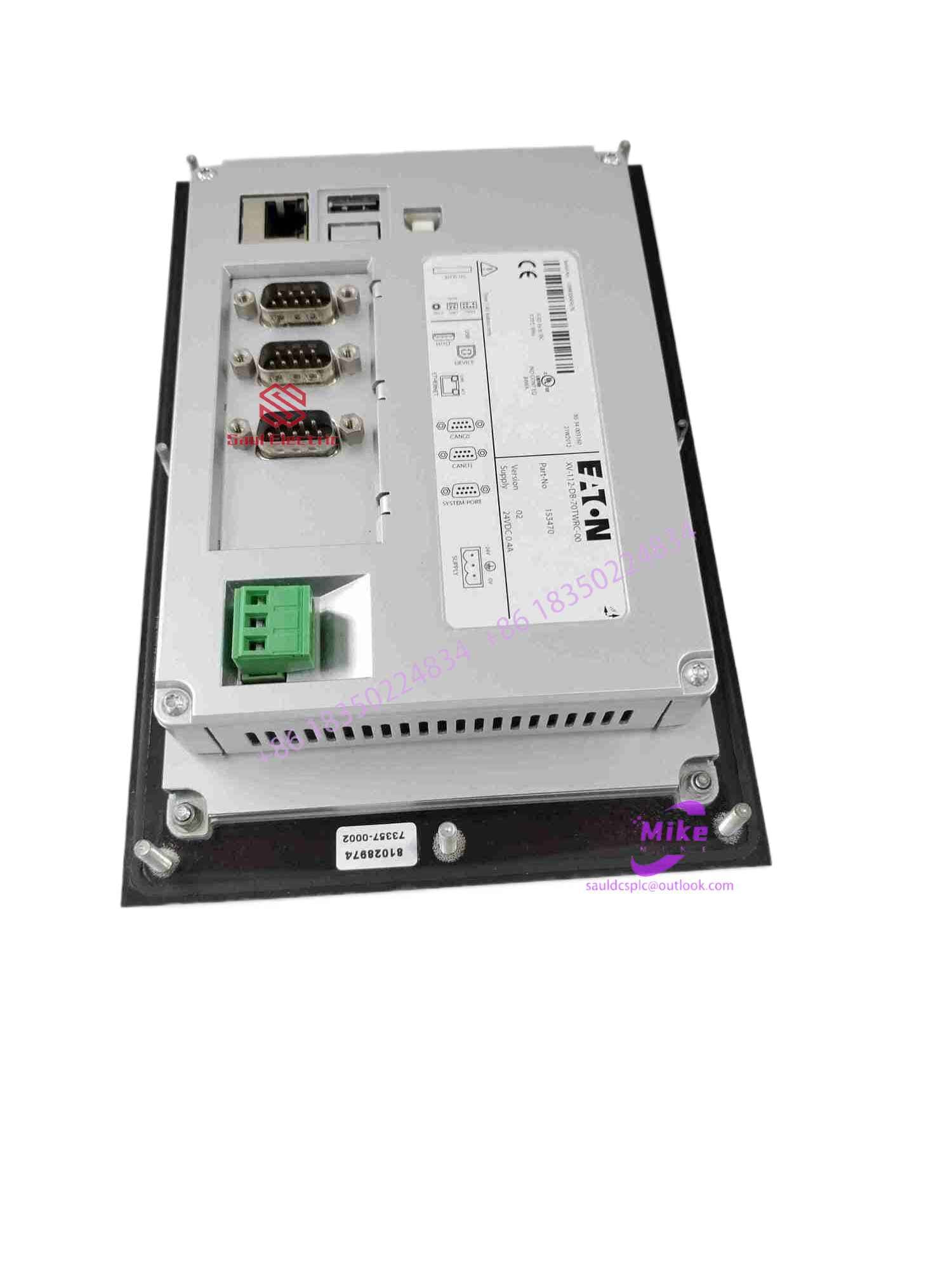

XV-112-DB-70TWRC-00 EATON Touch Screen
Functionally, it supports basic HMI functions such as data collection, trend analysis, and alarm management. It can communicate with on-site devices such as PLCs, frequency converters, and instruments through RS-232/RS-485/Ethernet to achieve real-time monitoring and parameter adjustment of the production process. The built-in Windows CE system provides a graphical user interface that supports multi protocol compatibility, making it easy to interface with devices from different brands.
Typical applications cover factory automation production line monitoring, building equipment management (air conditioning, lighting, access control, etc.), power system substation and distribution network monitoring, and other scenarios. It is one of the small and medium-sized HMIs in Eaton XV series with higher protection level and more comprehensive communication capabilities.
One sentence summary: XV-112-DB-70TWRC-00 is a 7-inch IP65 protection level resistive touch screen HMI in Eaton’s XV-100 series, with Windows CE as the system core, supporting RS-232/RS-485/Ethernet multi protocol communication, suitable for small and medium-sized industrial site monitoring scenarios that require environmental adaptability and communication flexibility.
